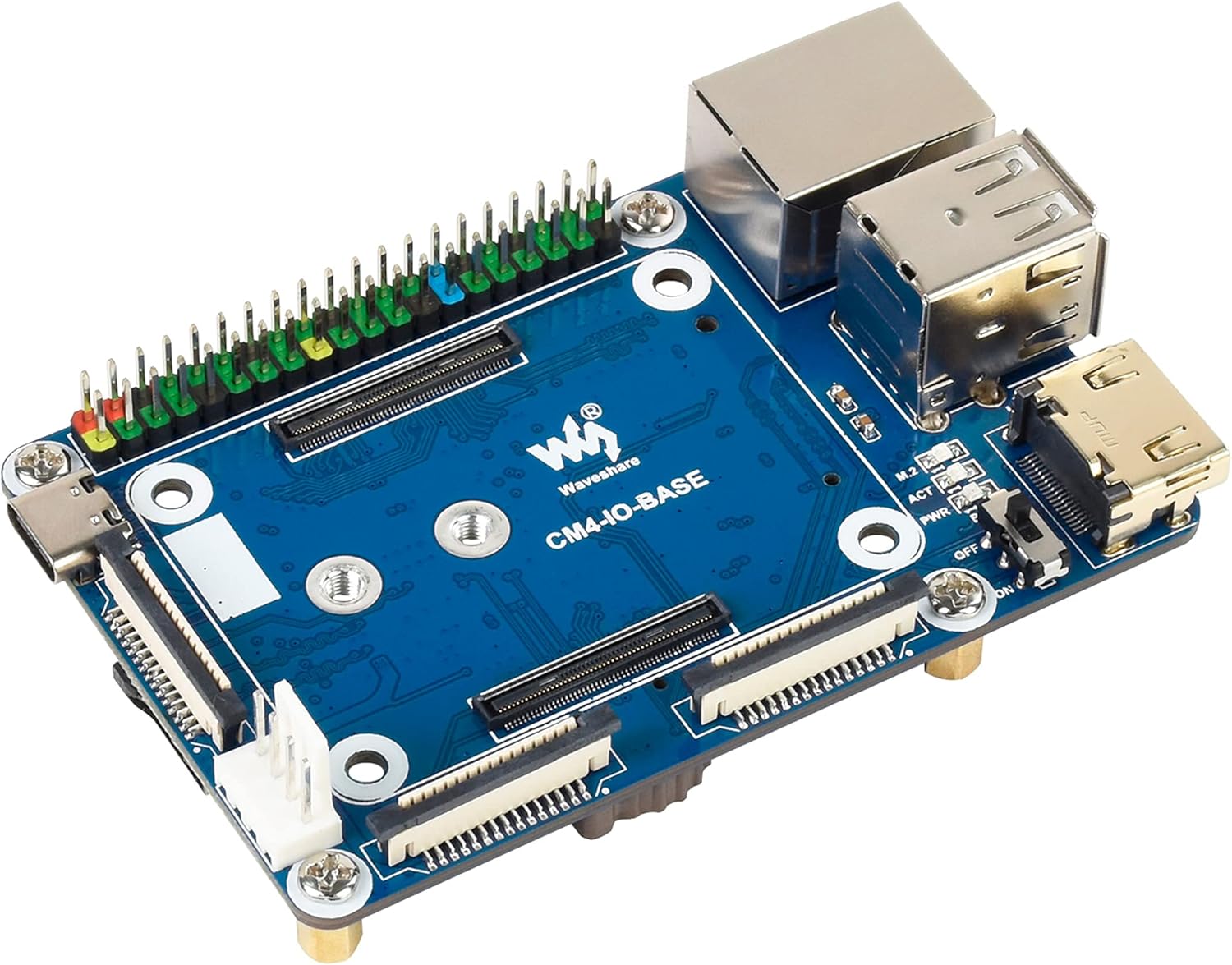

Mini Base Board for Raspberry Pi Compute Module 4 - Compact Evaluation

In this review of the Mini Base Board (B) for Raspberry Pi Compute Module 4, the bottom line is simple: this board is aimed at developers and integrators who need a compact, wellconnected carrier for testing or embedding a CM4 module. The reviewer found its combination of a standard CM4 socket, colorcoded Raspberry Pi 40PIN GPIO header and numerous onboard connectors makes setup and prototyping straightforward. The single biggest reason to buy is the breadth of exposed interfaces for a small form factor, which reduces the time spent wiring adapters and breakout cables.

Key Features

• Standard CM4 socket: Allows easy insertion and replacement of Compute Module 4 Lite or eMMC versions for development and deployment.
• 5V USB Type C power: Provides a convenient singlecable 5V/2.5A power option and can act as a USB slave for image flashing.
• Multiple onboard connectors: Exposes CSI, DSI, HDMI, USB and Gigabit Ethernet so common peripherals connect directly without separate adapters.
• Colorcoded 40PIN GPIO header: Matches Raspberry Pi pinouts visually to speed wiring and reduce errors when connecting sensors and HATs.
• Storage and expansion slots: Includes a Micro SD slot and an M.2 slot for NVMe or other modules when paired with compatible hardware.
• Onboard RTC and fan header: Adds realtime clock support and a fan header for basic cooling, useful in enclosed projects.

Who It's For

This board is best for engineers, makers and product developers who already plan to use a Raspberry Pi Compute Module 4 and need a compact carrier with many native ports exposed for rapid testing or prototype integration. The combination of CM4 socket, DSI/CSI and Ethernet makes it useful when building camera, display or networked embedded products.

It is not ideal for absolute beginners who expect a fully integrated single board computer ready to run out of the box; since the CM4 core is not included, buyers must supply a compatible Compute Module 4. Also, projects requiring a 12V fan should look elsewhere because this board only supports 5V fans.

Pros & Cons

Pros

• Compact carrier with a full set of I/O that removes the need for many external adapters.
• Colorcoded 40PIN header simplifies wiring for HATs and GPIO projects.
• Type C power that doubles as a USB slave port for easy image burning and device access.
• Onboard RTC and M.2 slot add practical expandability for embedded applications.

Cons

• Requires separate CM4 module purchase; not a complete single board computer by itself.
• Fan header supports only 5V fans, so 12V fans are incompatible without an external converter.

Specifications

Board type	Mini Base Board (B) for Compute Module 4
Power interface	5V/2.5A USB Type C (power or USB slave)
Module socket	Standard CM4 socket (Lite/eMMC compatible)
GPIO	Raspberry Pi 40PIN colorcoded header
Onboard connectors	CSI, DSI (DSI0), HDMI, USB, RJ45 Gigabit Ethernet, RTC, FAN
Storage/expansion	Micro SD card slot and M.2 slot (use correct screw lengths)

Our Verdict

The Mini Base Board (B) is a practical, spaceefficient carrier for anyone developing with the Raspberry Pi Compute Module 4. It exposes the key interfaces needed for camera, display and networked projects and includes useful extras like RTC and an M.2 slot. Buy this if you need a flexible prototyping or integration board and already have a compatible CM4; factor in the 5V fan limitation when planning thermal solutions.

Frequently Asked Questions

Does the board include the Compute Module 4?
No, the Mini Base Board is a carrier only and requires a separate Compute Module 4 (Lite or eMMC) to function.

Can the Type C port be used for flashing images?
Yes, the Type C interface can be used as a USB slave interface for burning the image or as the power supply input.

Will a 12V fan work on the onboard fan header?
No, this model supports only 5V fans; connecting a 12V fan could damage the fan or board unless an appropriate converter is used.
