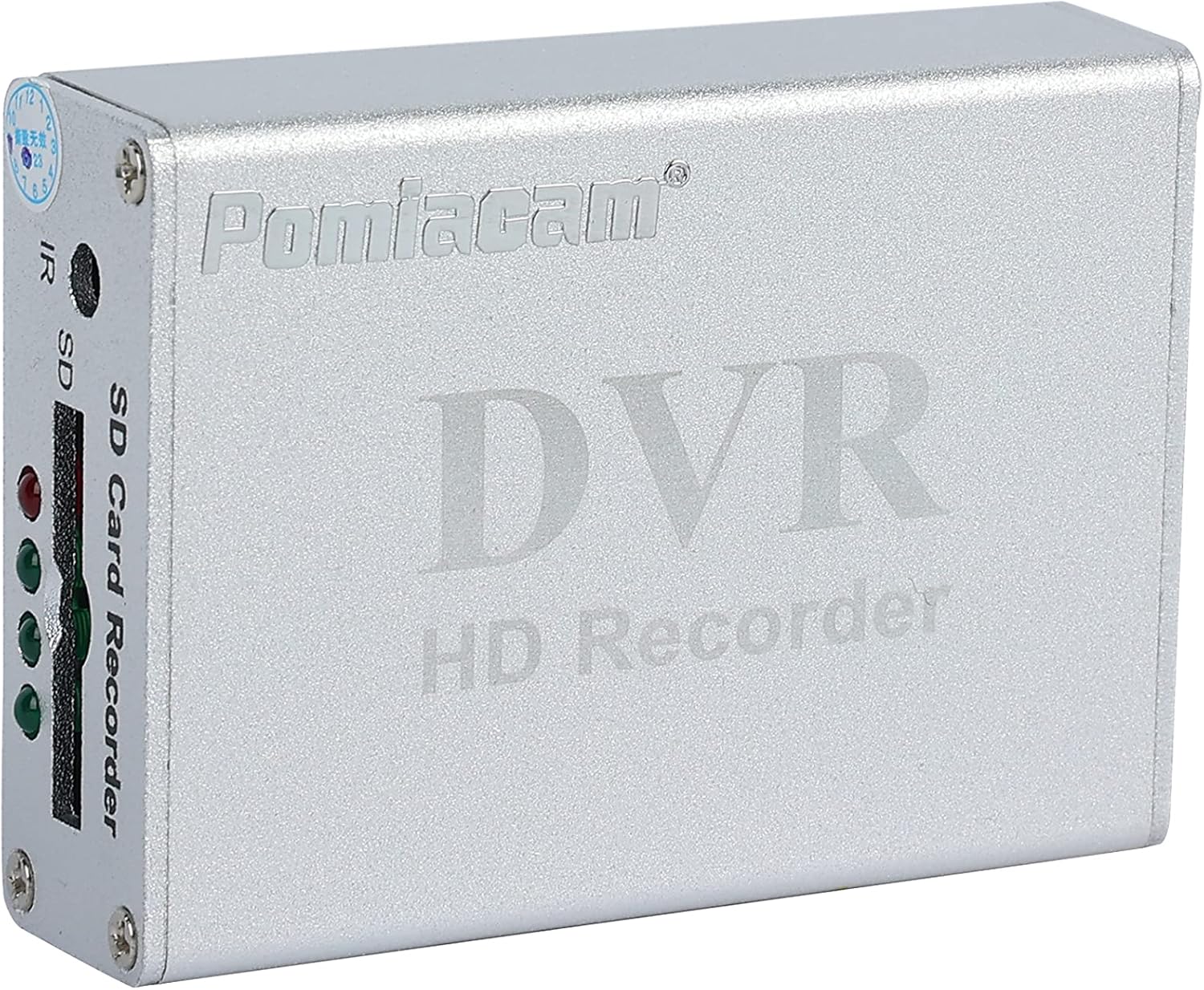

Mini DVR Digital Video Recorder SD Card 1CH CCTV Recorder - Compact

In this review the Mini DVR Digital Video Recorder is presented as a compact, purpose-driven recorder for anyone who needs simple, real-time recording from an analog CVBS NTSC or PAL camera or a set-top box. The reviewer finds the unit best for hobbyists, car owners and small surveillance projects because it records directly to an SD card using MPEG-4 at up to D1 (704x576) and 30fps, while offering low power draw and real-time timecode stamping. The core reason to buy is its practicality: a tiny, easy to use recorder that connects via AV-IN/AV-OUT and supports long capacity cards for continuous recording.

Key Features

• Real-time recording: Records video at up to D1 (704x576) and 30fps so captured footage is suitable for playback and evidence review.
• MPEG-4 compression: Uses MPEG-4/ASF video format with MP3 audio to keep files compatible and reasonably sized for long recording sessions.
• Direct SD card storage: Saves footage straight to an SD card and supports large capacity cards so users can manage continuous or scheduled recording without a PC.
• Flexible connectivity: AV-IN and AV-OUT allow easy connection to analog cameras, TV boxes, monitors and camcorders for live pass-through and capture.
• Low power consumption: Operates on a wide 5-35V range and runs at about 1W standby and 2W when recording, making it suitable for vehicle installations or low-power setups.
• Remote control support: IR remote lets users start/stop recording and take screenshots without accessing the unit physically.

Who It's For

The Mini DVR is aimed at DIYers, car owners and small business operators who need an affordable, no-frills way to capture analog video sources to an SD card. It is especially useful for recording from older CCTV cameras, analog camcorders, or TV set-top boxes when users want a portable recorder with time-stamped files.

It is less suitable for those who need networked streaming, advanced compression codecs, or high-resolution HD formats beyond D1. If you need cloud backup, PoE camera compatibility, or modern H.264/H.265 recording, a more feature-rich recorder would be a better fit.

Pros & Cons

Pros

• Compact and portable, making it easy to install in a vehicle or tight space.
• Records in real time with time stamp, useful for event logging and evidence.
• Wide voltage range and very low power draw are ideal for mobile or remote use.
• Supports large SD cards so long-duration recording is possible without frequent card swaps.

Cons

• Limited to MPEG-4/ASF and D1 resolution, so image quality and modern codec efficiency are not state of the art.
• No built-in network features or advanced file management, so files must be handled via the SD card.

Specifications

Device type	Mini SD card DVR recorder
Video compression	MPEG-4
Resolution	D1 (704x576) up to 30fps
Audio format	MP3
Inputs / Outputs	AV-IN, AV-OUT
Power	5-35V, ~1W standby, ~2W recording
Storage	SD card support up to 512GB (card not included)

Our Verdict

The Mini DVR Digital Video Recorder is a compact, practical choice for recording analog video sources to an SD card when portability, low power use and simple operation matter most. It offers reliable D1 capture, time stamping and large card support at a modest complexity level, making it good value for hobbyists, vehicle installs and small surveillance tasks that do not require modern codecs or networking.

Frequently Asked Questions

Does it work with NTSC and PAL cameras?
Yes, the unit supports CVBS NTSC and PAL analog signals for wide camera compatibility.

How large a card can it use?
It supports SD cards up to 512GB (SD card sold separately), enabling long continuous recording.

Can it be controlled remotely?
Yes, the DVR supports IR remote control to start and stop recording and to capture screenshots.
