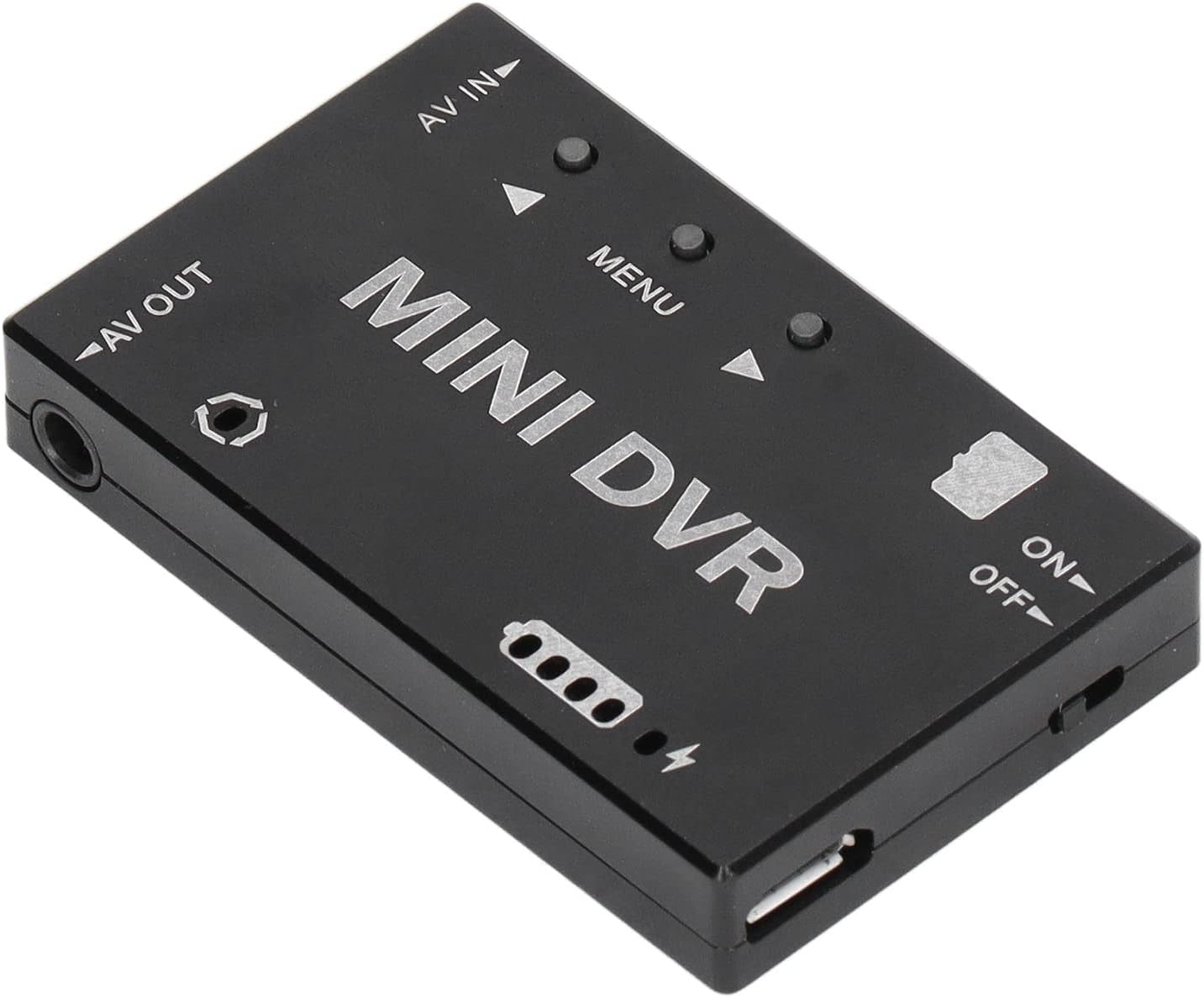

Mini FPV DVR Module NTSC PAL Switchable - Compact FPV Recorder

In this review the Mini FPV DVR Module is evaluated for hobby pilots and RC camera users who need a compact, self-contained video recorder. The standout reason to buy is its combination of switchable NTSC/PAL support and a built-in 3.7V 400mAh battery that enables truly portable FPV recording without carrying extra power or bulky electronics. The reviewer tested the module for basic FPV capture, playback via CVBS output, and found the small aluminum alloy body and straightforward controls make it a practical on-air solution for short flights and field recording.

Key Features

• Built-in battery: The integrated 3.7V 400mAh lithium ion cell provides around 1.5 to 2 hours of recording time, so pilots can record multiple short flights without external power.
• NTSC and PAL switchable: The unit accepts both NTSC and PAL video input formats, making it compatible with a wide range of cameras and regional systems.
• Small and durable housing: An aluminum alloy shell keeps weight low and offers better thermal stability and protection during normal use.
• Flexible recording formats: It records AVI files in VGA, D1, or HD 720p options and supports audio on or off for simple post-flight review.
• Universal USB charging: The common USB interface makes charging convenient in the field from packs or power banks and the module shows a four-level battery indicator.
• Playback and AV output: Built-in video decoder and encoder allow playback through CVBS output to a display so recorded clips can be reviewed without a computer.

Who It's For

This module is best for RC hobbyists, FPV racers and aerial photographers who want a lightweight, integrated DVR to capture flight video without adding a separate recorder or gimbal-mounted devices. Its small footprint and built-in battery suit micro and mini frames, and the NTSC/PAL switchability helps when swapping cameras or flying in different regions.

It is less suitable for long endurance aerial work or professional cinematography where longer run times, higher bitrates, or raw formats are required. Users needing robust waterproofing, advanced stabilization or multi-hour recording should look at purpose-built external recorders and larger battery solutions.

Pros & Cons

Pros

• Compact aluminum construction keeps weight down while protecting electronics.
• Built-in 400mAh battery and USB charging remove the need for an external power source for short sessions.
• Switchable NTSC/PAL input and CVBS output provide broad compatibility with cameras and displays.
• Multiple resolution options and MJPEG compression make files easy to play back and edit.

Cons

• Battery life is limited to about 1.5 to 2 hours, which may not suit extended flights.
• Storage requires a separate small memory card up to 32GB (Class 10 recommended), so capacity depends on user-supplied cards.

Specifications

Product Size	Approx. 53 x 33 x 9mm
Weight	Approx. 64g
Battery	Built-in 3.7V 400mAh lithium ion
Video Formats	NTSC and PAL switchable
Recording Resolutions	VGA 640x480, D1 720x480, HD 1280x720
Storage	Supports small memory card up to 32GB (Class 10 recommended)
Output	CVBS playback and AV output

Our Verdict

The Mini FPV DVR Module is a sensible, low-weight recorder for pilots who need an all-in-one solution for short flights and quick field review. Its aluminum shell, switchable NTSC/PAL support and built-in battery deliver a compact, compatible package at modest cost. Buy it if you want simple onboard recording and ease of use; look elsewhere if you need extended run times or professional video features.

Frequently Asked Questions

How long will the internal battery run?
The built-in 3.7V 400mAh battery typically provides about 1.5 to 2 hours of operation depending on recording settings and usage.

What memory card do I need?
Use a small memory card up to 32GB; a Class 10 (C10) card is recommended for reliable recording performance.

Can I play recorded video without a computer?
Yes, the module supports CVBS output for direct playback to a compatible display or monitor.
