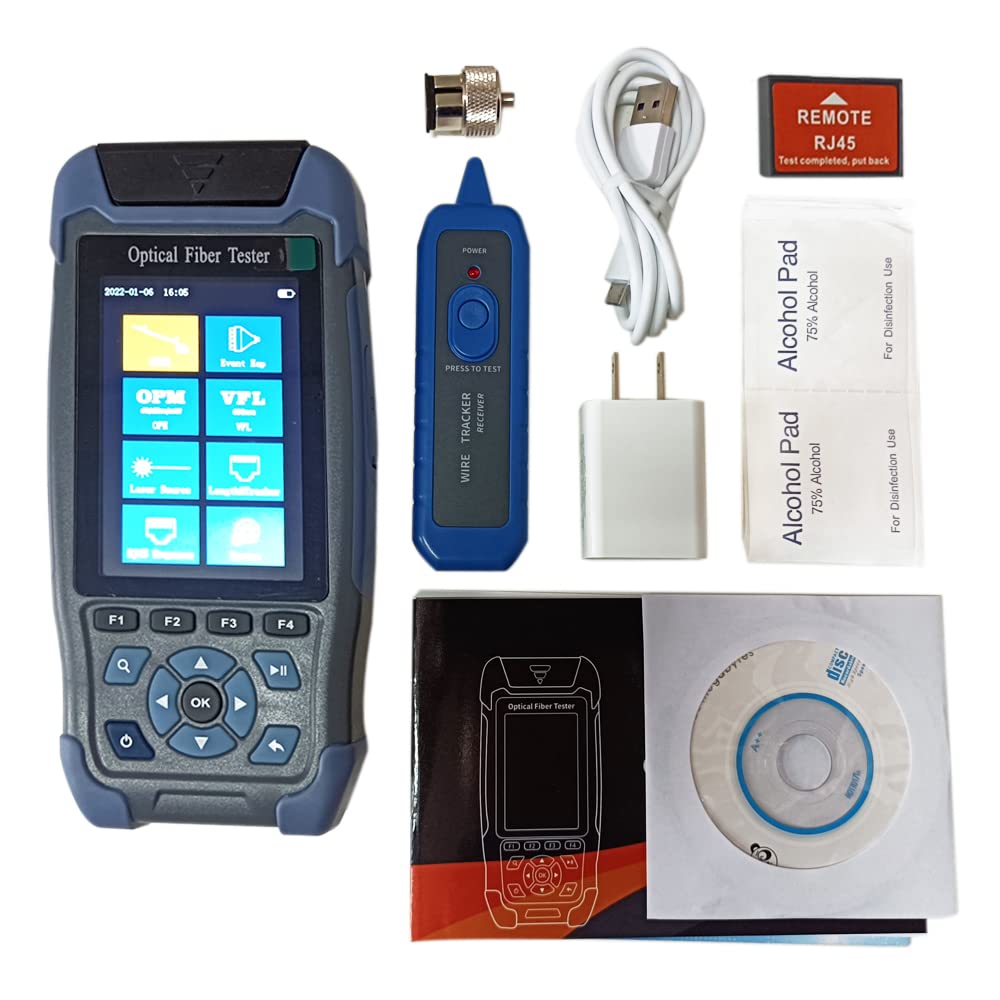

Mini-Pro 1310/1550nm SM OTDR Multi-Function Tester - Field Ready

In this review of the Mini-Pro 1310/1550nm SM OTDR Multi-Function Tester, the bottom line is clear: this handheld tester is aimed at technicians and small contractors who need an affordable, portable tool for FTTx and access network troubleshooting. The unit combines OTDR traces, a built-in power meter and VFL, RJ45 sequencer and cable tracker into one compact package, making it useful when identifying fiber breakpoints and measuring cable length in the field. The reviewer found it particularly compelling for basic fault location and routine maintenance where a high dynamic range is not required.

Key Features

• Dual wavelength OTDR: 1310nm and 1550nm testing covers standard single-mode fiber checks for typical access network work.
• Wide test range: 5m to 60km range lets technicians measure short drops and long feeder cables without changing instruments.
• Integrated tools: Built-in power meter, VFL and RJ45 sequencer reduce the need to carry separate testers for common field tasks.
• Clear display: The 3.5 in color screen shows traces and event maps on a compact device for quick on-site interpretation.
• Data handling: Micro USB, TF card support and supplied analysis software allow saving and later PC analysis of test results.
• Interchangeable connectors: FC/APC connector with SCST interchangeability offers flexibility for common connector types in the field.

Who It's For

The Mini-Pro OTDR is best suited to field technicians, small contractors and maintenance crews who need a portable, budget-conscious tool for routine FTTx and access network checks. Its combination of OTDR plus power meter and VFL means one instrument can handle typical tasks like breakpoint location, cable length measurement and loss estimation without multiple devices.

This is not aimed at labs or situations that require very high dynamic range or testing across splitters; the unit lists a dynamic range of 24dB/22dB and cannot reliably test splitter networks that demand more than ~42dB. Buyers needing the highest-precision loss budgets or splitter testing should consider higher-end OTDRs with larger dynamic range.

Pros & Cons

Pros

• Affordable multi-function package that combines OTDR, power meter and VFL for everyday field use.
• Good test span with 5m to 60km range for both short and long fiber runs.
• Simple data export via Micro USB and TF card plus included PC analysis software for reporting.

Cons

• Dynamic range (24dB/22dB) limits use with splitter networks and very high-loss links.
• Mixed feedback on absolute accuracy means professionals needing laboratory-grade results may want a reference instrument.

Specifications

Test wavelengths	1310nm / 1550nm
Test range	5m - 60km
Dynamic range	24dB (1310nm) / 22dB (1550nm)
Connector	FC/APC (interchangeable SCST)
Display	3.5 in color display (not touch)
Built-in tools	OTDR, power meter, VFL, cable tracker, RJ45 sequencer
Data interface	Micro USB, TF card, PC analysis software included

Our Verdict

The Mini-Pro 1310/1550nm SM OTDR is a practical, value-focused tester for field technicians who need a multi-function unit for FTTx and access network troubleshooting. It delivers essential OTDR functionality plus power meter and VFL in one handheld device, making it a cost-effective choice for routine fault location and cable length measurement, though teams needing high dynamic range or lab-grade accuracy should choose a higher-end model.

Frequently Asked Questions

Can this tester measure through a splitter?
The unit's dynamic range of 24dB/22dB is insufficient for most splitter networks that require more than ~42dB; it is not recommended for splitter testing.

How are test results saved and printed?
Results can be saved to internal storage or a TF card, transferred via Micro USB, and opened with the supplied PC analysis software for viewing and printing.

Is this device suitable for non-professionals?
It is designed for professional use; the manufacturer recommends users be familiar with OTDR testing. If unsure how to interpret traces, contact support or seek training before purchase.
