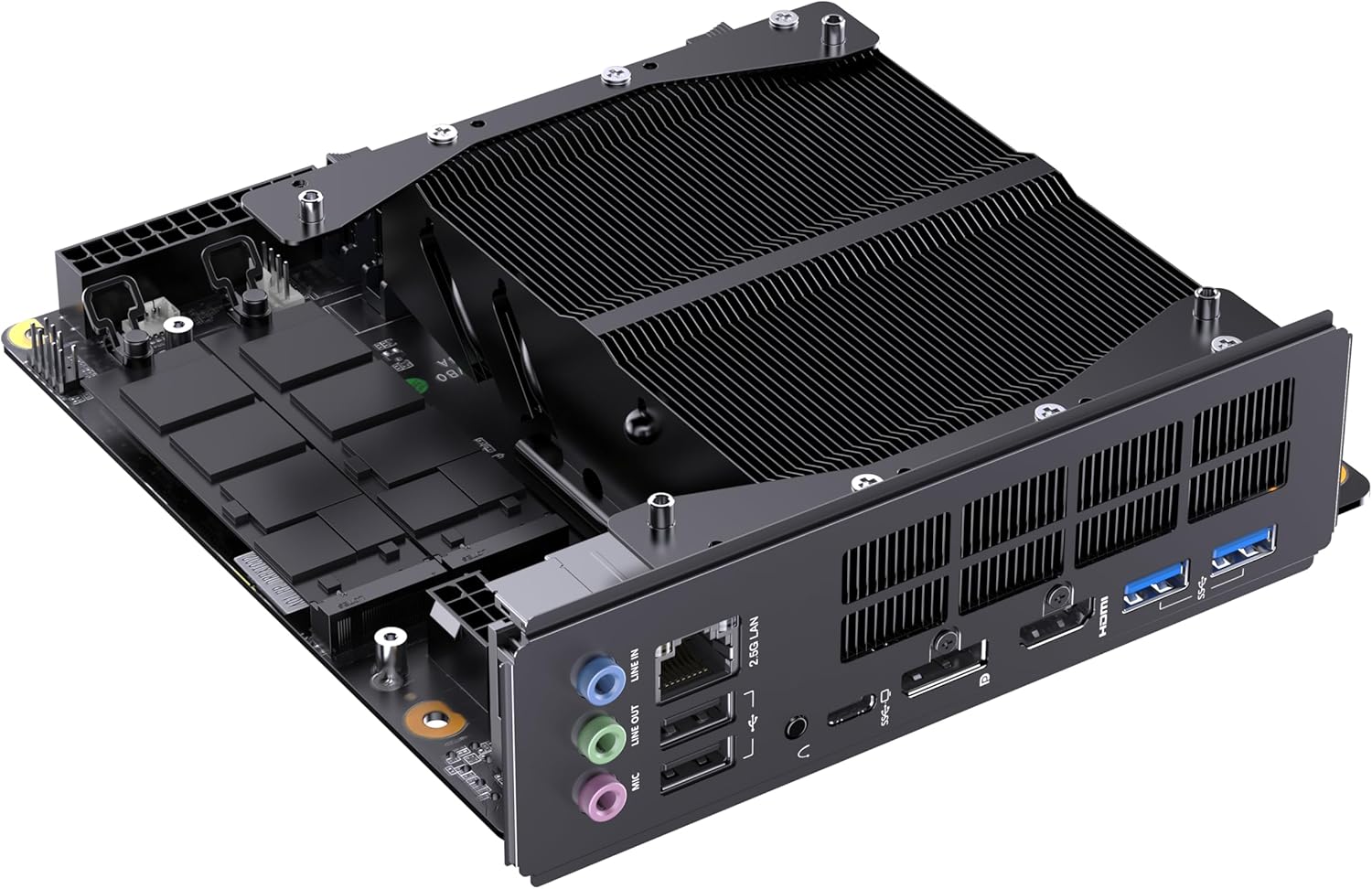

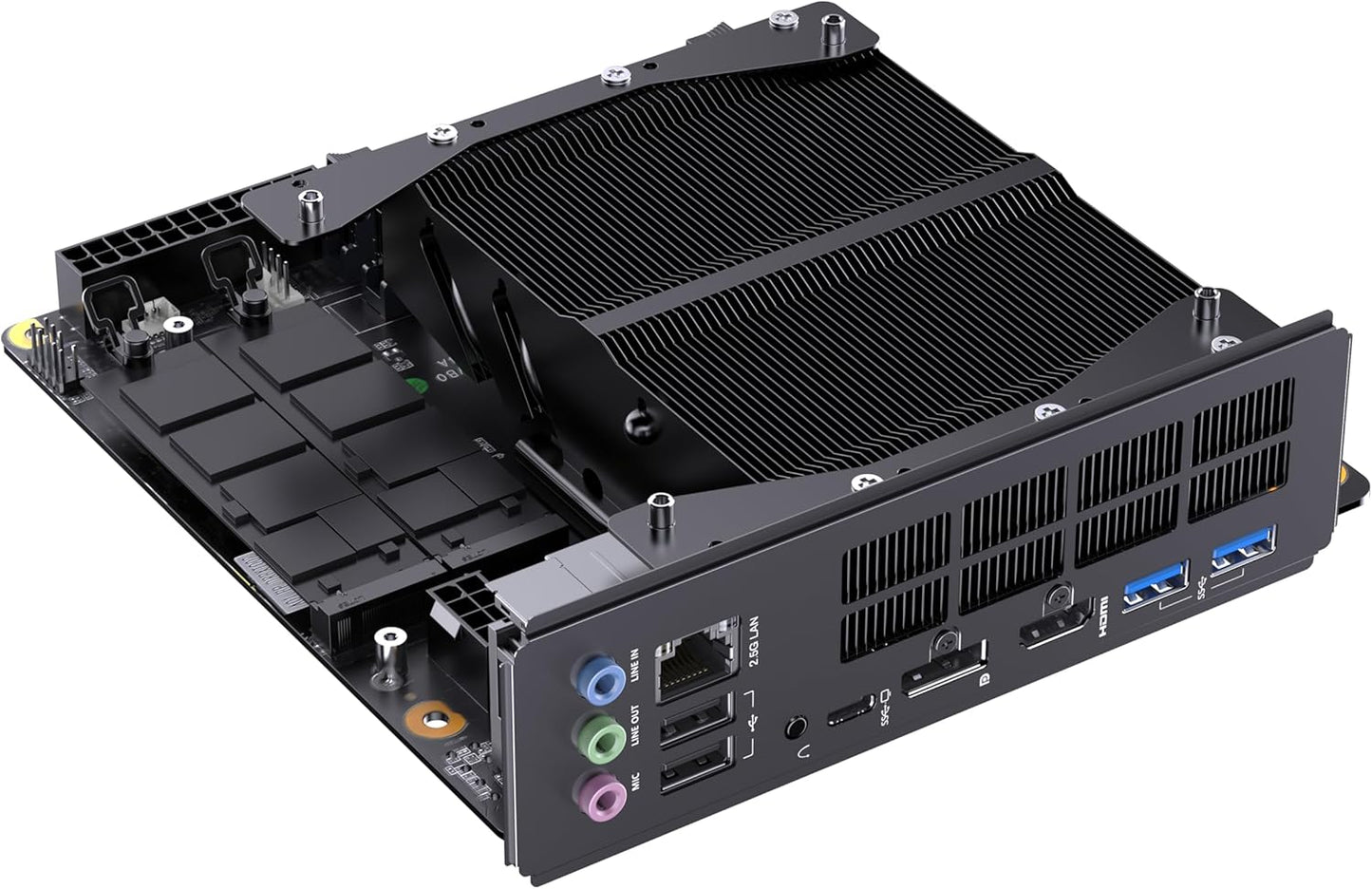

MINISFORUM BD795i SE X3D Motherboard AMD Ryzen 9 7945HX3D - Compact

In this review of the MINISFORUM BD795i SE X3D motherboard, the bottom line is simple: it is for users who need a compact ITX platform with a desktop-class AMD Ryzen 9 7945HX3D and strong integrated graphics performance. The board pairs a 16-core, 32-thread Zen 4 X3D CPU with Radeon 610M graphics and triple video outputs, making it an attractive option for creative workflows, light gaming, and multi-display productivity in small-form-factor builds where raw CPU speed and modern connectivity matter most.

Key Features

• AMD Ryzen 9 7945HX3D: Delivers high multi-threaded performance with 16 cores and up to 5.4GHz boost for demanding tasks and content creation.
• Integrated Radeon 610M: Provides capable on-chip graphics using RDNA 2 architecture so you can drive games and UHD displays without a discrete GPU.
• Triple video outputs: HDMI, DisplayPort and USB-C Alt DP let you run up to three screens simultaneously, including support for 8K@60Hz on USB-C and high-resolution 4K@60Hz displays.
• Expandable DDR5 memory: Two SODIMM slots support up to 96GB of DDR5 at up to 5200 MT/s, useful for memory-heavy applications and multitasking.
• Dual PCIe M.2 storage: Two M.2 2280 PCIe 4.0 x4 slots allow high-speed NVMe SSDs up to 4TB for fast boot and workload storage.
• 2.5G LAN: A 2.5Gbps RJ45 port improves network throughput for large file transfers and fast networked workflows.

Who It's For

This board is aimed at enthusiasts building a compact Mini PC or barebone system who need a very powerful CPU in an ITX footprint, especially content creators, streamers and power users who value multi-core performance and multiple display outputs. The integrated RDNA 2 graphics and triple-monitor support make it useful for editors and designers who do not require a discrete GPU.

It is not ideal for users who need multiple legacy SATA internal drives, since SATA ports are not provided, or for those who expect heavy overclocking headroom or long-term ruggedness in industrial environments. Buyers who require onboard WiFi or an included SSD cooler or WiFi card should plan to obtain those separately.

Pros & Cons

Pros

• Exceptional CPU performance from the Ryzen 9 7945HX3D for threaded workloads.
• Versatile video outputs including USB-C Alt DP with 8K@60Hz support for modern displays.
• Fast storage options with two PCIe 4.0 M.2 slots and support for high-capacity NVMe SSDs.
• 2.5GbE LAN improves network transfer speeds for large files and streaming.

Cons

• Lack of SATA ports limits use with multiple 2.5in or 3.5in drives without adapters.
• WiFi card and SSD cooler are not included, so additional purchases may be needed.

Specifications

Processor	AMD Ryzen 9 7945HX3D (16C/32T, up to 5.4GHz)
Integrated Graphics	AMD Radeon 610M (RDNA 2)
Memory	2x DDR5 SODIMM slots, up to 96GB, up to 5200 MT/s
Storage	2x M.2 2280 NVMe PCIe 4.0 x4 (up to 4TB)
Expansion	M.2 2230 Key E slot (for WiFi card)
Networking	1x 2.5Gbps RJ45 LAN port
Video Outputs	1x HDMI2.1 FRL, 1x DP1.4, 1x USB-C (Alt DP)

Our Verdict

The MINISFORUM BD795i SE X3D motherboard is a compelling compact platform for builders who need desktop-class multi-core CPU power and flexible modern I/O in an ITX form. It offers excellent value for creative professionals and power users who can work within its limitations on SATA and bundled accessories; buy it if you want maximum CPU and display capability in a small build.

Frequently Asked Questions

Does the board include WiFi?
The board has an M.2 2230 Key E slot for a WiFi card, but a WiFi card is not included.

Are SATA ports available?
No, the design does not provide onboard SATA ports, so plan NVMe or external storage solutions.

Can it drive multiple high-resolution monitors?
Yes, it supports three displays via HDMI, DisplayPort and USB-C, including 8K@60Hz on USB-C and 4K@60Hz on HDMI/DP.
