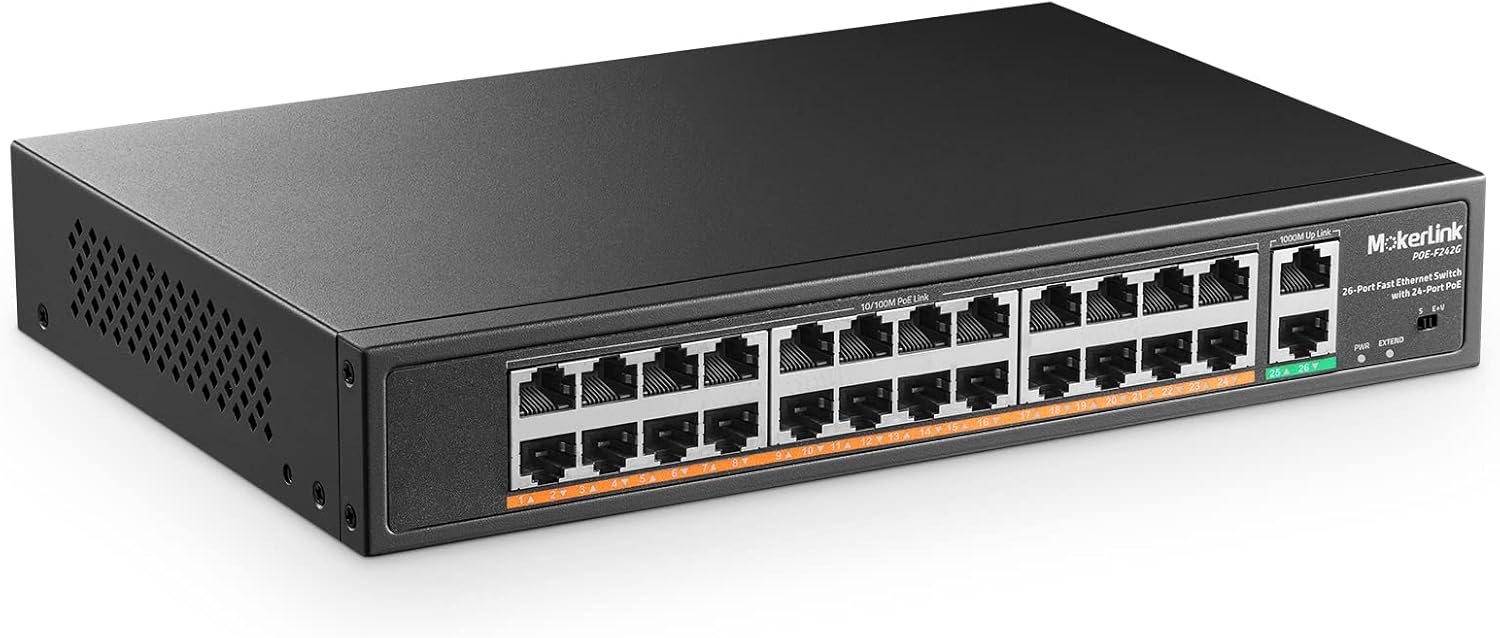

MokerLink 24 Port PoE Switch with 2 Gigabit Uplink Ports - High Power

In this review of the MokerLink 24 Port PoE Switch, the bottom line is straightforward: it is aimed at small to medium surveillance and network installations that need many powered ports and a lot of available power. The switch's single biggest selling point is its 400W high PoE output, which lets operators power many IEEE 802.3af/at cameras and access points without adding external injectors. It is an unmanaged, plug-and-play unit that keeps setup simple while offering two gigabit uplink ports for higher-bandwidth connections to routers or NVRs.

Key Features

• 26 ports total: Includes 24 PoE ports and 2 gigabit uplink ports to handle many endpoints and provide higher bandwidth for backbone connections.
• High PoE capacity: Built-in power supply delivers up to 400W total, allowing multiple devices to receive up to 30W per port under IEEE 802.3af/at.
• Unmanaged plug and play: Power detection and automatic negotiation make installation quick, with no VLANs or configuration required for basic deployments.
• Extend mode: A selectable extend function stretches PoE reach to about 250 meters at 10Mbps for longer camera runs while isolating traffic per port.
• Durable design and cooling: Metal housing, LED indicators, and industrial fans provide reliable operation and heat dissipation in rack or shelf installations.

Who It's For

This switch is best for installers and IT managers deploying HD IP cameras, multiple wireless access points, or other PoE devices in small commercial sites, retail stores, or multiroom residential systems. The large port count and 400W supply are especially useful where dozens of endpoints need simultaneous power without additional power injection hardware.

Users who require advanced managed features like QoS policies, SNMP monitoring, LACP link aggregation, or Layer 3 routing should look elsewhere. Likewise, anyone needing passive 24V PoE compatibility should note that this unit does not support passive 24V PoE and is designed for IEEE 802.3af/at devices.

Pros & Cons

Pros

• High total PoE budget supports many cameras and APs without extra power supplies.
• Two gigabit uplinks provide improved backbone bandwidth to routers or NVRs.
• Plug-and-play operation and power detection simplify installation for non-managed environments.
• Solid metal chassis and active cooling help keep the unit running reliably under load.

Cons

• Unmanaged design means no advanced switching features for networks that need monitoring or traffic shaping.
• Fan noise varies by unit; some users report it is quiet while others find it louder than expected in quiet rooms.

Specifications

Ports	24 PoE ports (10/100Mbps) + 2 gigabit uplink ports (10/100/1000Mbps)
PoE Standard	IEEE 802.3af/at
Total PoE Power	400W maximum, up to 30W per port
Operation	Unmanaged, plug and play with power detection
Extend Mode	Extend to 250 meter at 10Mbps per port when enabled
Chassis	Durable metal housing with industrial fans and LED indicators

Our Verdict

The MokerLink 24 Port PoE Switch is a practical, cost-effective choice for installations that need many powered ports and a high power budget without the complexity of managed switches. It offers strong power output and convenient plug-and-play operation, making it good value for surveillance and wireless deployments, while those needing advanced network management will want a managed alternative.

Frequently Asked Questions

Does this switch support passive 24V PoE?
No. This switch supports IEEE 802.3af/at standards only and does not provide passive 24V PoE.

Can the uplink ports be used for high-bandwidth NVR connections?
Yes. The two gigabit uplink ports run at 10/100/1000Mbps and are intended for backbone links such as routers or NVRs.

How far can PoE run in extend mode?
When extend mode is enabled the PoE ports can reach up to 250 meters at 10Mbps, useful for long camera cable runs with isolated traffic.
