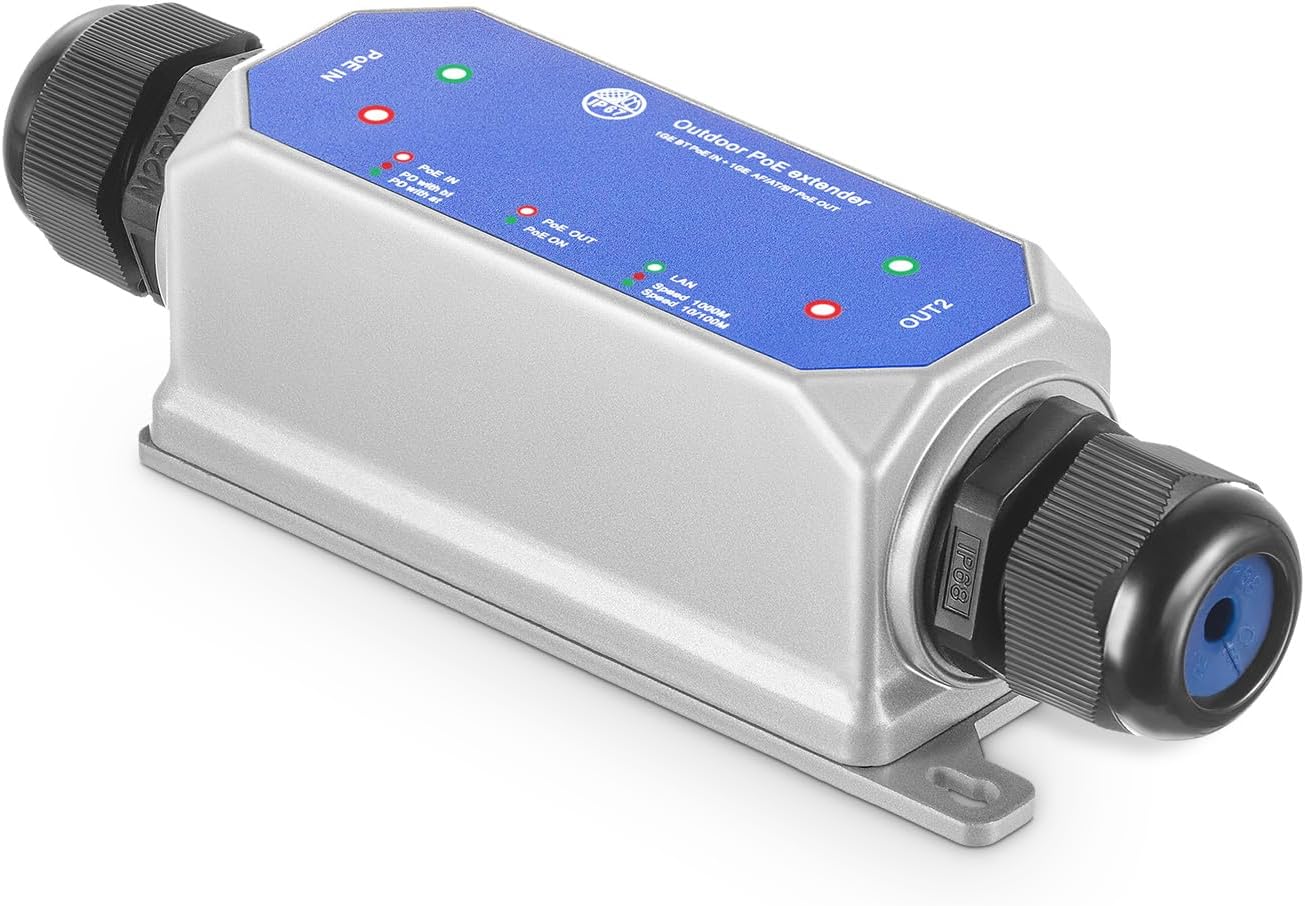

MokerLink IP67 Outdoor 2 Port Gigabit PoE Extender - Rugged Waterproof

In this review the MokerLink IP67 Outdoor 2 Port Gigabit PoE Extender is presented for installers and small-site IT teams who need to extend Power over Ethernet outdoors without extra power supplies. The bottom line: it is a straightforward, rugged PoE repeater that passes a single PoE input to one Gigabit output while protecting the cable and connector with an IP67 metal housing. It is ideal when a single extra PoE hop or extended run is required and the biggest reason to buy is the combination of IEEE 802.3af/at/bt support and a weatherproof enclosure that works straight out of the box.

Key Features

• 2 Gigabit PoE Ports: One PoE In and one PoE Out at 10/100/1000Mbps let you extend both power and data to a remote device with full gigabit throughput where supported.
• Wide PoE Support: Compatible with IEEE 802.3af/at/bt, it accepts up to 120W input and can deliver up to 90W output, which covers a broad range of access points, cameras and phones.
• IP67 Weatherproofing: The industrial metal housing and waterproof cap protect the RJ45 connection and internal cabling from rain, dust and snow for reliable outdoor installation.
• Plug & Play: The unmanaged design requires no configuration and automatically detects powered devices so installations are fast and simple.
• PoE Passthrough and Cascade: Supports passthrough and up to three-level cascading so you can increase PoE coverage without additional power adapters.
• Flexible Cabling: Supports 100BASE-TX over Cat5 up to 150 m and 1000BASE-TX over Cat6 up to 100 m, giving installers options depending on speed and run length.

Who It's For

This product is aimed at network installers, security camera integrators and small business IT staff who need a compact weatherproof solution to extend PoE outdoors or in semi-exposed areas like garages and attics. The unit is especially useful where running an AC outlet is impractical and a single PoE pass-through or one extra hop is required.

Those who need many Ethernet ports, managed switching features, or multi-gig aggregation should look elsewhere; this is an unmanaged two-port extender meant to supplement existing PoE infrastructure rather than replace a full outdoor switch or a managed access point controller.

Pros & Cons

Pros

• Rugged IP67 metal enclosure that protects the cable and connector for outdoor use.
• Supports IEEE 802.3af/at/bt with high input and output power allowing 90W output for power-hungry devices.
• Plug-and-play installation with PoE detection and no external power adapter required.
• Compact wall-mount design that fits tight locations and supports cascading to extend coverage.

Cons

• Only two ports (1 in, 1 out) so it is not a replacement for a multiport outdoor switch when multiple endpoints are required.
• Performance depends on cable quality and run length; gigabit requires Cat6 and shorter runs.

Specifications

Ports	2 PoE ports: 1 PoE In, 1 PoE Out
Data Speed	10/100/1000Mbps (Gigabit)
PoE Standard	IEEE 802.3af/at/bt
Power	Input Max 120W, Output Max 90W, Voltage 44-57 Vdc
Environmental Rating	IP67 outdoor waterproof metal housing with waterproof cap
Cabling	100BASE-TX Cat5 up to 150 m; 1000BASE-TX Cat6 up to 100 m
Mounting	Wall mount, small metal case

Our Verdict

The MokerLink IP67 PoE Extender is a practical, cost-effective tool for extending PoE to one additional device outdoors without running separate power. It is best for installers who need a durable, plug-and-play PoE passthrough in exposed locations and value IP67 protection and broad IEEE 802.3af/at/bt support. For single-hop extensions and modest site requirements it offers good value compared with installing new power outlets or a larger outdoor switch.

Frequently Asked Questions

Can this extender power a high-draw device like a PTZ camera?
Yes; the unit supports up to 90W output under IEEE 802.3af/at/bt, so many higher-power PoE devices such as PTZ cameras will be powered if the source can supply sufficient input power.

Is the ethernet connection fully waterproof?
The metal housing and waterproof cap provide IP67 protection for outdoor use, and the cable is routed through the cap before making the RJ45 connection to maintain sealing.

Do I need any configuration or an external power adapter?
No configuration or external power adapter is required; the device is unmanaged and powered by incoming PoE, with automatic device detection.
