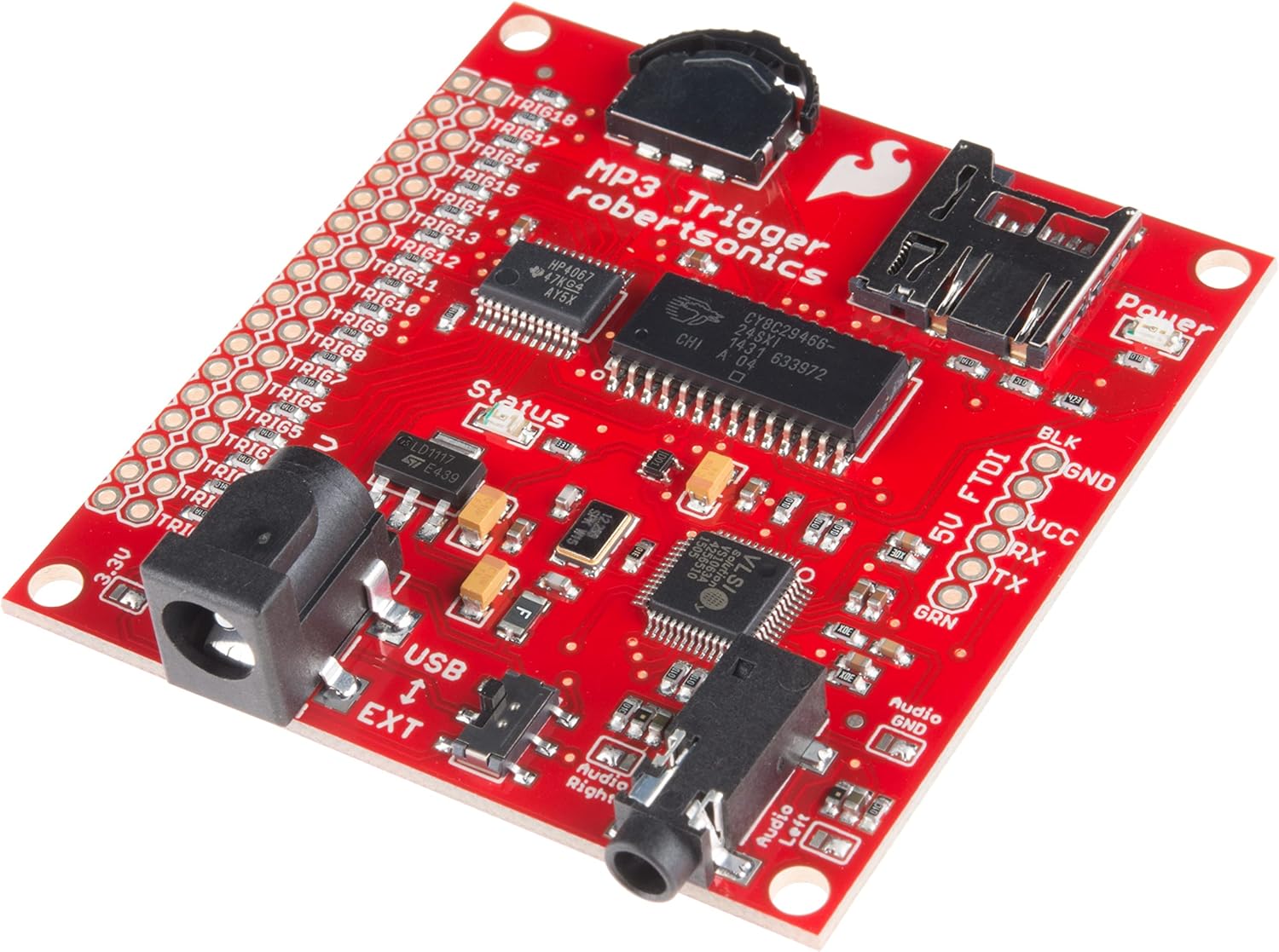

MP3 Trigger - 18-Input Embedded MP3 Player for Projects

In this review of the MP3 Trigger board the bottom line is simple: it is a compact, project-focused audio engine for makers who need reliable, low-power MP3 playback and flexible triggering. The reviewer found it most valuable when embedding sound into interactive installations, props, or small-scale instruments because of its 18 hardware trigger inputs and robust serial control that together enable both simple standalone use and deeper integration with microcontrollers. The board's support for FAT16/FAT32 microSD cards and up to 192 kbps stereo playback makes it a practical choice for many DIY audio tasks.

Key Features

• 18 trigger inputs: Hardware pins let a creator trigger specific MP3s by pulling inputs to ground for reliable, low-latency playback.
• Full-duplex serial control: Real-time volume adjustments and remote triggering over serial let it act as a controllable audio module in larger systems.
• microSD playback: Reads FAT16 or FAT32 formatted microSD cards so users can manage tracks with familiar file naming on standard cards.
• Transport controls and navigation: On-board navigation switch gives simple local access to browse and play tracks without a host device.
• 192 kbps stereo support: Optimized code can deliver near-CD quality stereo playback for clear audio in installations and props.
• Flexible outputs: Stereo 1/8 in headphone jack compatible with headphones or line inputs using standard cables or pigtails.

Who It's For

The MP3 Trigger is aimed at hobbyists, prop builders, and interactive installation artists who need multiple discrete triggers and dependable serial control for synchronized audio. It suits makers who want a hardware-first solution with minimal software overhead and straightforward microSD-based workflow.

It is less suited to users who need integrated amplification, wireless streaming, or high-end studio processing; those projects require a powered speaker solution or dedicated audio interface. Likewise, users expecting a plug-and-play consumer device with an app interface should look elsewhere.

Pros & Cons

Pros

• Multiple hardware triggers allow tactile or sensor-driven playback without a microcontroller.
• Serial control gives precise, low-latency volume and track selection when integrated into larger systems.
• Supports common microSD formats and a wide range of cards for easy file management.
• Compact, low-power design fits into props and installations with limited space.

Cons

• Does not include power supply, microSD card, or cables, so additional components are required to get started.
• No on-board amplifier or speaker output means a separate amp or headphones are needed for louder playback.

Specifications

Playback format	MP3 from microSD (FAT16/FAT32)
Trigger inputs	18 external pins (pull to ground)
Serial control	Full-duplex serial port for remote triggering and volume
Output	Stereo 1/8 in (3.5mm) headphone jack
Max supported bitrate	Up to 192 kbps stereo (optimized)
Core components	Cypress PSoC microcontroller and VLSI VS1063 codec
Card support	SDSC microSD and SDHC micro-SD cards

Our Verdict

The MP3 Trigger is a practical, affordable module for makers who need multiple hardware triggers and reliable serial control for embedded audio. It delivers good stereo playback quality and flexible integration options, making it great value for projects that can provide their own power, storage card, and amplification.

Frequently Asked Questions

What type of microSD card do I need?
You can use FAT16 SDSC cards or FAT32 SDHC micro-SD cards; optimized setups can achieve 192 kbps stereo playback.

How do I trigger tracks remotely?
Use the full-duplex serial port to send remote trigger and transport commands for up to 256 tracks and to control volume in real time.

Is a power supply included?
No, the board requires an external power source such as a 9V wall adapter and it does not include a microSD card or audio cables.
