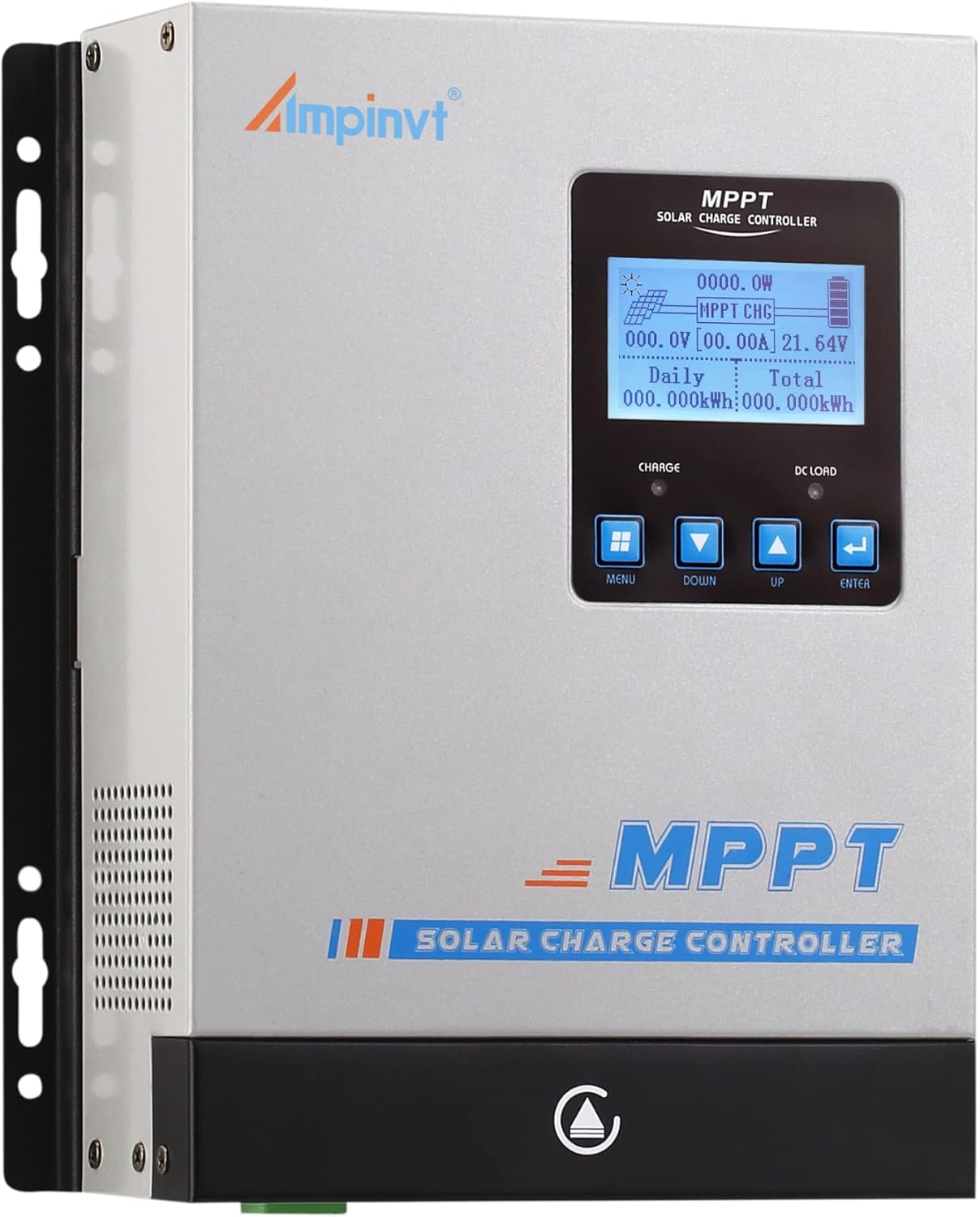

MPPT Solar Charge Controller 80A 12V-48V Auto - High Efficiency

Our review of the MPPT Solar Charge Controller 80A finds it best suited for homeowners and small commercial users who need a robust, efficient regulator for multi-chemistry battery banks. The unit stands out for its near 99% maximum efficiency and broad compatibility with sealed, gel, flooded, and lithium batteries, making it a versatile choice when migrating or mixing battery types. In this review the controller's automatic 12V/24V/36V/48V detection, high PV input limit, and RS485 communication capability are the single biggest reasons to consider it for off-grid or backup power systems.

Key Features

• High MPPT efficiency: Up to 99% conversion efficiency improves harvested energy from panels so battery charging is faster and more complete.
• Wide battery compatibility: Works with sealed, gel, flooded, and lithium batteries so it fits most existing battery banks without modification.
• Automatic voltage detection: Auto detects 12V, 24V, 36V, or 48V battery systems, simplifying installation and reducing setup errors.
• High PV input tolerance: 150V maximum PV input and MPPT ranges allow use with high-voltage array designs for larger solar arrays.
• Remote monitoring ready: RS485 port supports optional Wi-Fi monitoring for real-time app access on Android and iOS when the adapter is added.
• Comprehensive protection: Built-in protections for overcharge, over-discharge, overheat, reverse connection, overload, and short-circuit increase system reliability.

Who It's For

The controller is a solid choice for homeowners, RV and boat owners, and small commercial operators who run 12V through 48V battery systems and want an efficient MPPT regulator that can handle larger panel arrays. Installers who need a flexible device that accepts sealed, gel, flooded, or lithium batteries will appreciate the automatic voltage selection and temperature compensation.

It is less suited to users who require built-in Wi-Fi out of the box, since remote monitoring requires purchase of an additional adapter, and those needing integrated inverter functions should look for combined inverter/charger units instead.

Pros & Cons

Pros

• Very high MPPT efficiency recovers more energy from varied light conditions.
• Supports multiple battery chemistries and four system voltages for broad compatibility.
• High PV input and MPPT operating ranges permit large array configurations per system voltage.
• RS485 communication enables future upgrade to Wi-Fi monitoring for app-based oversight.

Cons

• Wi-Fi remote monitoring requires an additional purchase, so out-of-the-box wireless monitoring is not available.
• Advanced users may miss integrated inverter features if they want an all-in-one device.

Specifications

Rated charge current	80A
Battery systems	Automatic 12V / 24V / 36V / 48V
Max PV input voltage	150Voc
Solar panel suitability	1140W (12V); 2260W (24V); 3420W (36V); 4540W (48V)
Battery types supported	Sealed, Gel, Flooded, Lithium
Communication	RS485 (Wi-Fi adapter available separately)
Protections	Overcharge, Over-discharge, Overheat, Reverse, Overload, Short-circuit

Our Verdict

The MPPT Solar Charge Controller 80A is a dependable, efficient regulator for users who need flexible battery compatibility and high PV input capacity. It delivers strong value for off-grid and backup power setups thanks to near 99% efficiency and robust protections, though buyers should budget for the optional Wi-Fi adapter if they want remote monitoring.

Frequently Asked Questions

Does it work with lithium batteries?
Yes, the controller is compatible with lithium battery banks as well as sealed, gel, and flooded types.

Can I monitor the controller remotely?
Remote monitoring is possible via RS485 but requires a separate Wi-Fi adapter to enable app connectivity on Android or iOS.

What is the maximum PV array size?
Maximum panel suitability varies by system voltage: 1140W for 12V, 2260W for 24V, 3420W for 36V, and 4540W for 48V.
