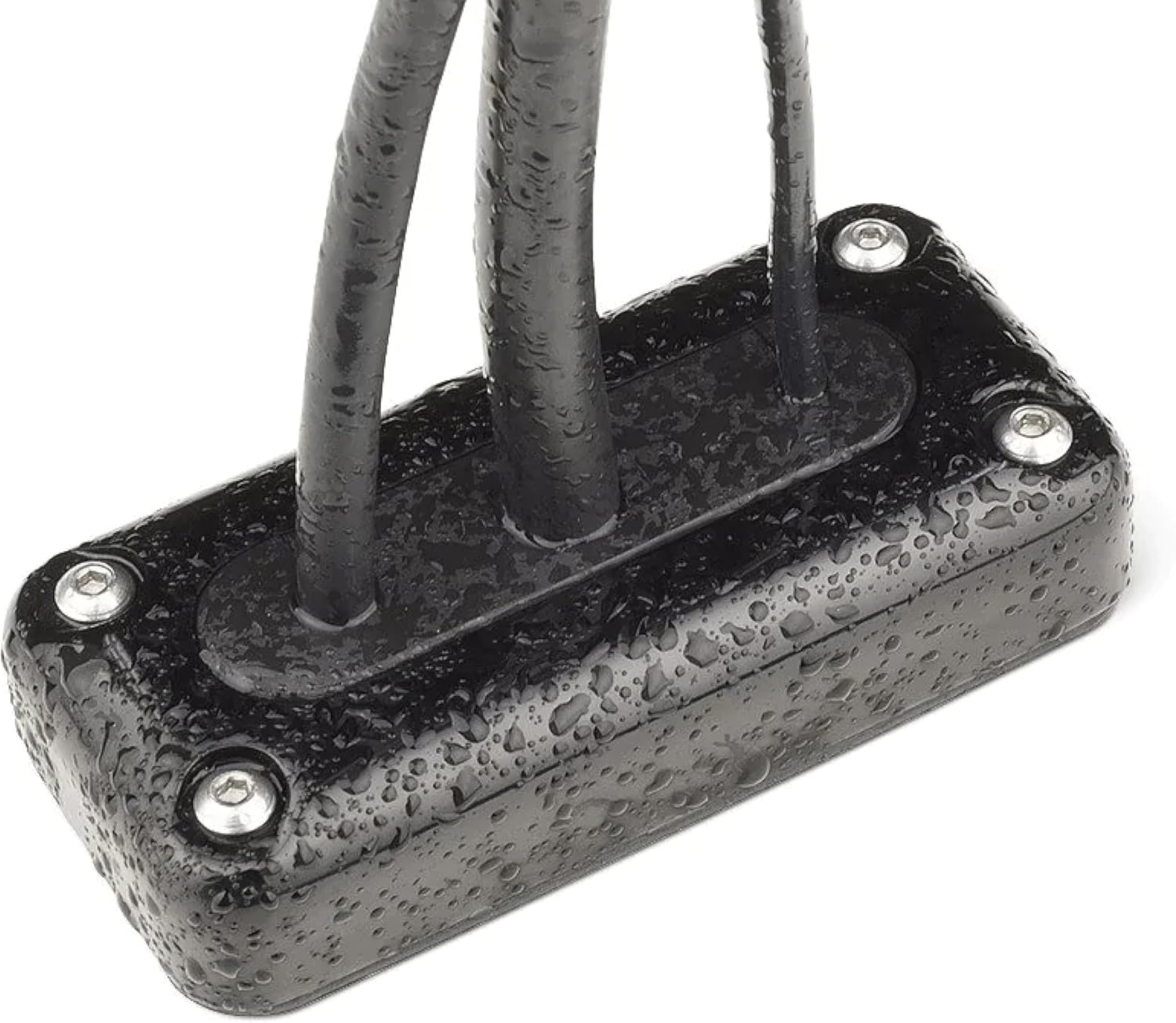

Multi-Cable Rectangle Cable Gland - Waterproof Marine Seal

Our review of the Multi-Cable Rectangle Cable Gland finds it best suited for boat owners, solar installers, and anyone who needs a tidy, watertight way to route multiple cables through a deck or bulkhead. The single biggest reason to buy is its practical split-seal design combined with marine-grade materials, which lets users install cables without removing connectors while keeping the entry point IPX6/IPX7 rated for wet conditions. For straightforward, reliable cable routing the gland delivers a clean, low-profile result with easy drilling guidance and a durable seal.

Key Features

• Waterproof Cable Routing: Provides a secure, waterproof seal for cables with an IPX6 and IPX7 rating, protecting installations from spray and brief immersion.
• Marine-Grade Materials: Available in durable plastic or 316 stainless steel to resist corrosion in harsh marine environments.
• Wide Compatibility: Accommodates cable diameters up to 0.5 in and connectors up to 0.67 in, making it suitable for most common cables and plugs.
• No Connector Removal Required: The split seal design allows installation around existing cables and connectors, saving time and avoiding disassembly.
• Low-Profile Design: The compact shape reduces visual bulk and improves impact resistance where space and aesthetics matter.
• Drill Guides Included: Includes four brass drill tubes (6, 8, 10, 12 mm) for precise hole placement and easier installation.

Who It's For

The gland is ideal for boat builders, marine equipment installers, and homeowners running multiple electrical lines through wet areas, including solar cabling on decks. Its ability to accept connectors without removal and the included drill tubes make it a practical choice for retrofits and new builds where access behind the panel is limited.

Those who need large multi-conductor bundles beyond the stated diameter limits or who require custom bulkhead fittings for very high-voltage or specialty connectors should look into larger custom glands or panel feedthroughs instead.

Pros & Cons

Pros

• Provides reliable waterproof protection with IPX6/IPX7 ratings for wet and marine environments.
• Split-seal design lets you install without removing cable connectors, speeding up retrofit work.
• Durable options in plastic or 316 stainless steel resist corrosion and maintain a neat appearance.
• Brass drill tubes included for accurate, clean hole drilling and placement.

Cons

• Maximum cable and connector sizes are limited to 0.5 in and 0.67 in respectively, so very large cables will not fit.

Specifications

Model type	Multi-cable rectangle gland
Materials	Durable plastic or marine-grade 316 stainless steel
Max cable diameter	0.5 in (10.6 mm)
Max connector diameter	0.67 in (17 mm)
Waterproof rating	IPX6 and IPX7
Included accessories	Base gasket and four brass drill tubes (6, 8, 10, 12 mm)

Our Verdict

The Multi-Cable Rectangle Cable Gland is a practical, cost-effective solution for waterproof cable routing on boats, solar installations, and other damp locations. Its split-seal convenience, marine-grade options, and clear drilling guides make it a solid choice for retrofit and new installations, offering good value where cable and connector sizes fall within the listed limits.

Frequently Asked Questions

Can the gland be used without removing cable connectors?
Yes. The split-seal design specifically allows installation around existing connectors so you do not need to disconnect them.

What cable sizes will it accept?
It accepts cables up to 0.5 in (10.6 mm) diameter and connectors up to 0.67 in (17 mm).

Is it suitable for marine use?
Yes. It is available in plastic or 316 stainless steel and offers IPX6 and IPX7 protection for marine conditions.
