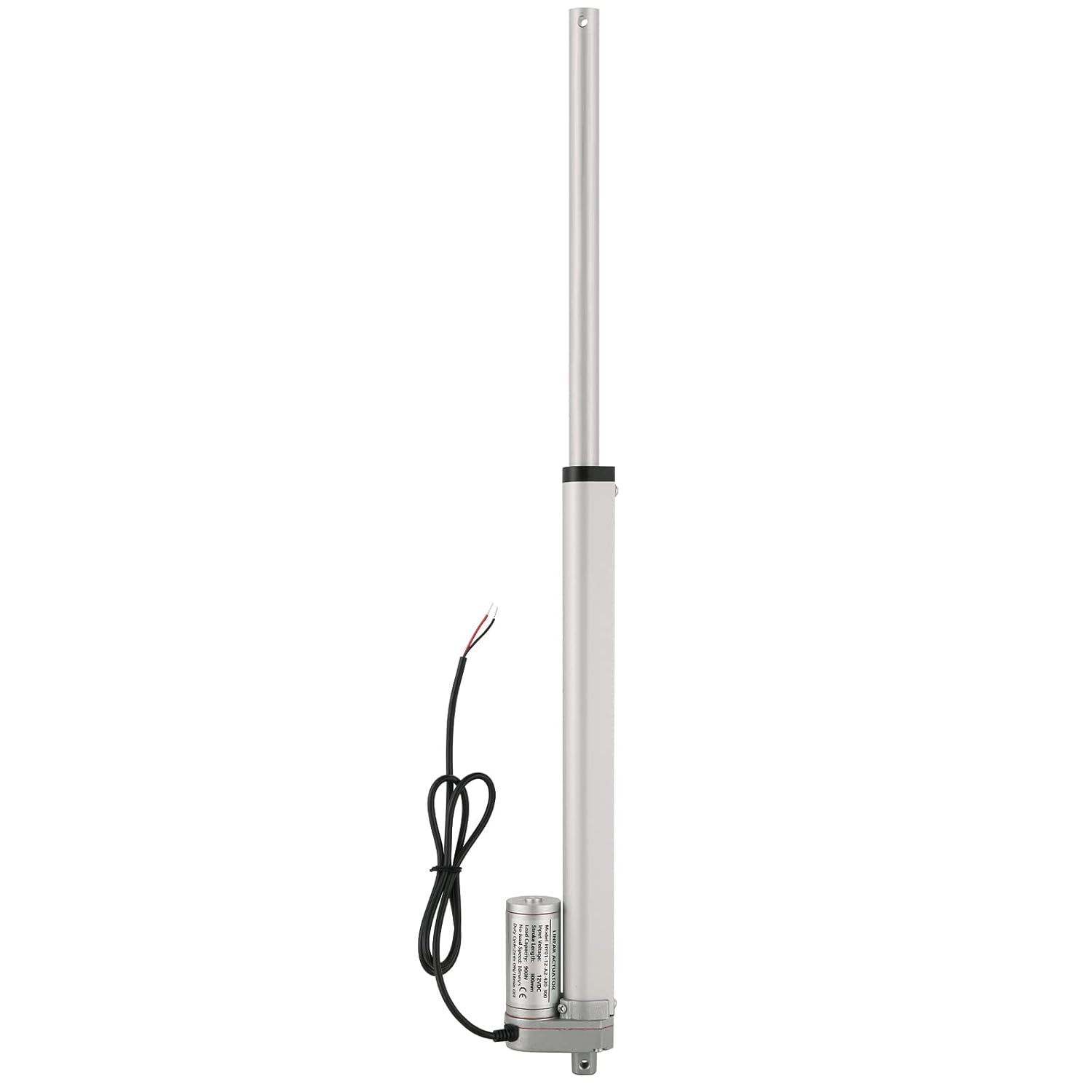

MYFULLY Electric Stroke Linear Actuator 12in 12V - Heavy Duty Lift

In this review of the MYFULLY Electric Stroke Linear Actuator the bottom line is simple: this 12V, 12'in stroke actuator is best for DIYers and small commercial users who need dependable, heavy duty linear motion with built-in safety. It impressed with a solid aluminum alloy build, an effective self-locking limit switch arrangement that reliably stops travel, and a quiet motor under 50dB. The reviewer found it particularly useful where a rugged, IP54-protected unit that can push or pull around 900N (about 202lbs) is required for doors, panels, or mechanical lifts.

Key Features

• Heavy duty construction: The aluminum alloy housing provides a durable, corrosion-resistant body suited to repeated use and outdoor mounting with IP54 protection.
• High push/pull capacity: With up to 900N (202lbs) of force the actuator handles demanding lifts such as vehicle doors, RV mechanisms, and equipment panels.
• Built-in limit switches: Integrated end-of-travel switches cut power automatically and give the unit a reliable self-locking stop at either end.
• Quiet operation: The low noise design runs at under 50dB, making it suitable for indoor uses like TV lifts or electric beds where noise matters.
• Simple 12V DC input: The 12V power requirement and modest current draw (max 3A) make it easy to integrate into automotive, solar, or battery systems.
• Protected and safe: Over-current, overload and over-voltage protections reduce risk in installations exposed to variable power or heavy loads.

Who It's For

The actuator is aimed at hobbyists, RV and car owners, small workshop fabricators, and light industrial users who need reliable linear motion at a reasonable cost. It excels where moderate speed and high force are needed without complex controls, for example chicken coop doors, TV lift tables, or adjustable furniture.

It is not the best choice for precision CNC apps or very high speed automation; users who need faster travel than 10 mm/s or sub-millimeter positioning should consider alternatives with feedback encoders or faster stroke rates.

Pros & Cons

Pros

• Sturdy aluminum body and IP54 protection increase durability in outdoor or dusty environments.
• High maximum load (900N/202lbs) covers most domestic and light industrial lifting tasks.
• Built-in limit switches and self-locking behavior reduce the need for extra safety wiring.

Cons

• Travel speed is relatively slow at 10 mm/s, so it is not suited for fast actuation needs.

Specifications

Input Voltage	12V DC
Stroke Length	300mm (12 in)
Retracted / Extended Length	420mm / 720mm (16.8 in / 28.8 in)
Maximum Load	900N / 202lbs
Travel Speed	10 mm/s (0.39 in/s)
Power / Current	Rated 20W, max 30W, max current 3A
Protection	IP54, over-current, overload, over-voltage

Our Verdict

The MYFULLY 12V, 12'in stroke linear actuator is a solid value for anyone needing robust push/pull power in a compact package. Its aluminum construction, built-in limit switches, and IP54 protection make it a dependable choice for RV doors, lift tables, and outdoor installations where quiet, safe operation and moderate speed are acceptable tradeoffs for strong lifting capacity.

Frequently Asked Questions

Can this actuator be used outdoors?
Yes; IP54 protection helps resist dust and splashing water, and the aluminum alloy body tolerates outdoor conditions when mounted properly.

What power does it require?
The unit runs on 12V DC with a maximum current draw of about 3A and rated power around 20W (30W peak).

Will it stop at the end of its stroke?
Yes; built-in limit switches cut power at the ends of travel and provide a self-locking stop for safe operation.
