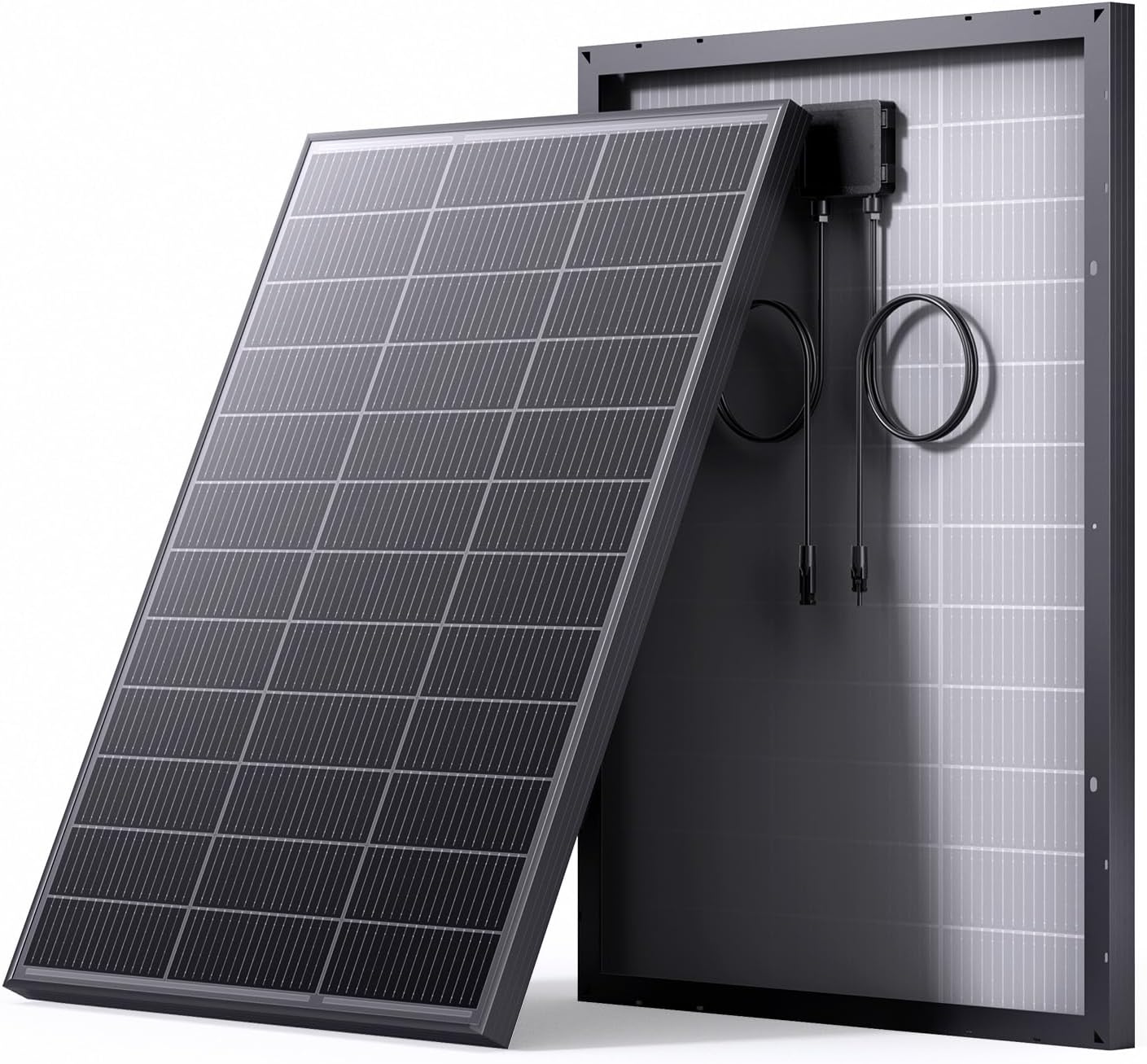

N-Type 16BB 100 Watt Solar Panel - Compact 12V High Efficiency

Our review of the N-Type 16BB 100 Watt Solar Panel finds it best suited for van, RV, cabin, and small off-grid setups where space and reliability matter most. The single biggest reason to consider it is the combination of N-type cells and a 16BB design, which together deliver higher real-world output and greater durability than many same-size panels. Installation is straightforward thanks to a compact 31.1 x 22.7 x 1.1 in footprint and pre-drilled holes, and customers report dependable charging performance with systems like portable power stations and 12V batteries.

Key Features

• N-Type Solar Cells: provide up to 25% conversion efficiency in ideal conditions, giving higher power output per square foot than standard P-type panels.
• 16BB Advanced Design: uses sixteen busbars to improve light absorption, reduce hot spot risk, and minimize micro-cracks for longer service life under stress.
• Compact Size: a smaller 31.1 x 22.7 x 1.1 in form factor and 11.4 lb weight make it easier to mount on RVs, boats, and rooftops where space is limited.
• Heat Resilience: a low temperature coefficient of -0.3%/K helps maintain stable output in hot climates, reducing power loss on sunny days.
• Durable Build: low-iron tempered glass, an aluminum alloy frame, IP68 waterproofing, and strong wind and snow ratings protect the panel outdoors.

Who It's For

This panel is ideal for owners of RVs, vans, pickups, small cabins, and those building compact off-grid systems who need a reliable 12V module that punches above its size. It fits applications where portability, easy mounting, and consistent battery charging are priorities, and pairs well with portable power stations and 12V battery banks.

It is less suitable for large commercial arrays or homeowners seeking the highest single-panel wattage for a roof-first grid-tie system; those users will want larger panels or full system designs optimized for building-integrated installations.

Pros & Cons

Pros

• High conversion efficiency from N-type cells yields strong power output relative to panel size.
• 16BB construction improves durability and reduces long-term degradation risk compared with older busbar designs.
• Compact footprint and light weight make installation quick and flexible for small vehicles and cabins.
• IP68 waterproofing and reinforced frame offer reliable outdoor performance in varied weather.

Cons

• Actual wattage depends on sunlight, angle, and temperature, so real-world output can be lower than the 25% ideal figure.
• As a single 100W module it is not intended to replace a larger rooftop array for whole-house grid-tied systems.

Specifications

Rated Power	100 Watt
Cell Type	N-Type monocrystalline
Conversion Efficiency	Up to 25% (ideal conditions)
Dimensions	31.1 x 22.7 x 1.1 in
Weight	11.4 lb
Busbar Design	16BB
Environmental Ratings	IP68, 2400 Pa wind, 5400 Pa snow

Our Verdict

The N-Type 16BB 100 Watt Solar Panel is a smart choice for small, space-constrained systems that need efficient, durable performance. Its compact size, advanced cell and busbar technology, and robust build make it good value for RVers, campers, and off-grid users who want long-term reliability without a heavy or bulky module.

Frequently Asked Questions

Will this panel run a 12V battery?
Yes. The panel is designed as a 12V module and works well with 12V battery banks and compatible charge controllers for charging and maintenance.

How much power can I expect in real conditions?
Actual output depends on sunlight, tilt, temperature, and system compatibility; customers commonly report outputs at or slightly above rated wattage under good sun and ideal setup.

Is it weatherproof for rooftop and outdoor use?
Yes. It features low-iron tempered glass, an aluminum frame, IP68 protection, and strong wind and snow ratings for reliable outdoor performance.
