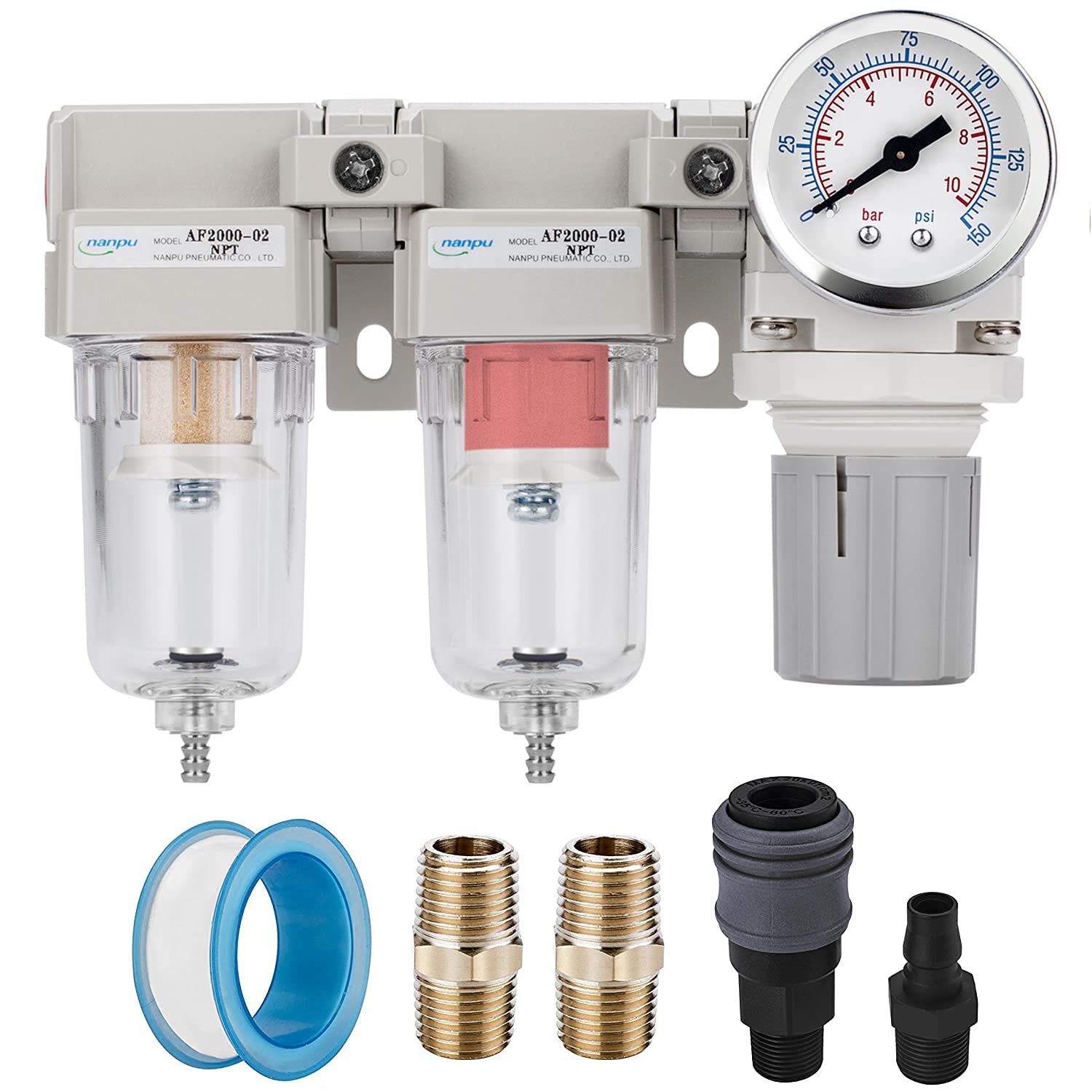

NANPU 1/4ft NPT Air Drying System - Filter, Coalescer & Regulator

In this review the NANPU 1/4' NPT Air Drying System is assessed for hobbyists and light industrial users who need cleaner compressed air without a bulky install. The unit combines a 5 micron particulate filter, a 0.01 micron coalescing element and an adjustable regulator into a compact piggyback package, making it a straightforward add-on for airbrushes, small air tools and pneumatic lines. The single biggest reason to consider it is the double filtration plus regulator in one assembly, which simplifies plumbing while providing noticeably cleaner air for routine tasks.

Key Features

• Double filtration: A 5 micron brass particulate element and a 0.01 micron coalescing element work together to remove dust, oil and water vapor for cleaner output air.
• Integrated regulator: The adjustable regulator covers 0-125 psi operating pressure so the user can precisely control tool inlet pressure without a separate regulator.
• Compact piggyback design: The 1/4' NPT piggyback form factor mounts close to tools or manifolds to save space and reduce extra fittings.
• Useful accessories included: The kit ships with a semi-auto drain, polycarbonate bowl, 0-150 gauge with bracket, two couplers, two 1/4' NPT fittings and thread seal tape to simplify installation.
• Serviceable elements: Brass and coalescing elements are replaceable, allowing routine maintenance to keep filtration performance steady over time.

Who It's For

This unit is aimed at DIYers, small workshop owners and light industrial users who run small pneumatic tools, airbrushes or equipment that benefit from cleaner, regulated air at moderate flow rates. The compact 1/4' NPT connections and included couplers make it well suited to retrofit applications where space and simplicity matter.

It is less suited to heavy industrial lines or applications needing higher flow than the stated 18 SCFM at 90 psi, or where stainless steel bowls and extreme durability are required; buyers with high-volume compressor systems should look for larger, industrial-grade filter/regulator units.

Pros & Cons

Pros

• Effective dual-stage filtration removes both particulates and fine oil/water aerosol at typical workshop pressures.
• All-in-one assembly with regulator and gauge reduces plumbing complexity and installation time.
• Good value for price with useful accessories included for immediate setup.
• Serviceable elements and polycarbonate bowl allow inspection and maintenance.

Cons

• Some users report mixed build quality and occasional air leakage, particularly around the gauge, so careful leak checking is recommended after install.
• The flow rate is limited to moderate use at about 18 SCFM, so it is not ideal for high-demand industrial tools.

Specifications

Port Size	1/4' NPT
Particulate Element	5 micron brass
Coalescing Element	0.01 micron
Max Supply Pressure	145 psi
Operating Pressure	0-125 psi
Flow Rate	18 SCFM (500 L/min) @ 90 psi
Included Accessories	Semi-auto drain, polycarbonate bowl, 0-150 gauge, bracket, coupler & plug kit, 2 x 1/4' NPT fittings, thread seal tape

Our Verdict

The NANPU 1/4' NPT Air Drying System is a practical, cost-effective combo for workshops and hobby use that need cleaner, regulated air without a large installation. It bundles dual filtration, a regulator and useful hardware in a compact package that represents good value, provided the user accepts its moderate flow limit and checks fittings for potential leakage during setup.

Frequently Asked Questions

Can this unit handle high-flow applications?
The unit is rated to about 18 SCFM at 90 psi, so it is suitable for small tools but not for high-demand industrial air systems.

Is the bowl and filter serviceable?
Yes, the polycarbonate bowl and replaceable filter and coalescing elements allow routine servicing and inspection.

Does it come ready to install?
Yes, the package includes couplers, fittings, gauge, bracket and thread seal tape to simplify immediate installation.
