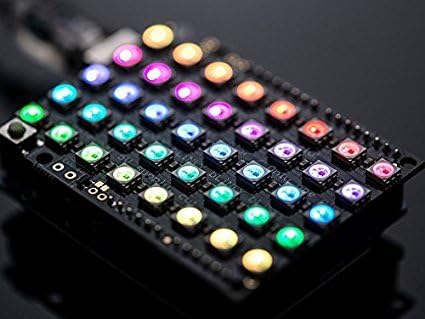

NeoPixel Shield for Arduino - 40 RGB LED Pixel Matrix

Our review of the NeoPixel Shield for Arduino finds it ideal for makers who want an easy, compact way to add individually addressable RGB pixels to an Arduino project; the single biggest reason to buy is the convenience of a ready-made 5x8 matrix that runs from one control pin and fits directly on a 'duino. The board ships with stacking and plain headers for different mounting styles and includes a terminal block option for external 4-6V power when you need more brightness than the Arduino supply can responsibly provide.

Key Features

• 40 RGB LEDs: A dense 5x8 matrix provides bright, individually addressable pixels for animations, text, and effects in a compact footprint.
• Single-pin control: Uses one digital pin (default D6) so wiring and code remain simple even for beginners and small projects.
• Onboard and external power options: LEDs are powered from the Arduino 5V by default, and a solder-in terminal block lets you connect a 4-6V external supply for high-brightness use.
• Chainable shields: DOUT to DIN chaining lets multiple shields be linked to expand the pixel count without additional control pins.
• Flexible mounting: Includes both stacking and plain headers so the shield can sit on top of the Arduino or be used on a breadboard or custom mount.

Who It's For

The NeoPixel Shield is best for hobbyists, educators, and prototype developers who want to add multicolor pixels quickly without designing their own LED matrix. The single-pin interface and compact 5x8 layout make it convenient for wearables, status displays, and small art projects.

It is less suitable for projects that demand extremely high sustained white brightness without external power, or for users who need a custom pixel spacing or non-standard matrix geometry; those users should consider discrete LED strips or custom PCB designs instead.

Pros & Cons

Pros

• Very easy to get started with one control pin and Arduino-compatible libraries.
• Compact 5x8 arrangement is excellent for text, icons, and short animations.
• Chainable shields make it straightforward to scale up pixel count without extra pins.
• Includes headers and a terminal block option so you can choose stacking or external power cleanly.

Cons

• Powering all pixels at full white may require an external supply and a solder jumper change, which adds a small assembly step.
• Fixed 5x8 layout limits use in projects that need different pixel spacing or larger single displays.

Specifications

Our Verdict

The NeoPixel Shield for Arduino is a smart, cost-effective way to add a programmable 5x8 RGB matrix to hobby and education projects; it saves time by combining addressable LEDs, headers, and a power option on a single shield. Makers who need simple, colorful displays or want to chain multiple matrices will find strong value here, while projects requiring extreme brightness or custom layouts should plan for external power or a custom panel.

Frequently Asked Questions

Can the shield be powered from the Arduino?
Yes, the LEDs are powered from the Arduino 5V by default, suitable for typical use but not recommended for full-power white on all pixels.

How do I use an external power supply?
Solder in the provided terminal block and cut the onboard solder jumper if needed, then connect a 4-6VDC supply to the terminal block; placing the block on the bottom keeps the top low-profile.

Can multiple shields be chained together?
Yes, shields can be chained by wiring DOUT from the first shield to DIN on the next, allowing expansion without additional control pins.
