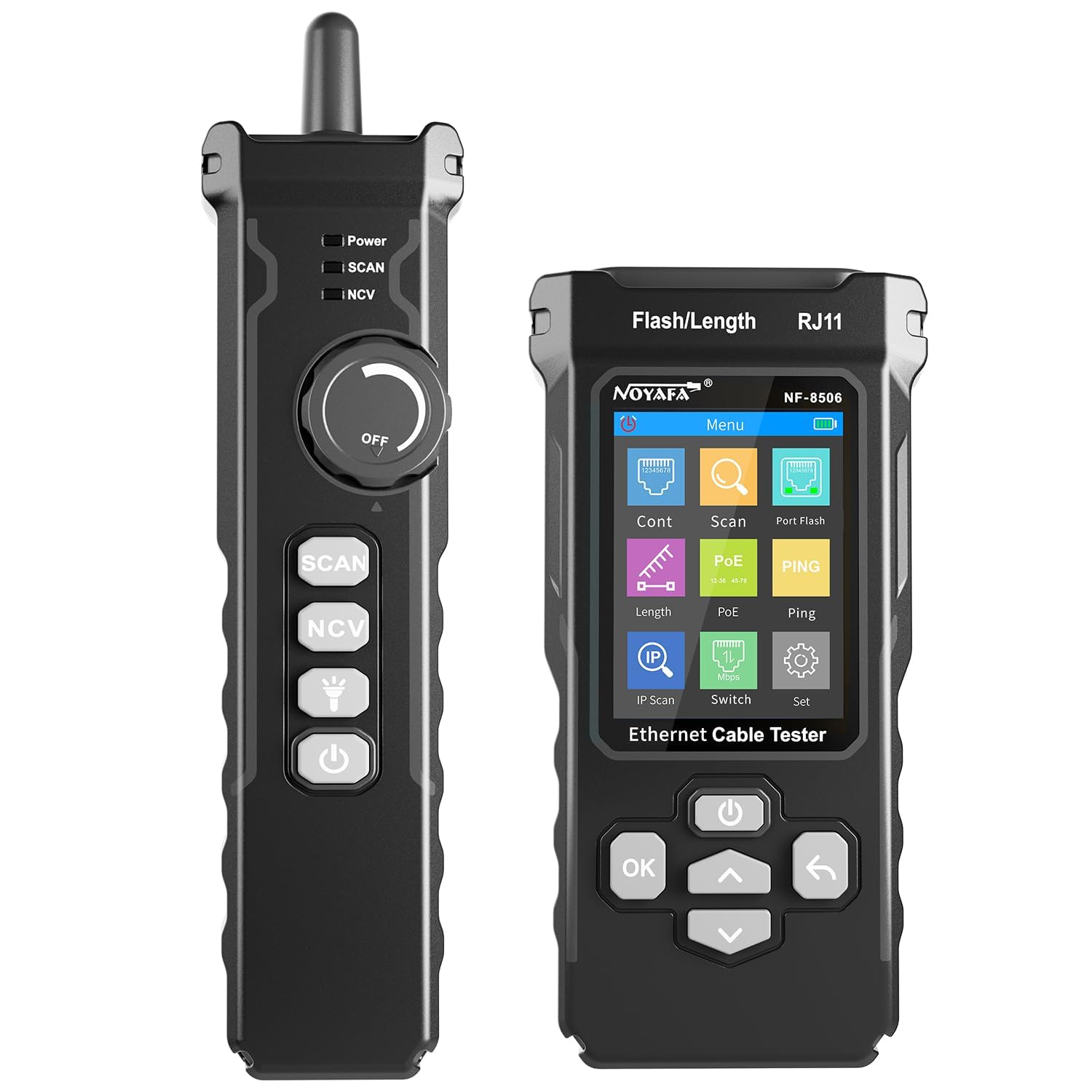

Network Cable Tester NF-8506 with IP Scan and TDR - Practical Field

In this review of the NOYAFA NF-8506 the bottom line is simple: this is a practical, handheld network cable tester aimed at technicians who need a compact tool to diagnose wired networks in the field. The NF-8506 stands out for combining a Time Domain Reflectometry (TDR) length tester with an IP scan and ping capability, making it useful for locating cable faults and verifying network connectivity without carrying multiple devices.

Key Features

• TDR cable length: Measures cable length from about 2.5m (8.2ft) up to 200m (656ft) so users can find fault distance quickly on runs of CAT5 and CAT6 cable.
• IP scan and ping test: Built-in ping and IP scanning lets technicians verify TCP/IP connectivity, measure round-trip times, and identify active IP addresses on the LAN.
• PoE detection: Detects standard and non-standard PoE including 802.3af and 802.3at, shows polarity and whether power is mid-span or end-span for safe troubleshooting.
• Network rate and continuity test: Checks link rate and cable continuity to identify breaks, shorts, or negotiation issues affecting network throughput.
• Port flashing and identification: Flashes indicator lights on switch ports and displays port rate and duplex so cables and ports can be mapped quickly.
• Portable features: Includes sensitivity adjustment and an LED flashlight for field use and accepts RJ11 and RJ45 connectors for telephone and Ethernet lines.

Who It's For

The NF-8506 is best for on-site network technicians, IT generalists, and installers who need a single portable instrument to trace cable faults, verify link performance, and identify PoE sources. Its combination of TDR length testing and network diagnostics reduces trips back to the truck and speeds field diagnostics.

It is less suited to users who need advanced lab-grade certification or optical fiber testing beyond simple continuity and length checks; technicians who require specialized fiber meters or longer-range testers should look elsewhere.

Pros & Cons

Pros

• Combines TDR length measurement and IP/ping diagnostics in one handheld unit for efficient field use.
• PoE detection covers standard and non-standard supplies and reports polarity and power method.
• Port flashing and readable port information make mapping and identification straightforward.
• Good value for the feature set and convenient USB-C charging noted by users.

Cons

• Instructions are basic according to some customers, so a learning curve is possible for advanced features like sensitivity tuning and TDR interpretation.

Specifications

Model	NF-8506
Testable cables	RJ11 (telephone), RJ45 (Ethernet), CAT5, CAT6
TDR length range	Approx. 2.5m (8.2ft) to 200m (656ft)
Functions	TDR length, continuity, IP scan, ping, network rate test, PoE detection, port flashing
PoE standards detected	Non-standard, IEEE 802.3af, IEEE 802.3at
Connectivity	RJ11/RJ45 connectors
Field features	Sensitivity adjustment, LED flashlight, portable handheld design

Our Verdict

The NF-8506 is a practical, value-oriented network cable tester for field technicians who need TDR length measurements alongside basic network diagnostics like ping and IP scanning. It saves time by combining continuity, PoE detection, port flashing, and network rate checks in one handheld device, making it a good buy for general installers and IT staff who want a compact multi-function tester without lab-grade complexity.

Frequently Asked Questions

Can this tester measure cable length?
Yes. The NF-8506 uses TDR to measure cable length from about 2.5m (8.2ft) up to 200m (656ft) and can locate fault distance.

Does it detect PoE?
Yes. It detects non-standard PoE and standard IEEE 802.3af and 802.3at supplies, and reports polarity and power method.

Can it identify switch ports?
Yes. The port flashing and identification feature lets you flash indicators on the connected port and view operating rate and duplex for mapping cables.
