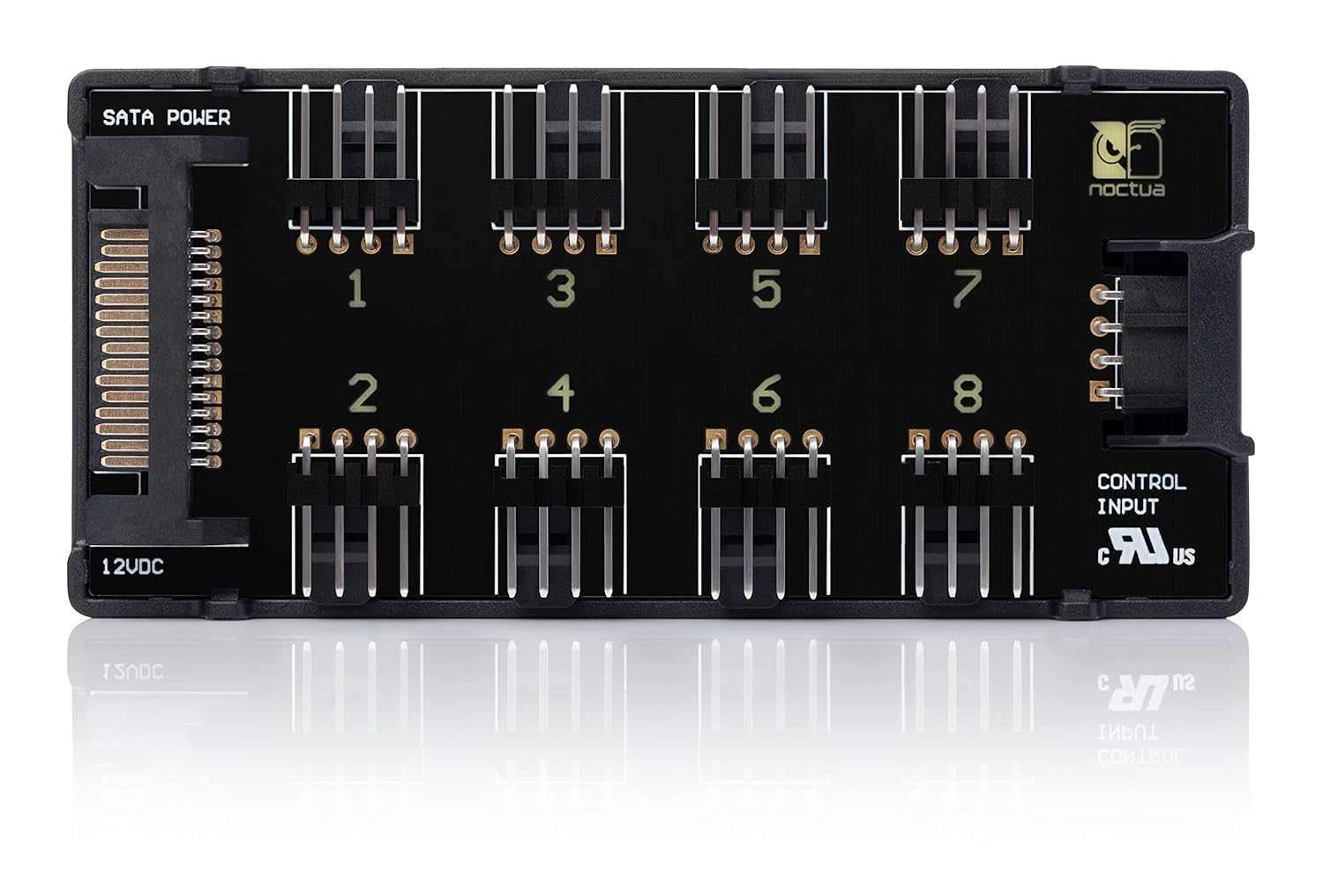

Noctua NA-FH1 8-Channel Fan Hub - Compact PWM Control

In this review the Noctua NA-FH1 is evaluated as a utility-focused fan hub for builders who need reliable multi-fan control without extra software. The bottom line: it is best for PC enthusiasts and system builders who want to power, monitor and synchronize up to eight 12V or 5V fans from a single hub. The NA-FH1's main selling point is dependable PWM distribution and flexible power options, making it an uncomplicated way to expand fan count while keeping fan speed and RPM monitoring intact.

Key Features

• 8-way distribution: Lets users power and control up to eight fans from a single board, simplifying cable routing in multi-fan builds.
• PWM pass-through: Transmits the motherboard or optional controller PWM signal to all connected fans so speeds remain synchronized across the system.
• Dual inputs: Accepts both a 4-pin input for RPM and PWM and a S-ATA power input for additional current, allowing simultaneous use to separate control and power paths.
• Safety fuses: Built-in fuses protect against overcurrent and short circuits, reducing risk when driving several fans from one hub.
• Magnetic mounting: Four strong magnets enable quick placement on steel case panels for tidy installations without extra hardware.
• Wide compatibility: Supports 12V case fans and 5V setups when used with Noctua 5V fans and USB power adaptor cables, making it versatile for different cooling configurations.

Who It's For

The NA-FH1 is aimed at builders and system maintainers who run multiple case fans and want a simple, robust hub that preserves PWM control and RPM reporting. It suits people consolidating fan headers on small motherboards or creating larger intake and exhaust arrays where consistent speed management matters.

It is less relevant for users who need per-fan independent speed profiles or software features for advanced tuning, since the hub mirrors a single PWM signal. Also, those who require extreme total current beyond the stated S-ATA and 4-pin limits should consider powered fan controllers with higher-rated outputs.

Pros & Cons

Pros

• Reliable PWM transmission keeps fan speeds consistent when controlled from the motherboard or NA-FC1.
• Strong magnets and compact board make installation quick and clean in tight cases.
• Safety fuses and certified compliance provide peace of mind for long-term operation.
• Works with both 12V and 5V fan setups when used with appropriate adaptors, increasing versatility.

Cons

• All fans mirror a single PWM signal, so there is no per-fan independent control for fine-tuned profiles.
• The total power limits (54W via S-ATA, 24W via 4-pin) restrict very high-fan-count setups with power-hungry models.

Specifications

Channels	8 outputs
Input types	4-pin PWM and S-ATA power (can be used simultaneously)
Power capacity	Up to 54W via S-ATA (12V), 24W via 4-pin interface
Compatibility	Supports 12V fans; 5V with Noctua 5V fans and USB adaptor cables
Mounting	Four strong magnets for attachment to steel case panels
Protection & standards	Safety fuses; EN 62368-1, EN 55035, EN 55032, UL-507, CE, UKCA, UL listed
Warranty	6 year manufacturer warranty

Our Verdict

The NA-FH1 is a practical, well-built fan hub that delivers dependable PWM distribution and easy installation for multi-fan PC builds. It offers good value for users who need synchronized fan control and secure power handling, though it is not intended for per-fan customization or extremely high current setups. For most system builders and Noctua fan users, it is a sensible, durable choice.

Frequently Asked Questions

Can the hub provide independent fan speeds?
The NA-FH1 mirrors a single PWM signal to all outputs, so it does not provide per-fan independent speed control.

How is the hub powered and monitored?
Power is supplied via S-ATA for higher current and a 4-pin input provides RPM and PWM signals; both inputs can be used simultaneously for separate power and control.

Is mounting hardware required?
No extra hardware is needed: four built-in magnets allow attachment to steel case panels for quick installation.
