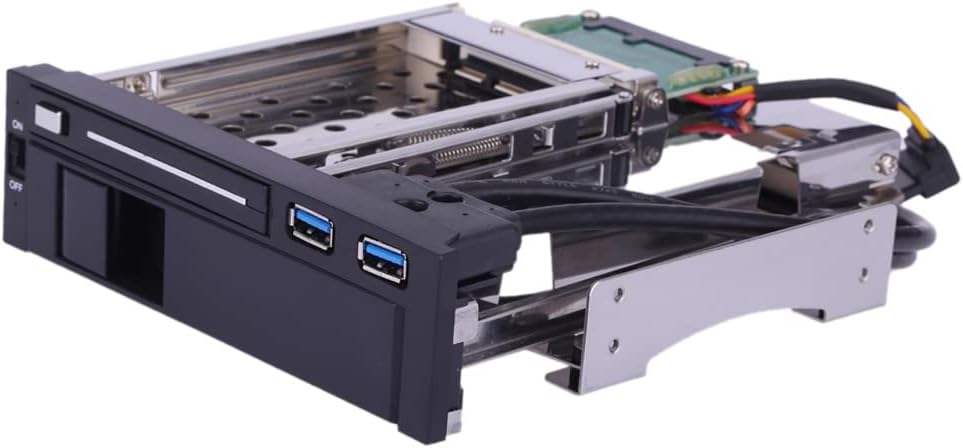

NTBL Dual Bay 3.5in + 2.5in SATA III Drive Tray Caddy - Dual Hot-Swap

In this review the NTBL Dual Bay tray caddy is evaluated for users who need to add both a 3.5' HDD and a 2.5' SSD into a single 5.25' bay with easy access. The bottom line: it is a practical internal mobile rack that delivers true hot swap convenience and a pair of front USB 3.0 ports while requiring no drivers or special setup. For a workstation or home server builder wanting rapid drive changes and external USB passthrough, this enclosure's build and feature set make it a useful addition.

Key Features

• Dual-bay design: Supports one 3.5' HDD and one 2.5' SSD/HDD simultaneously to consolidate drives in a single 5.25' bay.
• SATA III and backward compatibility: Works with SATA III/II/I (6.0/3.0/1.5 Gbps) drives to support both modern and older storage devices.
• Front USB 3.0 passthrough: Two USB 3.0 ports on the front panel provide fast external connectivity for peripherals or flash storage without reaching the rear of the PC.
• Power control: The dedicated ON/OFF switch controls power to both bays for safer hot swapping and idling drives when not in use.
• Robust construction: Aluminum alloy with ABS and an anti-shock design give a solid cage for frequent drive insertion and removal.
• Easy drive ejection: Pull/push bar design simplifies inserting and removing 2.5' and 3.5' drives, including varying thicknesses of 7-9.5mm for 2.5' models.

Who It's For

The NTBL tray caddy is aimed at desktop users, workstation builders, and small server operators who need hot-swap access to both a 3.5' HDD and a 2.5' SSD inside a single 5.25' bay. It is especially useful for those who swap drives regularly for backups, cloning, or swapping large-capacity disks without opening the case.

It is less appropriate for users who want a multi-bay external docking station or for systems without a free 5.25' bay. Those needing tool-free, drive-less external enclosures or networked storage should look at other options.

Pros & Cons

Pros

• Combines a 3.5' bay and a 2.5' bay in one 5.25' slot for efficient internal expansion.
• Supports SATA III speeds while remaining backward compatible with older SATA standards.
• Front dual USB 3.0 ports add convenient high-speed external I/O without extra brackets.
• Sturdy metal and ABS construction provides reliable protection and anti-shock resilience.

Cons

• Requires an available 5.25' drive bay, so it will not fit in compact cases without that space.
• Not a networked or fully external solution for users who need drive access away from the PC chassis.

Specifications

Model Type	Internal SATA mobile rack (2-bay)
Drive Bays	1 x 2.5' and 1 x 3.5'
Interface	SATA + USB 3.0 (front ports)
SATA Speeds	6.0/3.0/1.5 Gbps (SATA III/II/I)
Material	Aluminum alloy + ABS
Supported 2.5' Thickness	7 - 9.5 mm
Dimensions (L x W x H)	14.8 x 18.3 x 4.2 cm

Our Verdict

The NTBL Dual Bay SATA caddy is a practical, well-built solution for people who need both a 3.5' HDD and a 2.5' SSD accessible from a single 5.25' bay. With hot swap support, front USB 3.0 ports, and solid metal construction, it offers good value for desktop builders and small server users who swap drives regularly, provided they have the necessary bay space.

Frequently Asked Questions

Does it support hot swap?
Yes. The unit supports hot swap and is plug-and-play with no drivers required for supported systems.

What interfaces are available?
It provides SATA connections for the internal bays and two front USB 3.0 ports for external devices.

What operating systems are supported?
The enclosure is compatible with Windows 7/8/2000/XP/Vista and Mac OS 10.2 and above as supplied by the manufacturer.
