OBD2 Breakout Box for Easy Protocol Detection and Testing

The OBD2 Breakout Box is an essential tool for automotive diagnostics, designed to simplify the process of accessing the OBDII diagnostic link connector. This device allows users to monitor various signals from the vehicle's ECU effectively. With its user-friendly design, the OBDII Protocol Detector provides a clear and safe way to check for issues related to the vehicle's communication systems.

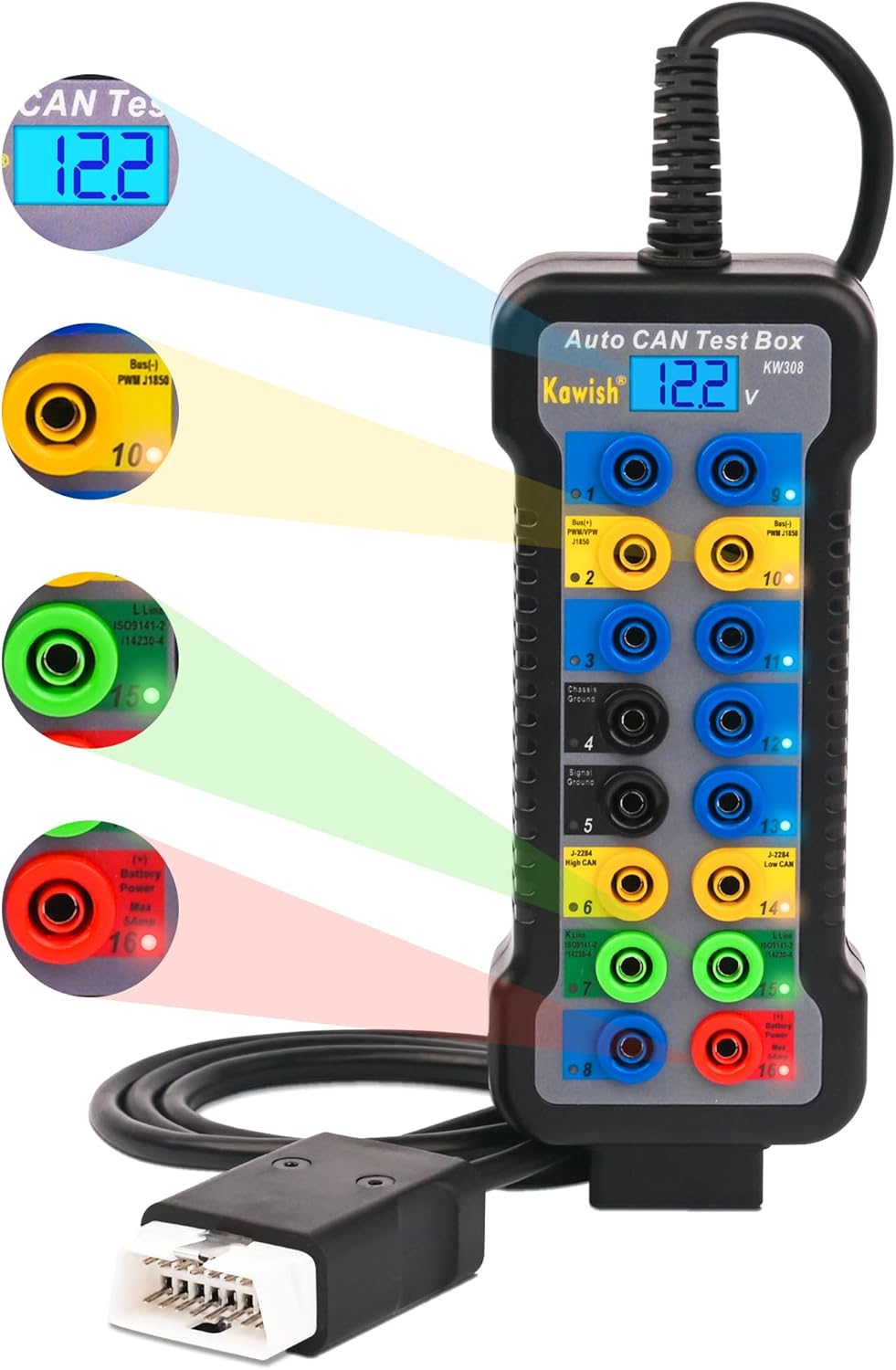

Equipped with a vibrant LCD display, the Auto OBD2 Breakout Box features multiple LED indicators that provide real-time feedback on protocol, power, and ground signals. When connected, the different colored LEDs will flash to indicate the status of the OBDII communication. For instance, a yellow LED lights up when the code reader is actively communicating with the vehicle, while a solid green LED indicates a good ground connection.

The 16-pin interface design of this OBDII Breakout Box ensures that all pins are easily accessible for testing. This feature allows for quick and intuitive connections, making it easier to diagnose problems without the hassle of complicated setups. The device is particularly beneficial for technicians who need to perform multiple tests efficiently.

One of the standout features of this tool is its 128cm extension cord, which provides ample length for comfortable operation without being restricted to tight spaces within the vehicle. The 4mm banana plug socket allows users to connect various testing devices, such as multimeters or oscilloscopes, to gather detailed signal information from the OBDII junction box.

Safety is a top priority with the Auto ECU Breakout Box. It is designed to prevent reverse power supply connections, which can cause damage to diagnostic tools. An alarm will sound if a reverse connection is detected, ensuring that users can work confidently without risking their equipment. Additionally, the inclusion of a small flashlight aids in connecting the OBD port in low-light conditions.

This versatile OBDII Protocol Detector is capable of detecting various communication protocols, including PWM (J1850), VPW (J1850), ISO 9141-2, DIS/ISO 14230-4, and CAN bus (J-2284). This makes it an invaluable tool for both diagnosing and retrofitting vehicles, whether they are 12V automotive or 24V diesel.

In summary, the OBD2 Breakout Box is a must-have for anyone serious about automotive diagnostics. Its combination of safety features, user-friendly design, and comprehensive testing capabilities make it an excellent choice for both professionals and DIY enthusiasts alike.
