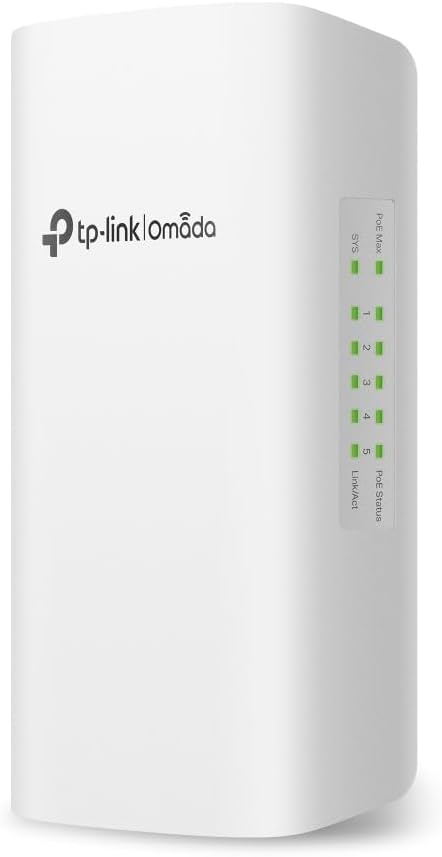

Omada SG2005P-PD Outdoor PoE Passthrough Switch - Rugged 5-Port

In this review the Omada SG2005P-PD is evaluated as a focused outdoor PoE solution for installers and small-site IT teams who need a compact, weatherproof switch that extends PoE distance. The bottom line: it is best for deployments that require one high-power PoE++ feed and multiple PoE+ outputs outdoors because its single 90 W PoE++ input and PoE passthrough lets devices sit up to 200 m from the primary PoE source while keeping gigabit speeds. For those who need AC power or many LAN ports, a different model is more appropriate.

Key Features

• PoE Passthrough: One Gigabit PoE++ input powers four PoE+ outputs so cameras and access points can be fed from a single outdoor location, reducing cable runs and separate power boxes.
• Long PoE Distance: Standard PoE passthrough doubles a typical 100 m limit to up to 200 m, making it useful for long cable runs to remote surveillance cameras or roofline access points.
• Outdoor Rated Enclosure: An IP55, UV-resistant, dustproof and waterproof case with operation down to -40 C and up to 60 C keeps the unit reliable in harsh outdoor conditions.
• Omada SDN Integration: Centralized cloud and on-premises management via Omada means the device can be monitored and configured alongside other Omada equipment.
• Value Networking Features: Static routing, Access Control List, QoS and VLAN support give basic traffic control and segmentation without needing a separate router.

Who It's For

The SG2005P-PD is aimed at network installers, surveillance integrators and small business IT teams who must power multiple outdoor devices from a single PoE feed and need a weatherproof switch with management features. It is especially useful where running AC power is inconvenient and where extending PoE distance without sacrificing gigabit throughput matters.

It is less suitable for users who require many Ethernet ports, an internal AC power option, or who do not have an 802.3bt PoE++ power source available, since the unit is PoE powered only and depends on that upstream feed for full output capability.

Pros & Cons

Pros

• Compact outdoor design with IP55 protection and 4KV lightning protection for reliable outdoor use.
• Flexible PoE budgeting with one PoE++ input supporting four PoE+ outputs, enabling multiple powered devices from a single feed.
• Works with Omada SDN for centralized management and integration into multi-site deployments.

Cons

• PoE powered only, so it requires a compatible 802.3bt or other PoE source and cannot run from mains power.
• Five ports total limits use where larger port counts are needed for more complex sites.

Specifications

Model	5-Port Outdoor PoE Passthrough Gigabit Switch
PoE Input	1 x Gigabit PoE++ in (up to 90 W when fed by 802.3bt Type 4)
PoE Outputs	4 x Gigabit PoE+ out, up to combined 64 W depending on input type
PoE Distance	Standard passthrough up to 200 m (656 ft) at gigabit speeds
Ingress Protection	IP55, UV-resistant, dustproof and waterproof
Operating Temperature	-40 C to 60 C
Management	Omada SDN integration with ACL, VLAN, QoS, and static routing

Our Verdict

The Omada SG2005P-PD is a practical, well-engineered outdoor PoE passthrough switch for installers who need to power several outdoor devices from a single high-power feed. Its rugged IP55 housing, extended PoE distance and Omada management make it good value for surveillance and wireless deployments, provided an appropriate PoE++ source is available and the five-port count meets site requirements.

Frequently Asked Questions

Can this switch be powered from AC?
No. This unit is PoE powered only and requires a compatible PoE source such as 802.3bt Type 4 for full capability.

How far can PoE reach with passthrough?
Standard PoE passthrough doubles the typical 100 m limit to up to 200 m while maintaining gigabit speeds for longer cable runs.

Is it suitable for harsh outdoor environments?
Yes. The IP55 enclosure, UV resistance, -40 C to 60 C range and 4KV lightning protection are designed for outdoor installations.
