OMAX 2000X Digital Binocular Compound Microscope - Built-in Camera

In this review the OMAX 2000X Built-in 1.3MP Digital Binocular Compound LED Microscope is assessed for students, hobbyists and small lab users who need wide magnification range and simple imaging. The bottom line: this kit pairs a true optical compound microscope with a built-in 1.3MP USB camera and useful accessories, making it a sensible single purchase for teaching, specimen documentation and hobby microscopy. The review focuses on usability, optics and imaging performance rather than professional research grade claims.

Key Features

• Wide magnification range: Provides 40X up to 2000X which covers basic classroom observation through high magnification oil-immersion tasks for detailed specimen viewing.
• Built-in digital imaging: The 1.3MP CMOS camera (1280x1024) connects via USB2.0 for stills and live video capture on compatible Windows and Mac systems.
• Optical components: Two widefield eyepieces (WF10X/18 and WF20X) and achromatic DIN objectives including 4X, 10X, 40X(S) and 100X(S, oil) deliver corrected images across common magnifications.
• Sturdy mechanical build: All-metal mechanical components, a double layer X-Y stage with scales and a rack-and-pinion condenser give durable, repeatable positioning and focus control.
• Illumination and safety: Replaceable LED transmitted illumination with adjustable intensity and a stage upward lock help protect slides and objectives during use.

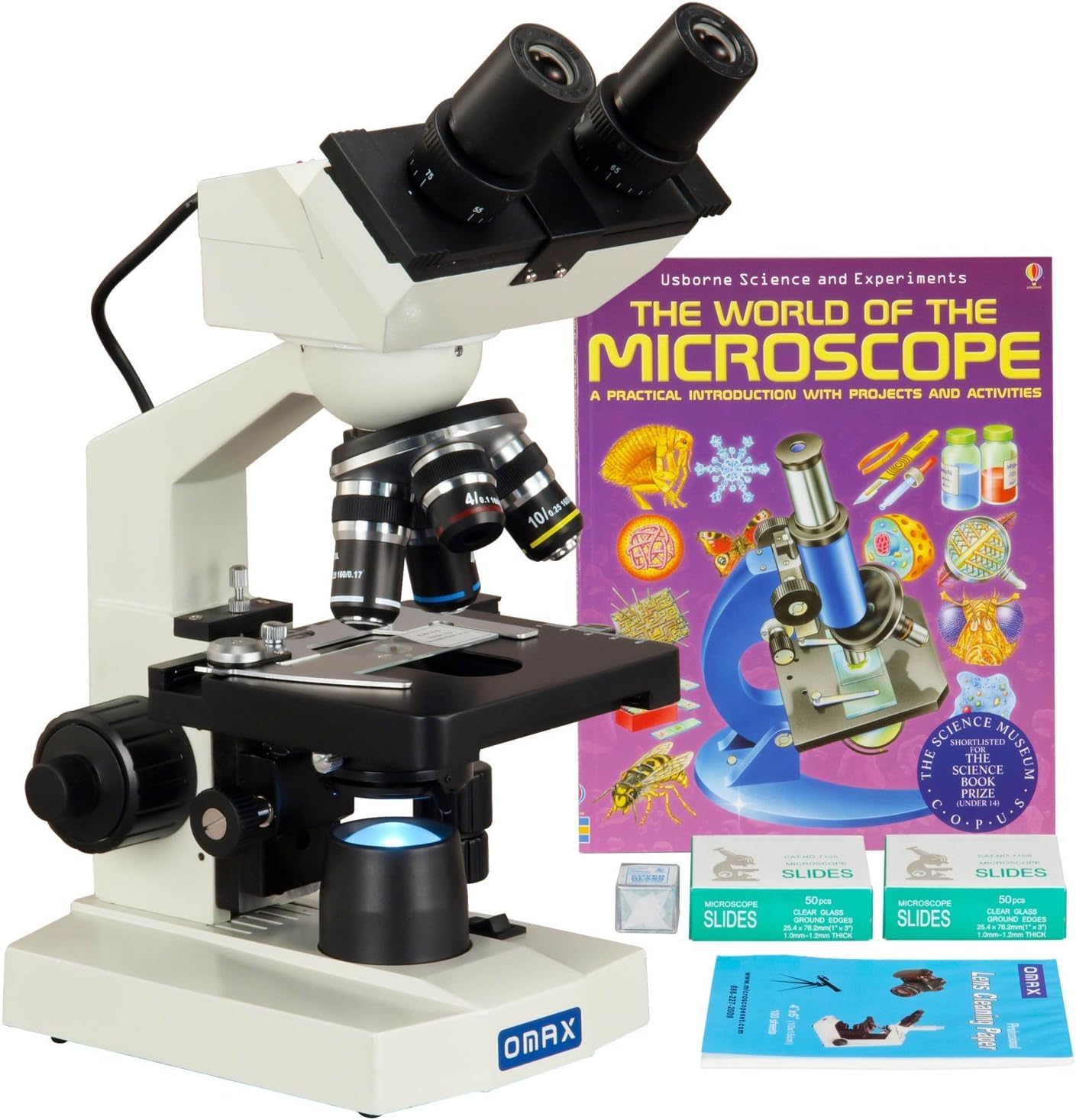

• Complete starter kit: Includes 100 blank glass slides, 100 coverslips, 100-sheet lens cleaning paper, AC/DC adapter and the book The World of The Microscope for reference.

Who It's For

This microscope is well suited to high school and college biology labs, hobbyists who want to document specimens, and instructors who need a rugged classroom instrument with an integrated camera. The combination of the double eyepiece head and digital output makes it easy for instructors to demonstrate specimens to a group and capture images for reports.

It is less appropriate for professional research that demands higher resolution cameras or specialized optics and for users requiring faster live frame rates for video-critical applications; the built-in 1.3MP camera captures images at modest frame rates and is optimized for documentation rather than high-speed imaging.

Pros & Cons

Pros

• Extensive magnification options with achromatic objectives enable a wide range of specimens to be examined.
• Integrated 1.3MP USB camera simplifies capturing stills and live views on a computer for measurement and record keeping.
• Robust metal construction, a mechanical X-Y stage and a NA1.25 Abbe condenser provide stable, repeatable results.
• Includes practical accessories and a reference book to get beginners started immediately.

Cons

• Camera frame rate is modest (up to 10 fps at 1024x768), so fast live video is limited compared with modern higher-frame cameras.
• Not intended as a substitute for advanced research-grade imaging systems when top-end resolution or advanced software features are required.

Specifications

Brand	OMAX
Total magnification	40X, 80X, 100X, 200X, 400X, 800X, 1000X, 2000X
Eyepieces	WF10X/18 and WF20X
Objectives	Achromatic DIN 4X, 10X, 40X(S), 100X(S, oil)
Camera	1.3MP CMOS, 1280x1024, USB2.0
Stage	Double layer X-Y mechanical, 115mm x 125mm, travel 70mm x 30mm
Illumination & power	Replaceable LED transmitted light, intensity adjustable; 7.5V 1000mA adapter (100-240VAC input)

Our Verdict

The OMAX 2000X kit is a strong value for educators, students and serious hobbyists who want a complete compound microscope with imaging capability without buying separate camera equipment. Its wide magnification range, durable mechanics and included accessories make it ready to use out of the box, while the built-in 1.3MP camera covers routine documentation needs even if it is not suited to demanding, high-speed imaging research.

Frequently Asked Questions

Can the built-in camera work on modern computers?
The USB2.0 camera is compatible with Windows XP through Windows 10 and Mac OS X using the included software for capture and measurements.

Does the kit include slides and cleaning supplies?
Yes, the kit includes 100 blank glass slides, 100 coverslips and a 100-sheet pack of lens cleaning paper for routine preparation and maintenance.

Is oil immersion supported?
Yes, the 100X objective is oil immersion (100X S, Oil) and the stage has an upward moving lock to protect objectives and slides during use.
