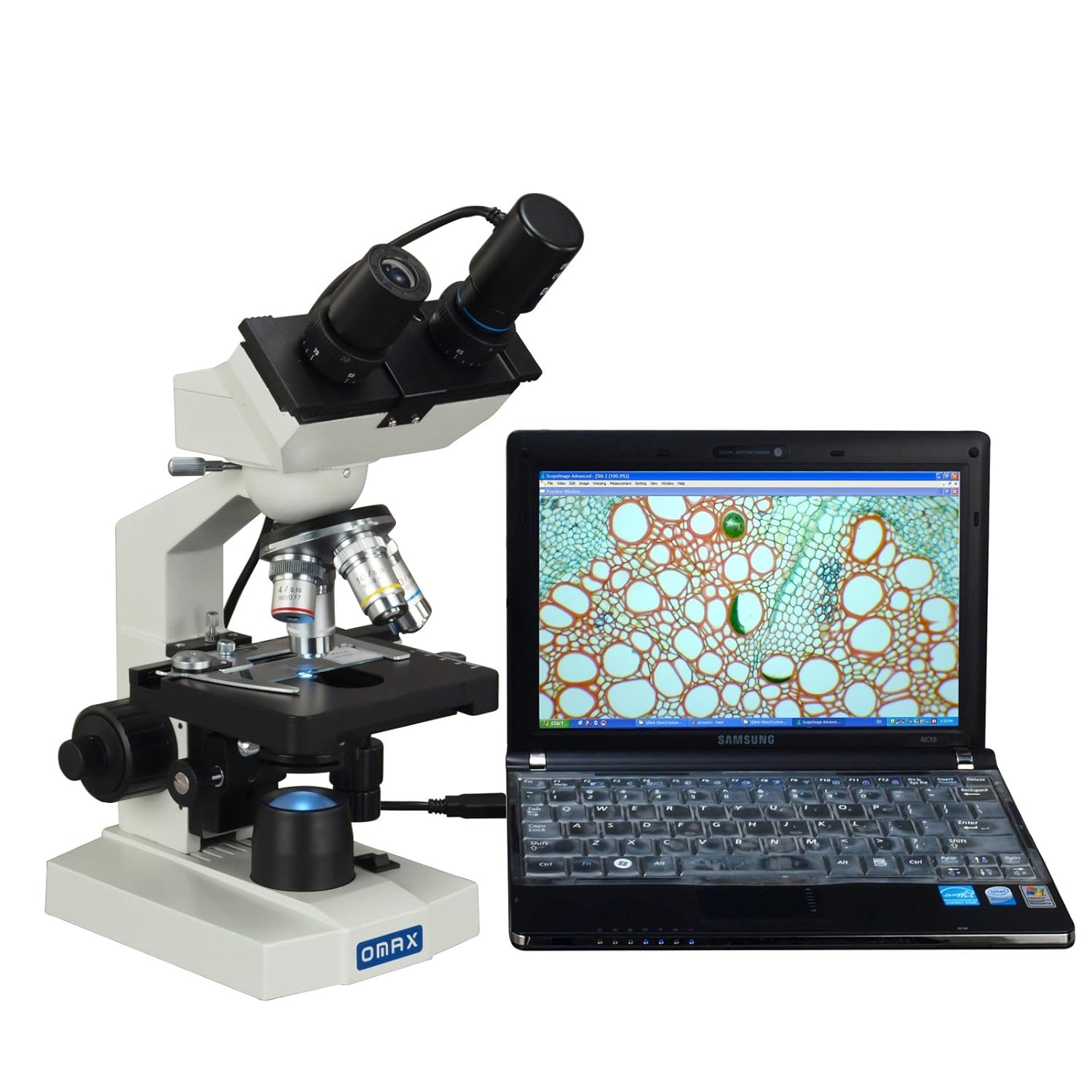

OMAX 40X-1000X Digital Binocular Compound Microscope - USB Camera

In this review of the OMAX 40X-1000X Digital Lab Binocular Compound Microscope, the bottom line is simple: it is a workhorse for student labs and hobbyists who want reliable optical performance plus a built-in digital imaging workflow. The kit combines a 45 degree inclined, 360 degree swiveling binocular head and a full set of achromatic objectives with a USB digital camera so users can view, capture and measure images on a computer. The most compelling reason to buy is the combination of solid metal construction and a complete digital imaging system that makes documentation and teaching straightforward.

Key Features

• Total magnification: Offers 40X, 100X, 400X and 1000X settings so users can examine specimens from low-power scanning to oil-immersion detail.
• Optical set: Includes widefield WF10X eyepieces and achromatic DIN objectives (4X, 10X, 40X(S), 100X(S, Oil)) to deliver crisp contrast for biological samples.
• Digital imaging: USB camera with true color 640 x 480 capture and a 0.45X reduction lens provides a larger field of view for easy image capture and live video on a computer.
• Mechanical stage: Double layer X-Y mechanical stage with scales and a stage lock protects slides and objectives while enabling precise specimen positioning.
• Illumination and condenser: Variable intensity transmitted LED lamp paired with an NA1.25 Abbe condenser and iris diaphragm for controlled brightfield illumination.
• Durability and power: Full solid metal frame with stain-resistant enamel finish and a UL-approved AC/DC adapter for stable long-term use.

Who It's For

The OMAX digital binocular microscope is aimed at high school and college students, teaching labs, and hobby microscopists who need both robust optics and an integrated USB imaging solution for documentation or demonstration. It suits those who value a swiveling binocular head and adjustable interpupillary distance for comfortable group use and extended viewing sessions.

It is less appropriate for advanced research labs that require higher-resolution sensors, specialized fluorescence or dedicated photomicrography rigs; those users should look for professional cameras and optics designed for their niche applications.

Pros & Cons

Pros

• Comprehensive optical set and four magnification levels cover a wide range of biological work and education.
• Integrated USB camera and compatible software let users capture images, record video and perform measurements on Windows and Mac systems.
• Solid metal construction, double layer mechanical stage and stage lock increase longevity and protect slides and objectives.
• Adjustable LED illumination with an NA1.25 Abbe condenser provides good contrast control for brightfield viewing.

Cons

• Camera resolution is modest at 640 x 480, so users wanting high-resolution photomicrography will find it limiting.
• The included software targets older Windows versions as well; some users may need updated drivers or third-party imaging software for newer systems.

Specifications

Brand	OMAX
Total magnification	40X, 100X, 400X, 1000X
Eyepieces	Widefield WF10X
Objectives	Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
Viewing head	45 degree inclined, 360 degree swiveling binocular
Stage	Double layer X-Y mechanical stage 115mm x 125mm, translation 70mm x 30mm
Camera	USB true color 640 x 480, 0.45X reduction lens
Illumination	Adjustable transmitted LED with NA1.25 Abbe condenser

Our Verdict

The OMAX 40X-1000X Digital Binocular Compound Microscope is a strong value for educators and hobbyists who need reliable optics and a ready-made digital imaging workflow. Its sturdy metal frame, double layer mechanical stage and complete objective set make it a practical classroom or home-lab instrument, while the USB camera simplifies documentation and sharing. Those seeking high-end imaging should consider a higher-resolution camera, but for general biology and teaching this microscope delivers dependable performance.

Frequently Asked Questions

Can I capture images on both Windows and Mac?
Yes; the USB camera includes software compatible with Windows XP/Vista/7/8/10 and can display images on Mac OS, though Mac users may use native capture tools or third-party software.

Is the 100X objective oil immersion?
Yes; the 100X objective is an oil immersion type (100X S, Oil) and the stage includes a lock to protect slides and objectives during use.

Does the microscope have adjustable interpupillary distance?
Yes; the binocular head slides to adjust interpupillary distance from approximately 55mm to 75mm and each eyetube has a diopter adjustment.
