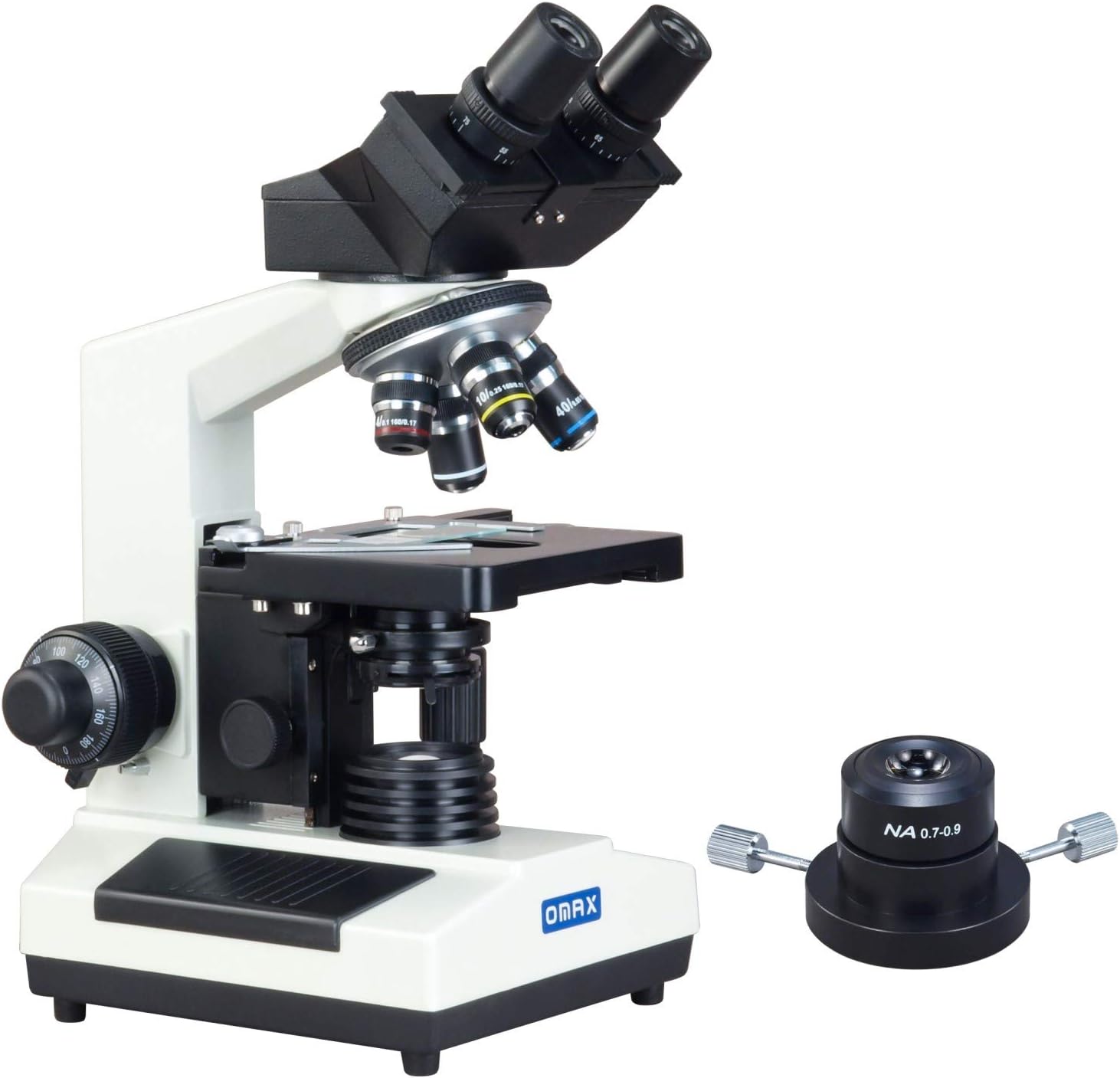

OMAX 40X-1000X Research Compound Binocular Microscope - Dual

In this review of the OMAX 40X-1000X research compound binocular microscope, the bottom line is clear: this is a professional education and clinical workhorse that combines both brightfield and dry darkfield optics in a single, durable build. The microscope delivers four useful magnification tiers from 40X to 1000X, and its combination of widefield eyepieces, achromatic objectives and halogen illumination produces crisp, high-resolution images suitable for teaching, demonstration and routine laboratory examination. For labs that need reliable optics, a robust mechanical stage and flexible viewing ergonomics, this model stands out.

Key Features

• Wide magnification range: Four objective settings with WF10X/18 eyepieces provide usable total magnifications of 40X, 100X, 400X and 1000X to cover low-power scanning through oil-immersion detail work.
• Dual condenser system: Includes a brightfield Abbe NA1.25 condenser and a dry darkfield NA0.7-0.9 condenser so contrast techniques are available without changing microscopes.
• Comfortable binocular head: The 45 degree inclined, 360 degree swiveling binocular with interpupillary adjustment and diopter control supports extended observation and multiple users.
• Sturdy mechanical stage: A stain-resistant, double-layer 140mm x 140mm stage with 75mm x 50mm translation range and mechanical controls makes slide positioning precise and repeatable.
• Reliable focusing and transport features: Coaxial coarse and fine focus knobs with tension control, rack-and-pinion adjustment and a locking mechanism protect focus during transport or storage.
• Bright halogen illumination: 6V 20W variable-intensity transmitted halogen lamp with worldwide 100V-240V power support for consistent lighting in different regions.

Who It's For

The OMAX 40X-1000X microscope is best suited to teaching labs, clinical examination rooms and research groups that require both brightfield and darkfield capabilities without changing equipment. Its wide magnification range and achromatic DIN objectives meet the needs of students, instructors and technicians performing routine slide work and demonstrations.

It is less appropriate for highly specialized research that needs advanced fluorescence or digital-imaging integration out of the box; those users should look for microscopes explicitly built for fluorescence or with factory-integrated camera systems. Also, users expecting LED lighting will note this model uses halogen illumination.

Pros & Cons

Pros

• High usable magnification up to 1000X with quality achromatic optics for clear, detailed images.
• Both dry darkfield and brightfield condensers included, allowing flexible contrast methods in one instrument.
• Robust mechanical stage and dual-sided coaxial focusing with tension control improve precision and durability.
• Comfort-focused binocular head with interpupillary and diopter adjustments suits multiple users and long sessions.

Cons

• Uses a halogen 6V 20W lamp rather than modern LED illumination, which may require bulb replacement and generates more heat.
• Does not include a camera or built-in digital imaging solution for immediate capture; an external camera add-on is required.

Specifications

Total magnification	40X, 100X, 400X, 1000X
Eyepieces	Widefield WF10X/18
Objectives	Achromatic DIN 4X, 10X, 40X (spring), 100X (spring, oil)
Condensers	Brightfield Abbe NA1.25; Dry darkfield NA0.7-0.9
Stage	Double-layer 140mm x 140mm; translation 75mm x 50mm
Head	45 degree inclined, 360 degree swiveling binocular; interpupillary 55-75mm
Illumination & power	6V 20W halogen, variable intensity; 100V-240V 50/60Hz

Our Verdict

The OMAX 40X-1000X research binocular microscope is a solid, cost-effective choice for teaching labs and clinical work where both brightfield and dry darkfield are needed. Its durable mechanics, quality achromatic optics and ergonomic binocular head deliver dependable performance, making it good value for institutions that need a versatile, high-magnification compound microscope without specialist imaging features.

Frequently Asked Questions

Does this microscope support oil immersion?
Yes, it includes a 100X spring-loaded objective designed for oil immersion use.

Can multiple users adjust the eyepieces quickly?
Yes, the binocular head has interpupillary adjustment (55-75mm) and diopter control on both eyepiece tubes for rapid individual setup.

Is the illumination compatible worldwide?
Yes, the halogen illumination runs on 100V-240V 50/60Hz and ships with a US/Canada plug, suitable for global use.
