OMAX 40X-2000X Binocular Compound LED Microscope - Detailed

In this review the OMAX 40X-2000X binocular compound LED microscope is assessed for students, hobbyists and small labs who need wide magnification range and reliable optics. The bottom line: this microscope is best for users who want a versatile, full-metal instrument with both WF10X and WF20X eyepieces and a complete objective set up to 100X oil for clinical-style work. It stands out for its long magnification range and solid build while including useful extras such as blank slides, cover slips and lens cleaning paper.

Key Features

• Total magnification: The 40X to 2000X range covers classroom observations through high-power oil immersion work for detailed specimen study.
• Eyepieces: Wide field WF10X and WF20X eyepieces provide comfortable views and flexibility for varying field of view needs.
• Objectives: Achromatic DIN 4X, 10X, 40X(S) and 100X(S, Oil) objectives deliver corrected color and sharpness for routine lab and educational samples.
• Viewing head: A 45 degree inclined, 360 degree swiveling binocular head with adjustable interpupillary distance ensures ergonomic viewing for multiple users.
• Stage and condenser: The double layer X-Y mechanical stage with scales and an NA1.25 Abbe condenser with iris diaphragm enable precise sample positioning and controlled illumination.
• Illumination and build: Transmitted LED with adjustable intensity, coaxial coarse/fine focus on both sides and a full solid metal frame give stable performance and longevity.

Who It's For

The OMAX unit is aimed at advanced high school and college students, hobby microscopists and small teaching labs that need a single microscope capable of both low-power scanning and high-power oil immersion work. It is also useful for anyone who values a metal construction, interchangeable eyepieces and a rotating binocular head for shared use.

Those who should look elsewhere include users needing fluorescence or digital imaging built in, and very occasional users who want a simpler, lighter instrument; this model is heavier and feature-rich relative to basic pocket microscopes.

Pros & Cons

Pros

• Broad magnification range up to 2000X with both WF10X and WF20X eyepieces allows flexible specimen study from overview to high detail.
• Durable full metal frame and coaxial dual-side focusing provide stable, repeatable adjustments for routine lab use.
• Included accessories such as 100 blank slides, 100 cover slips and lens cleaning paper make it ready for immediate use in classroom settings.
• Comfort features like the 45 degree inclined, swiveling binocular head and diopter adjustment improve long sessions and multi-user sharing.

Cons

• It lacks built-in camera or imaging output, so users who need digital capture will need additional adapters or accessories.
• The instrument is relatively substantial in weight and size, so it is less ideal for field portability.

Specifications

Brand	OMAX
Total magnification	40X, 80X, 100X, 200X, 400X, 800X, 1000X, 2000X
Eyepieces	Wide field WF10X and WF20X
Objectives	Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
Stage	Double layer X-Y mechanical stage 115mm x 125mm with scales
Condenser	Abbe NA 1.25 with iris diaphragm
Illumination and power	Transmitted LED, intensity adjustable; AC/DC adapter 7.5V/7.5W

Our Verdict

The OMAX 40X-2000X binocular compound LED microscope is a strong all-round choice for students and small teaching labs that need optical flexibility and rugged construction. It offers excellent value for users who require both low-power scanning and high-power oil immersion capability, plus useful accessories that let you start preparing slides right away.

Frequently Asked Questions

Does it include slides and cleaning supplies?

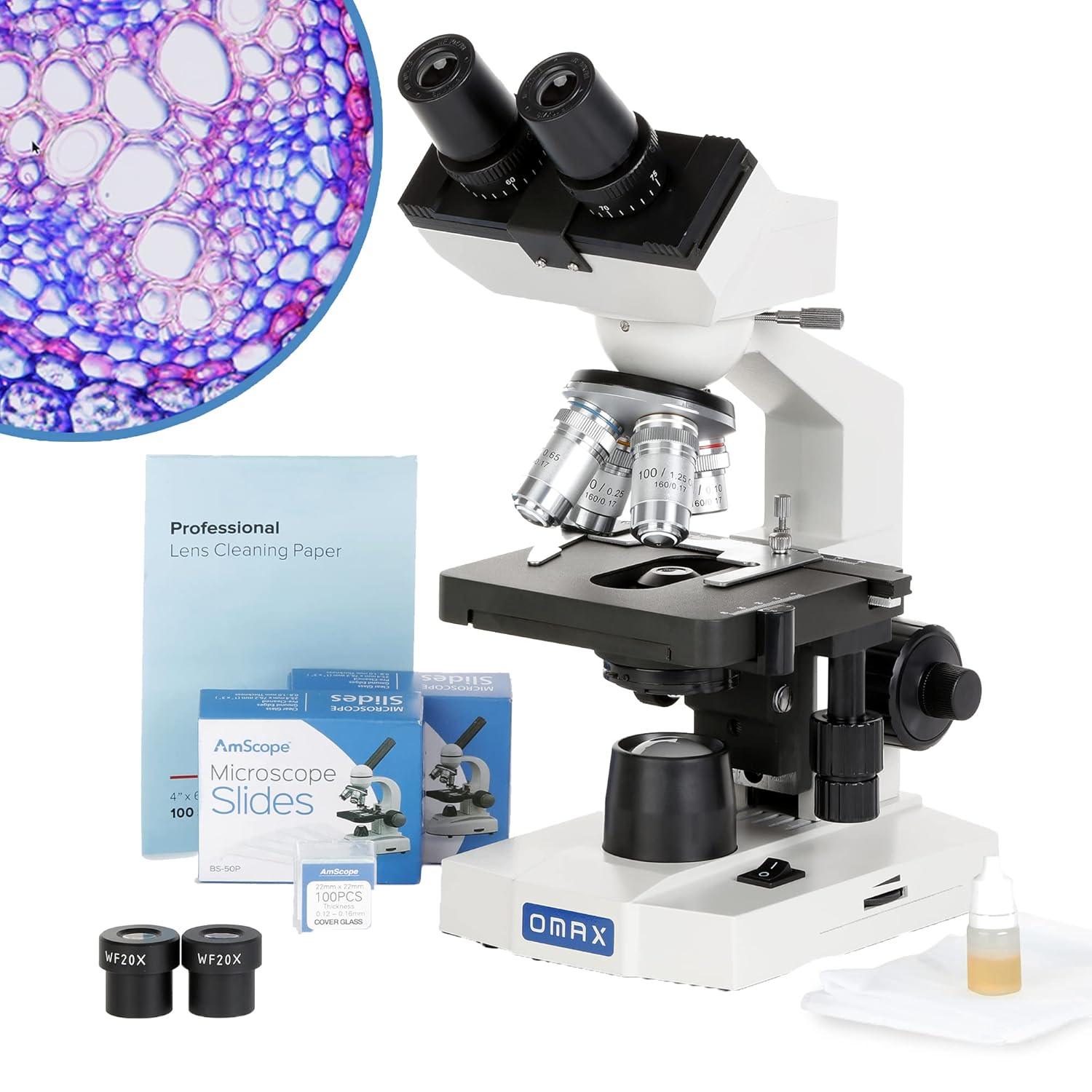

Yes, the microscope ships with 100 blank glass slides, 100 cover slips and 100-sheet lens cleaning paper.

Can two people use it at the same time?
Not simultaneously; it is a binocular design for a single user at a time, but the swiveling head and interpupillary adjustment make it easy to share between observers.

Is oil immersion supported?
Yes, the included 100X objective is a 100X(S, Oil) achromatic objective suitable for oil immersion work.
