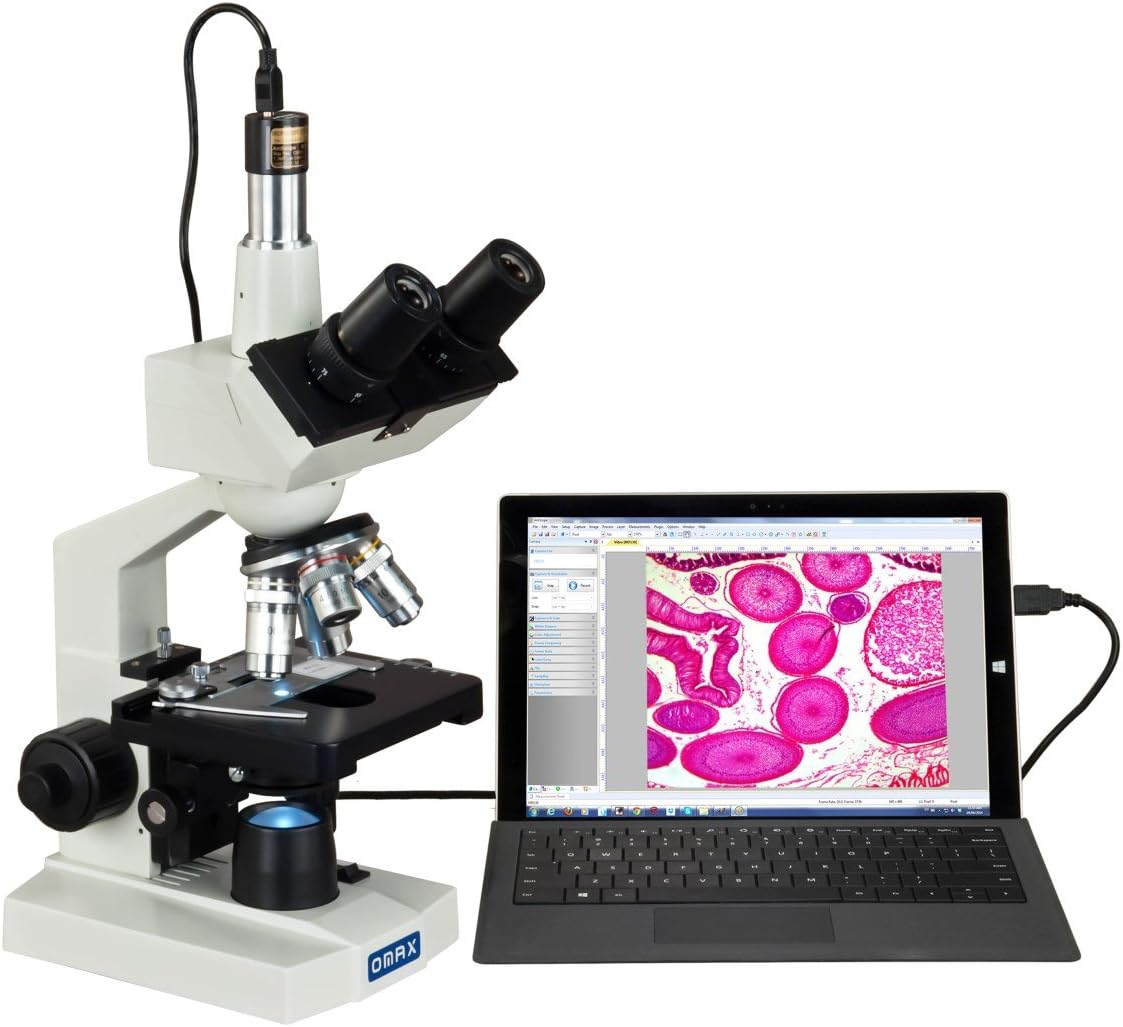

OMAX 40X-2000X Lab Trinocular Compound LED Microscope Review

The OMAX 40X-2000X Lab Trinocular Compound LED Microscope is an exceptional tool for both amateur and professional scientists. With a total magnification range of 40X to 2000X, this microscope allows for detailed observation of specimens, making it ideal for educational purposes and advanced research.

Equipped with wide field eyepieces of WF10X and WF20X, the microscope provides a comfortable viewing experience. The achromatic DIN objectives (4X, 10X, 40X(S), 100X(S, Oil)) ensure high-quality imaging, reducing chromatic aberrations and enhancing clarity. The 45-degree inclined and 360-degree swiveling trinocular head allows for easy sharing of views among multiple users.

One of the standout features of this microscope is its adjustable interpupillary distance, ranging from 2-3/16in to 2-15/16in (55mm to 75mm). This customization ensures that users can achieve optimal comfort and focus. Additionally, the ocular diopter is adjustable on both eyetubes, allowing for precise adjustments based on individual eyesight.

The revolving quadruple nosepiece makes switching between objectives seamless, while the mechanical double layer stage (4-1/2in x 4-15/16in) provides ample space for specimens. With an x-y stroke travel range of 2-13/16in x 1-3/16in (70mm x 30mm), users can easily navigate their samples.

Illumination is crucial for microscopy, and this model does not disappoint. The NA1.25 Abbe condenser with an iris diaphragm and transmitted LED light offers adjustable intensity, ensuring that specimens are well-lit for optimal viewing. The coaxial coarse and fine focus adjustment knobs on both sides allow for precise focusing, catering to various user preferences.

Constructed with all metal mechanical components, the OMAX microscope is built to last. It operates on an AC/DC adapter (100V-240V, UL approved), making it versatile for different environments. The included digital camera boasts true color resolution of 1280x1024 pixels (1.3MP) and supports frame speeds of 15fps at 1280x1024, 26fps at 640x512, and 50fps at 320x256.

This microscope is compatible with both Windows and Mac OS X operating systems, offering software for capturing still images, video recording, stitching, EDF, and measurement functions. The USB2.0 cable is included for easy connectivity. With a 5-year warranty against manufacturing defects, users can trust in the quality and reliability of this microscope.

In conclusion, the OMAX 40X-2000X Lab Trinocular Compound LED Microscope is a top-tier choice for anyone looking to explore the microscopic world. Its robust features, combined with user-friendly adjustments and high-quality imaging, make it a valuable addition to any laboratory or educational setting.
