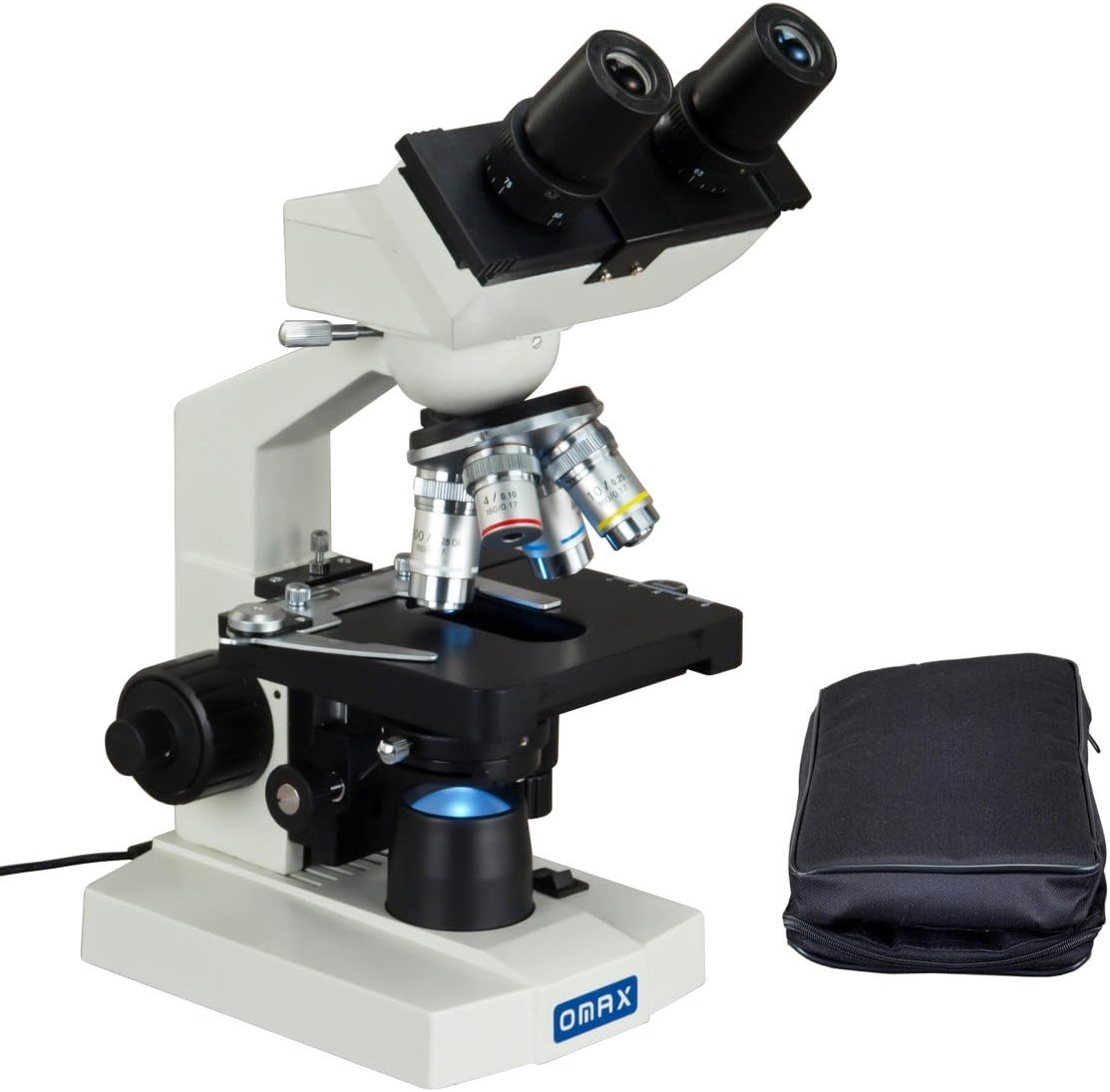

OMAX 40X-2500X Lab Binocular Compound Microscope - Versatile LED Scope

In this review of the OMAX 40X-2500X Lab Binocular Biological Compound LED Microscope the bottom line is simple: this is a versatile, well-equipped microscope for labs and classrooms that need wide magnification range and durable mechanics. The package combines a swiveling 45 degree binocular head, two pairs of widefield eyepieces, four achromatic objectives up to 100X oil, and a variable LED transmitted light, making it particularly useful where flexibility and image clarity across many magnifications matter.

Key Features

• Wide magnification range: Six magnification levels from 40X to 2500X let users move from low-power overview to high-power detail without changing instruments.
• Optical components: Achromatic DIN objectives and widefield WF10X/18 and WF25X eyepieces deliver clearer, flatter images for biological and educational work.
• Ergonomic viewing head: The 45 degree inclined binocular head that swivels 360 degrees and offers interpupillary adjustment makes extended observation and sharing comfortable.
• Stable precision stage: A double layer X-Y mechanical stage with scale and a 70mm x 30mm travel range supports accurate specimen positioning and repeatable framing.
• Adjustable illumination: NA1.25 Abbe condenser with iris diaphragm and LED transmitted light with intensity control provides consistent contrast for different sample types.
• Portability and protection: Lightweight all-metal mechanics come with a vinyl carrying case and a UL approved AC/DC adapter for safer transport and field use.

Who It's For

This microscope is aimed at high school and university biology labs, clinics doing routine slide work, and hobbyists who want a single unit that covers both low and very high magnifications. The combination of widefield eyepieces and achromatic objectives makes it suitable for stained slides, wet mounts, and teaching demonstrations.

Serious research labs requiring specialized optics or integrated imaging systems may prefer a research-grade instrument with dedicated camera integration and higher-end plan objectives, and those who need an included digital camera should note the camera is sold separately.

Pros & Cons

Pros

• Comprehensive magnification options from 40X to 2500X cover most educational and clinical needs.
• Durable all-metal mechanical components and a double layer mechanical stage improve longevity and precision.
• Comfort-focused binocular head with interpupillary and diopter adjustments supports extended use and multiple users.

Cons

• Digital camera is not included, so capturing images requires a separate purchase and connection hardware.

Specifications

Brand	OMAX
Magnification	40X, 100X, 250X, 400X, 1000X, 2500X
Eyepieces	Widefield WF10X/18 and WF25X (two pairs)
Objectives	Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
Condenser	Abbe NA1.25 with iris diaphragm
Stage	Double layer X-Y mechanical 115mm x 125mm, travel 70mm x 30mm
Power	AC/DC adapter DC7.5V 1000mA (Input 100-240VAC)

Our Verdict

The OMAX 40X-2500X is a solid value for educational institutions and clinics that need a single, flexible binocular compound microscope with reliable mechanics and wide magnification. It pairs practical ergonomics with adjustable LED illumination and a protective carrying case, making it a sensible purchase for teaching labs and serious hobbyists who will add an external camera if they need image capture.

Frequently Asked Questions

Can this microscope take photos?
Yes, it is easy to connect a USB digital camera (sold separately) to the viewing head to capture images or video to a computer.

Is oil immersion supported?
Yes, the 100X objective is designated for oil immersion and the condenser NA1.25 supports high-power imaging.

What warranty is provided?
The microscope includes a 5-year warranty against manufacturing defects.
