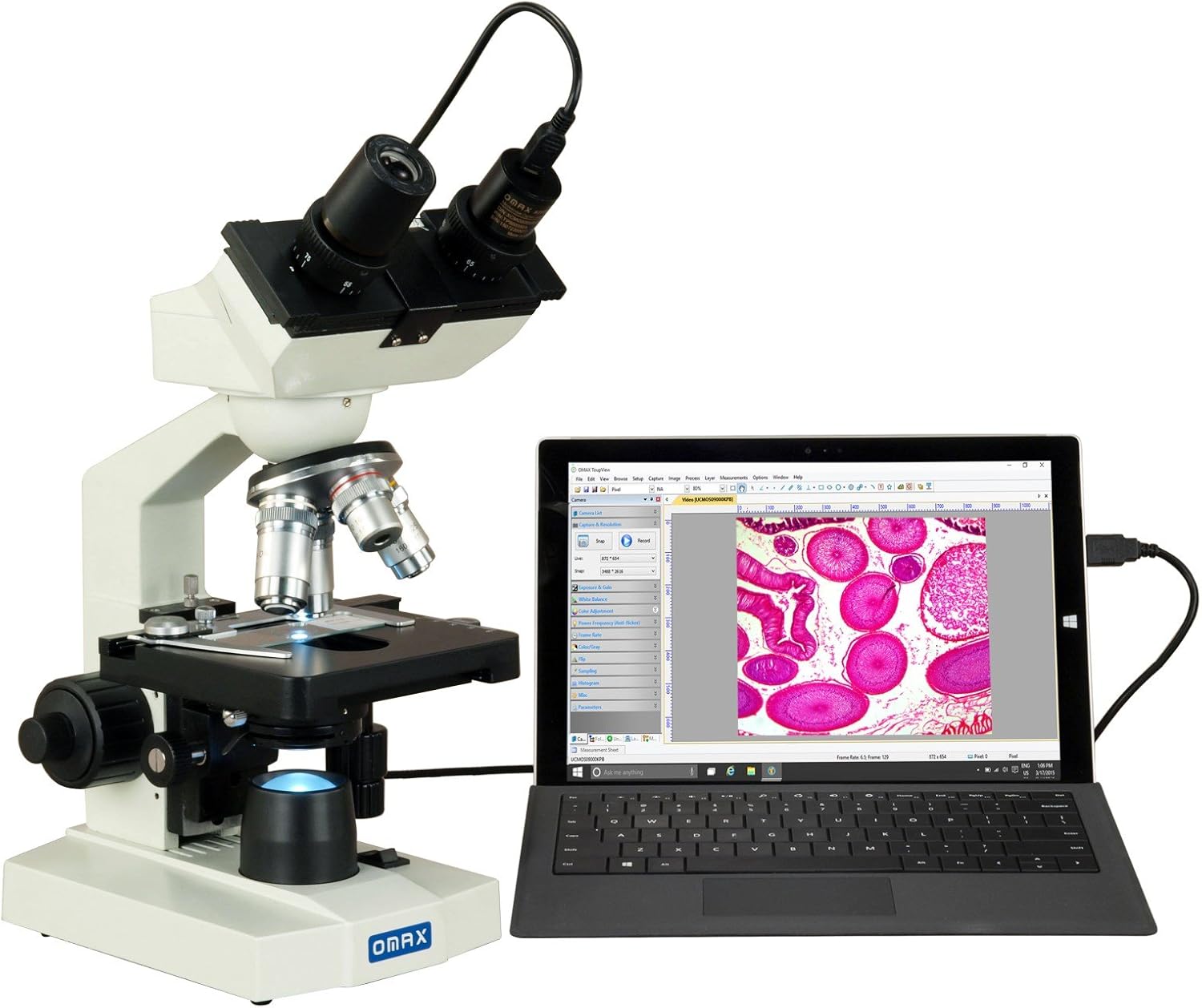

OMAX 40X-2500X LED Binocular Lab Compound Microscope - USB Camera

In this review the OMAX 40X-2500X LED binocular compound microscope is evaluated for lab and classroom use; it stands out primarily for combining a wide magnification range with an included digital imaging package. The reviewer found it best for students, hobbyists and small labs that need flexible magnification from low power up to oil-immersion levels and want to capture stills or live video on a computer. The integrated USB camera and user software make documentation straightforward, while the all-metal mechanical components and adjustable optics deliver stable, repeatable observations.

Key Features

• Broad magnification: Six magnification steps from 40X to 2500X allow inspection of specimens from gross structure to near oil-immersion detail.
• Dual eyepieces: Wide-field WF10X and WF25X eyepieces provide comfortable viewing and options for wider fields or higher apparent magnification.
• Achromatic objectives: A set of DIN achromatic 4X, 10X, 40X(S) and 100X(S, oil) objectives gives reliable color correction and useful working distances for routine lab work.
• Integrated imaging: The included 0.3MP USB camera streams 640x480 at 30fps and supports stills, video and stitching for documentation and teaching.
• Stable stage and focus: A stain-resistant double-layer mechanical stage with x-y travel and coaxial coarse and fine focusing on both sides offers precise sample positioning and focusing stability.
• Illumination and condenser: Variable LED transmitted illumination with an NA 1.25 Abbe condenser and iris diaphragm gives controlled contrast for thin specimens.

Who It's For

This microscope is well suited to secondary school biology labs, college teaching assistants, hobby microscopists and small research groups that need a single instrument for routine brightfield work and basic digital documentation. The swiveling 45 degree binocular head and adjustable interpupillary distance make it comfortable for extended use by multiple users.

It is less appropriate for advanced research needing very high-resolution cameras or specialized contrast techniques beyond brightfield; users requiring higher megapixel imaging or fluorescence will want a more specialized system. For most educational and general lab uses the included software and camera are a practical, cost-effective solution.

Pros & Cons

Pros

• Wide magnification range and achromatic objectives cover most routine microscopy tasks.
• USB camera with live view, image capture, EDF and stitching functions simplifies teaching and documentation.
• All-metal mechanical parts, mechanical stage and coaxial focus provide durable, precise handling.
• Variable LED illumination and NA 1.25 Abbe condenser offer good control over contrast and resolution.

Cons

• Camera resolution is modest at 640x480 (0.3MP), so images lack the detail of higher-megapixel sensors.
• Not designed for fluorescence or advanced imaging modalities without further upgrades.

Specifications

Magnification	40X, 100X, 250X, 400X, 1000X, 2500X
Eyepieces	Wide field WF10X and WF25X
Objectives	Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
Viewing head	45 degree inclined, 360 degree swiveling binocular
Stage	Double layer 115mm x 125mm, X-Y stroke 70mm x 30mm
Illumination	Variable LED transmitted, NA 1.25 Abbe condenser with iris
Camera & software	USB 0.3MP (640x480) camera, 30fps, Windows and Mac compatible

Our Verdict

The OMAX 40X-2500X binocular microscope is a solid value for education and general laboratory use because it combines durable mechanical build, a flexible magnification range including oil immersion, and a bundled USB camera for documentation. Buyers who need basic imaging, routine brightfield observation and a reliable mechanical stage will find this model a practical, cost-effective choice.

Frequently Asked Questions

Does the camera work with both Windows and Mac?
The USB camera is compatible with Windows and Mac OS X using the supplied software; check OS version compatibility before purchase.

Is the 100X objective oil immersion?
Yes, the 100X is an oil-immersion objective labeled 100X(S, Oil) and requires immersion oil for highest resolution.

What power options are available?
The microscope uses an AC/DC adapter rated 100V-240V (UL approved) for global compatibility.
