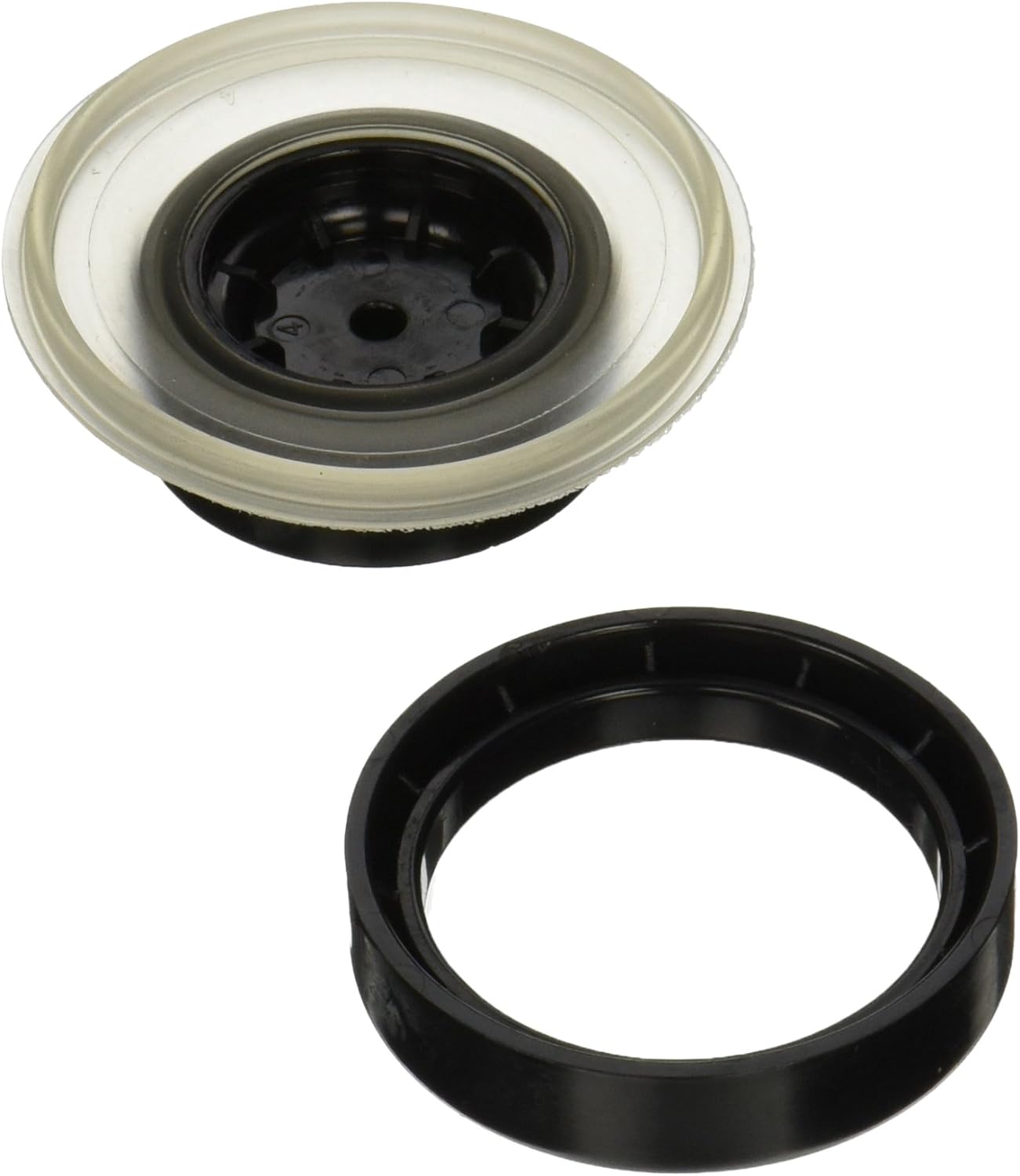

Orbit Jar-Top Diaphragm Replacement Kit - Easy Valve Repair

In this review the Orbit Jar-Top Diaphragm replacement kit is evaluated for homeowners and landscapers who need a simple, reliable fix for automatic sprinkler valves. The bottom line: this kit is best for anyone who wants a straightforward repair with durable parts that restore valve function without replacing the entire valve. Installation is quick and the santoprene diaphragm material is built to last, making it a practical, cost-conscious option for routine irrigation maintenance.

Key Features

• Direct replacement: The kit provides a jar-top diaphragm made to fit Orbit jar-top automatic valves to simplify repairs without special tools.
• Durable construction: The diaphragm uses proven santoprene material that resists wear and maintains a reliable seal for years of use.
• Easy installation: Designed for straightforward replacement so a homeowner or gardener can perform the repair quickly and get the sprinkler system back online.
• Cost effective: Replacing the diaphragm is a lower-cost alternative to swapping the entire valve, offering good value for routine maintenance.
• Repair kit format: Supplied as a kit so you receive the parts you need to replace the jar-top diaphragm and restore valve operation.

Who It's For

This diaphragm kit is aimed at homeowners, lawn care enthusiasts, and irrigation technicians who maintain underground sprinkler systems and want a simple way to fix jar-top automatic valves. It suits those comfortable doing minor plumbing on irrigation equipment and who prioritize durability and easy replacement.

It is not intended for users who need a full valve replacement, or for valve models that do not use a jar-top diaphragm design. If the valve body is cracked or the valve type differs from a jar-top Orbit-compatible model, a full valve replacement or professional diagnosis may be required.

Pros & Cons

Pros

• Durable santoprene construction offers long-lasting performance and resistance to wear.
• Simple, jar-top design makes the diaphragm easy to replace without complex tools.
• Good value compared with replacing the entire valve, saving time and money on routine repairs.

Cons

• Fit and leak prevention received mixed feedback; some users report fit issues so confirm compatibility with your specific valve model.

Specifications

Our Verdict

The Orbit jar-top diaphragm kit is a pragmatic repair option for anyone with a compatible jar-top automatic valve who wants an affordable, durable fix. Its santoprene construction and easy installation make it a smart choice for routine maintenance, while those with incompatible valves or serious valve body damage should consider other solutions or a full replacement.

Frequently Asked Questions

Will this diaphragm stop all leaks?
It restores the diaphragm seal in many cases, but some customers report mixed fit results; confirm valve model compatibility before purchase.

Is installation difficult?
No, the jar-top repair kit is designed for straightforward replacement and can usually be installed without specialized tools.

Is this a full valve replacement?
No, this kit replaces only the jar-top diaphragm; replace the whole valve if the valve body or other components are damaged.
