External 5-Bay Hard Drive Enclosure Compatible Thunderbolt 3/4 - Fast

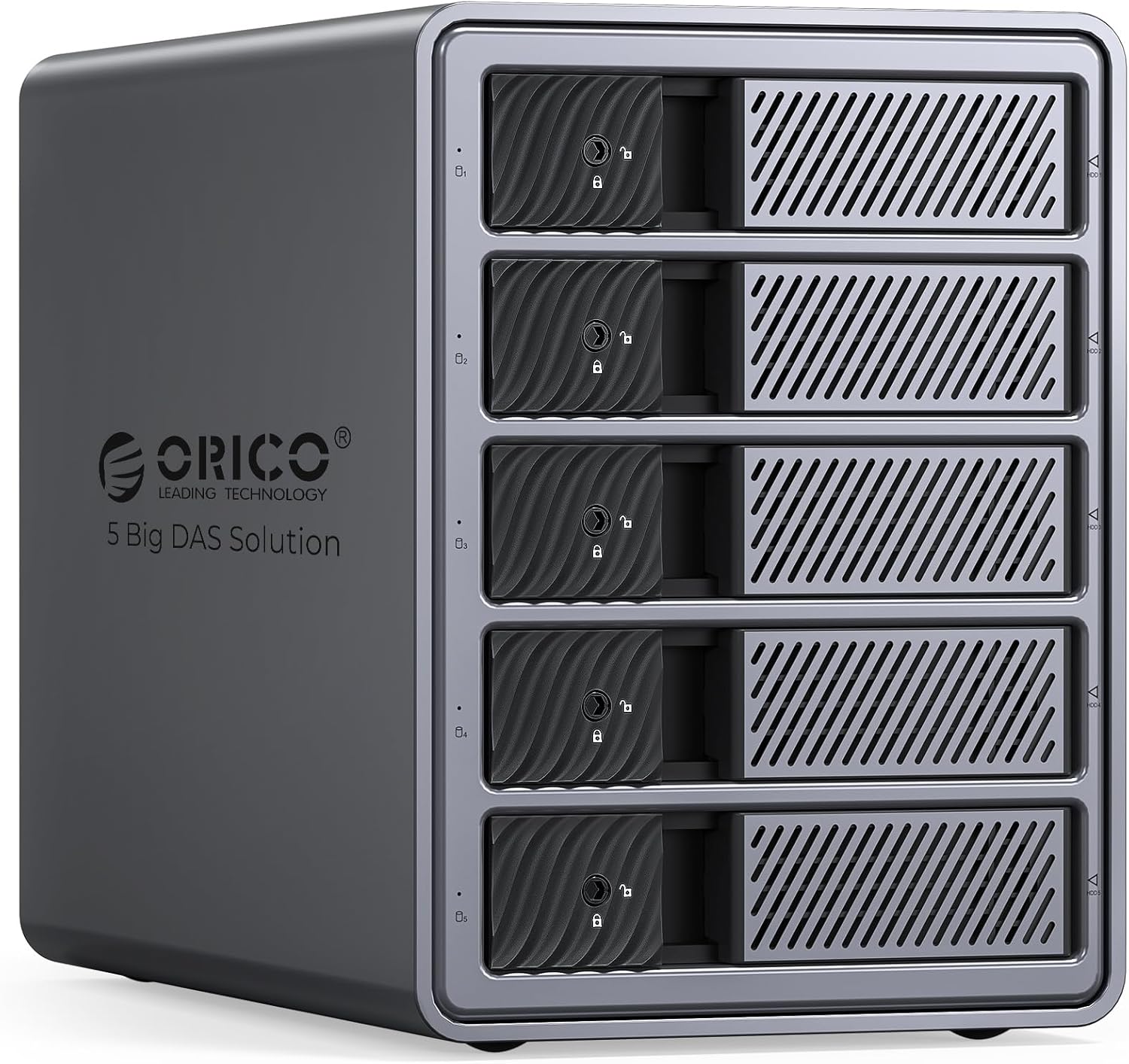

In this review of the ORICO External 5-bay Hard Drive Enclosure, the bottom line is simple: it is built for creators and storage-heavy workflows that need high-speed transfers and flexible video output. The enclosure focuses on raw throughput and expansion, offering a 40Gbps connection path for data and video when paired with a Thunderbolt 3 or 4 host, and it supports daisy chaining to scale capacity across multiple units. For anyone handling multi-camera footage or large datasets, its combination of speed, cooling and multi-monitor output makes it a strong choice.

Key Features

• 40Gbps data link: The enclosure links a 40Gbps output port to the host port for maximum throughput when used with Thunderbolt 3 or 4, minimizing transfer bottlenecks.
• Dedicated high-speed USB C port: A separate 40Gbps USB C port supports fast connection to PSSDs or other high-speed devices for quick staging and editing.
• Daisy chaining expansion: Supports up to three devices in series to expand total capacity to 330TB, making multi-device workflows straightforward.
• Video output flexibility: Includes a DP1.4 port plus a 40Gbps type C hub interface to drive dual 4K60 displays or a single 8K30 monitor for editing and monitoring.
• Thermal and power design: An aluminum alloy body, large quiet 80mm fan and built-in 150W power supply keep multiple drives cool and stable under sustained loads.
• Drive compatibility: Works with 2.5in and 3.5in SATA drives up to 22TB per bay, offering high per-bay capacity for long-term archiving.

Who It's For

This enclosure is best for video editors, content creators and IT users who need a high-throughput, multi-bay external storage solution and who have a host system with Thunderbolt 3 or 4. The unit is particularly useful when large files must be transferred quickly between drives or when an editor needs external displays driven directly from the enclosure.

It is not ideal for users with only standard USB-A hosts or those who require hardware RAID, since the product does not support RAID mode. Casual users with light backup needs or people without Thunderbolt-capable systems should look for simpler, lower-cost enclosures instead.

Pros & Cons

Pros

• High sustained transfer rates via a true 40Gbps path to the host when using Thunderbolt 3/4.
• Flexible video output supporting dual 4K60 or single 8K30 displays for monitoring and playback.
• Robust thermal design with aluminum body, large quiet fan and a built-in 150W power supply for stable multi-disk operation.
• Expandable storage through daisy chaining up to three enclosures for large archive needs.

Cons

• Requires a Thunderbolt 3 or 4 host to access full 40Gbps performance, which limits compatibility with some systems.
• Does not support RAID modes, so users needing hardware RAID must look elsewhere or configure software solutions.

Specifications

Interface	Thunderbolt 3/4 compatible 40Gbps host link; 40Gbps USB C and DP1.4 for video
Bays	5-bay SATA enclosure (2.5in and 3.5in supported)
Maximum per drive	Supports SATA drives up to 22TB each
Maximum capacity	110TB per unit, expandable to 330TB via daisy chaining
Video output	DP1.4 + Type-C hub: dual 4K60 or single 8K30 (Mac M1/M2/M3 limited to 4K60)
Cooling & power	Aluminum alloy chassis, 80mm quiet fan, built-in 150W power supply

Our Verdict

The ORICO 5-bay enclosure is a practical, high-speed option for professionals who need multi-drive capacity and direct video output. Its 40Gbps data path, solid cooling and daisy chain expansion deliver real value for editors and data managers with Thunderbolt-equipped systems, although those who need RAID or who lack Thunderbolt should consider alternatives.

Frequently Asked Questions

Does it work with non-Thunderbolt USB hosts?
It requires Thunderbolt 3 or 4 to access the full 40Gbps host link; non-Thunderbolt USB hosts will not achieve the same throughput.

Can I use software RAID with this enclosure?
The enclosure does not support hardware RAID modes; software RAID may be possible depending on the host OS but is not provided by the unit.

How many enclosures can be daisy chained?
The unit supports daisy chaining up to three devices to expand total storage to 330TB.
