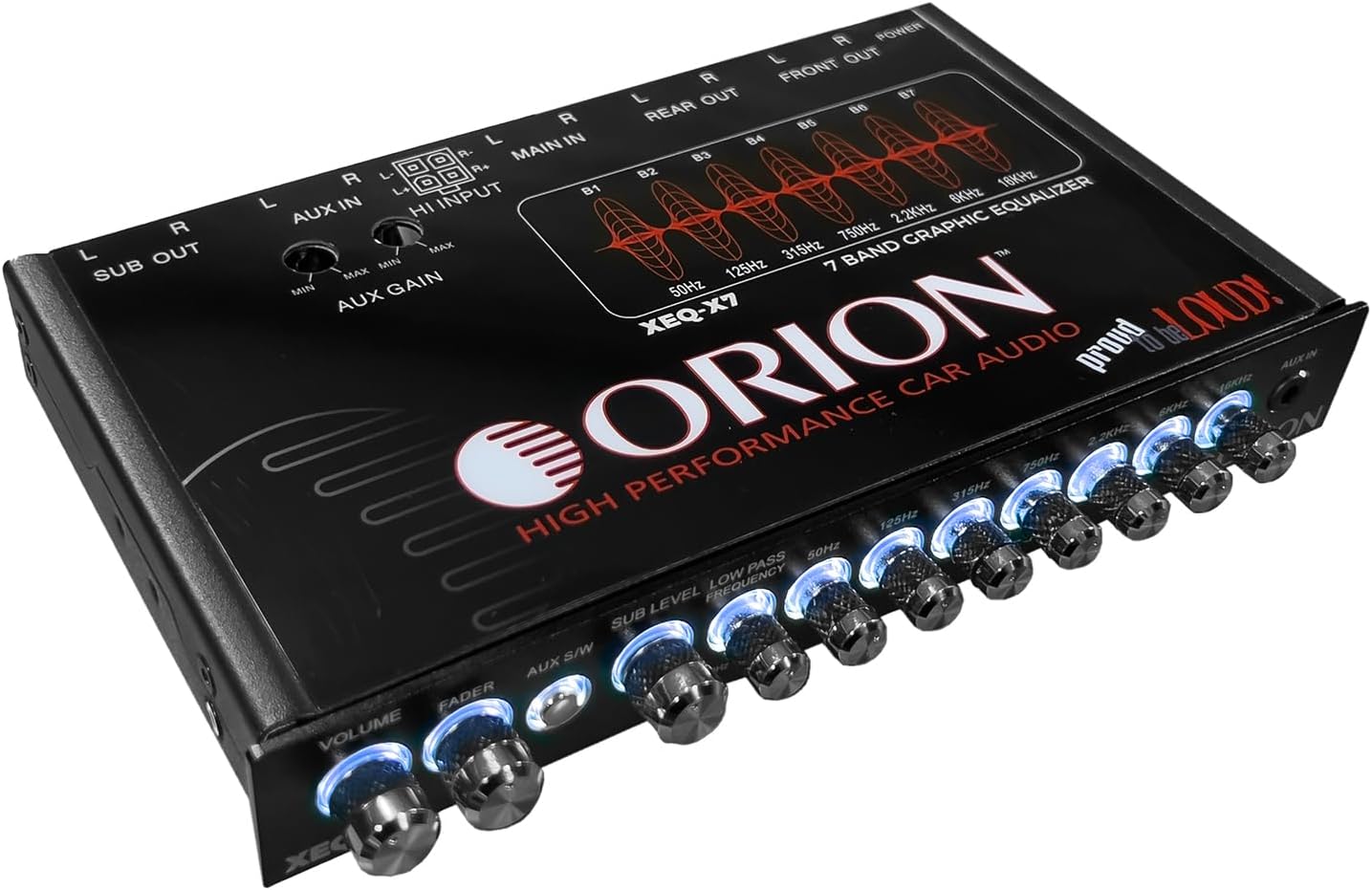

Orion XEQ-X7 7-Band Graphic Equalizer - Precise Bass & Tone Control

Our review of the Orion XEQ-X7 finds it a compact, feature-focused solution for drivers who want fine-grained control over car audio without a lot of installation fuss. It is best for DIY installers and audiophiles who need a true 7-band graphic interface and dedicated subwoofer management; the single biggest reason to buy is its combination of seven adjustable frequency bands and a variable low pass filter so both mids/highs and bass can be tuned independently in a single half-DIN unit.

Key Features

• Seven adjustable bands: Precise control of 50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6kHz and 16kHz lets users sculpt bass, midrange and treble with up to 12dB of boost or cut.
• High and low inputs: Both high-level speaker inputs and low-level RCA inputs provide flexibility for modern head units and older systems during integration.
• Front AUX input: The 3.5mm front panel auxiliary jack gives easy access for portable devices without rewiring the main head unit.
• Subwoofer level control: Dedicated sub output with an adjustable level and variable low pass filter lets you dial in bass punch without overpowering the rest of the mix.
• Half-DIN form factor: Compact size fits most dash openings so you can add true graphic EQ functionality without sacrificing a full stereo receiver.

Who It's For

The XEQ-X7 is ideal for car audio enthusiasts who want a tactile, hands-on equalizer to fine-tune a system with a separate amp or powered subwoofer; installers who need both high-level and RCA connectivity will appreciate the flexibility. It also suits owners of older head units who lack onboard EQ options but still want precise tone shaping.

It is less appropriate for casual users who prefer automatic or app-based tone correction, or for those who need a full-featured head unit replacement with source control and display; this unit is purely an outboard EQ and requires some familiarity with signal routing and level matching.

Pros & Cons

Pros

• Comprehensive seven-band control provides detailed tone shaping across the audible spectrum.
• Flexible connectivity with both high-level and RCA inputs simplifies integration into many systems.
• Dedicated sub output and low pass filter allow clean bass management without altering main channel EQ.

Cons

• Half-DIN size means limited front-panel real estate, so controls are compact and require careful adjustment.

Specifications

Brand	ORION
Type	7-band graphic equalizer
Frequency bands	50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6kHz, 16kHz
Boost/Cut	12dB per band
Inputs	High-level speaker and low-level RCA
Auxiliary	Front 3.5mm AUX input
Sub output	Dedicated with variable low pass filter

Our Verdict

The Orion XEQ-X7 is a compact, no-nonsense graphic equalizer that delivers precise tonal control and practical connectivity for aftermarket car audio systems. It is good value for anyone who wants hands-on tuning and subwoofer management without replacing the head unit, offering a useful balance of features in a half-DIN package.

Frequently Asked Questions

Does it accept speaker-level inputs?
Yes, the unit supports high-level (speaker) inputs so it can be connected to factory or aftermarket head units that lack RCA outputs.

Can I connect a powered subwoofer?
Yes, the XEQ-X7 provides a dedicated subwoofer output with adjustable level and a variable low pass filter suitable for feeding an external amp or powered sub.

Is the front AUX suitable for phones?
Yes, the 3.5mm front AUX input allows direct connection of portable devices for temporary source playback.
