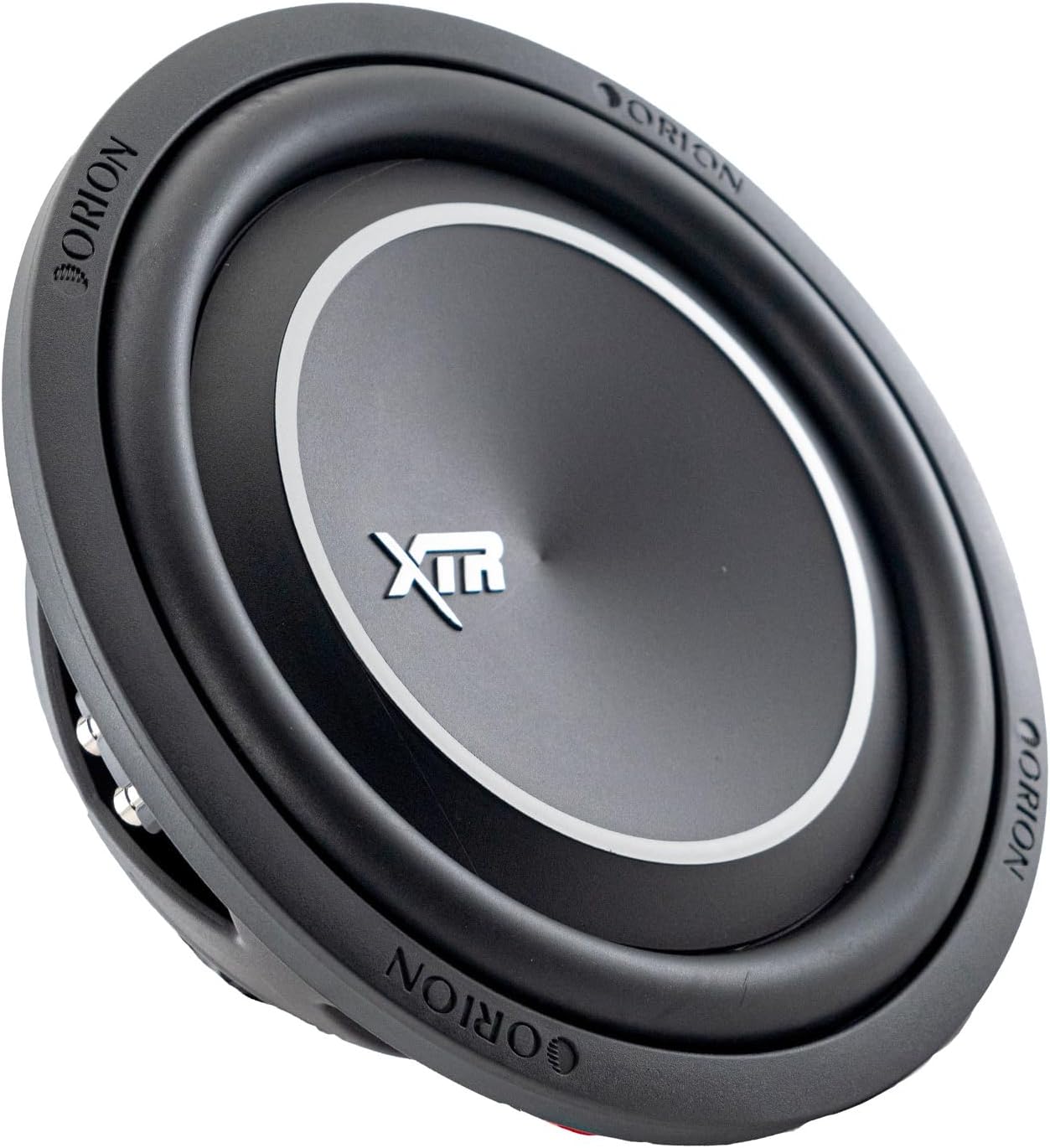

ORION XTR12SWD2 Shallow Mount 12 Subwoofer - Compact Deep Bass

In this review the ORION XTR12SWD2 is evaluated as a focused option for builders who need real bass from a compact driver. The bottom line: it is for car audio enthusiasts who need a slim subwoofer that can fit under seats or in tight enclosures while still delivering strong low-end impact. The single biggest reason to buy is its combination of a shallow 3.58in mounting depth and a 500W RMS rating, which together enable clean, powerful bass in installations where a regular deep driver will not fit.

Key Features

• Shallow mount design: The 3.58in mounting depth makes it possible to install the subwoofer in under-seat or shallow rear-deck spaces where standard subs cannot fit, while keeping consistent bass output.
• Dual 2 ohm voice coils: Two 2 ohm coils provide flexible wiring options for series or parallel hookups, helping match the sub to a variety of amplifiers and system configurations.
• High power handling: With 500W RMS and 2000W max, the driver can play loud when needed while maintaining headroom for dynamic passages.
• Durable cone and surround: A UV coated paper/fiber blend cone and NBR surround improve longevity and resist wear from repeated excursion and sunlight exposure.
• Tuned frequency response: The 28 Hz to 300 Hz range and 85 dB sensitivity deliver deep, responsive low-end that supports both punchy tracks and sub-bass content without sounding muddy.

Who It's For

The ORION XTR12SWD2 is best for car audio installers and DIY enthusiasts who need a compact subwoofer that still produces notable low-frequency output, particularly in tight spaces like under seats, small trunks, or rear decks. It suits systems where space is limited but bass performance cannot be sacrificed.

Those who should look elsewhere include audiophiles demanding the absolute lowest distortion at extreme SPLs from large enclosure-optimized subwoofers, and users seeking wireless or preassembled powered sub solutions; this is a passive sub that needs a compatible amplifier and suitable enclosure or sealed/ported installation.

Pros & Cons

Pros

• Compact shallow-mount profile lets it fit where conventional subs cannot, without major compromise to output.
• Flexible wiring thanks to dual 2 ohm voice coils, making amplifier matching easier in custom systems.
• Robust build with a UV coated cone and NBR surround for reliable long-term performance in vehicle environments.

Cons

• Some users reported reliability concerns under heavy use, so it may require conservative power tuning and proper enclosure design to avoid premature failure.

Specifications

Diameter	12 in
Mounting depth	3.58 in
Power (RMS / Max)	500W RMS / 2000W Max
Voice coil	Dual 2 ohm
Cone & surround	UV coated paper/fiber blend cone, NBR surround
Sensitivity	85 dB
Frequency response	28 Hz - 300 Hz

Our Verdict

The ORION XTR12SWD2 is a strong value for anyone needing a shallow 12in that still delivers impactful bass; its shallow 3.58in profile, solid power handling, and durable materials make it a practical choice for tight car audio installs. With sensible amplifier matching and a proper enclosure, it offers a compelling balance of size, power, and cost for most compact build projects.

Frequently Asked Questions

Can this sub be used under a car seat?
Yes, the 3.58in mounting depth is specifically designed for tight spaces like under-seat installs, but ensure clearance for wiring and ventilation.

What amplifier power is recommended?
Use an amplifier that provides up to 500W RMS to match the subwoofer's RMS rating; conservative tuning and proper gain setting will help avoid damage.

How should the dual voice coils be wired?
You can wire the dual 2 ohm coils in series or parallel to achieve the impedance best suited to your amplifier; choose wiring that yields a safe impedance match for your amp.
