P-T100 1in Tube Contour Tool - Fast, Accurate Layouts

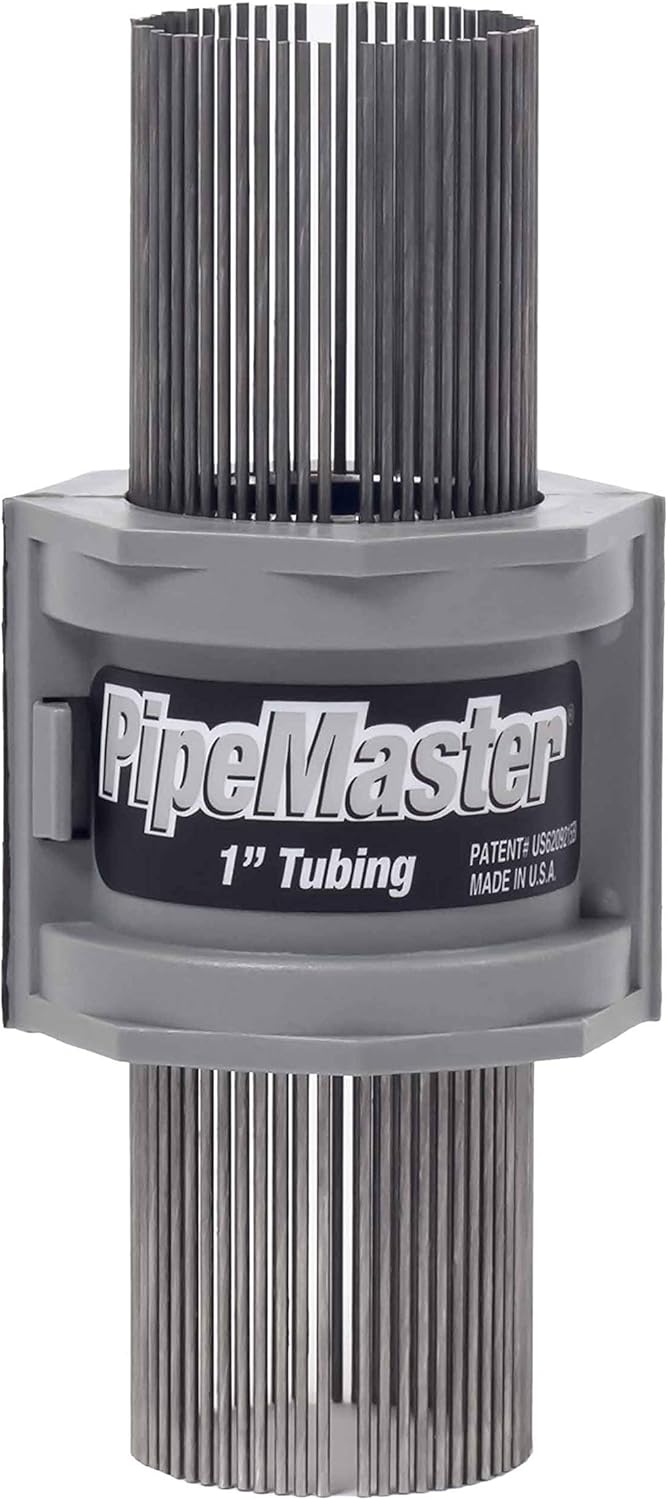

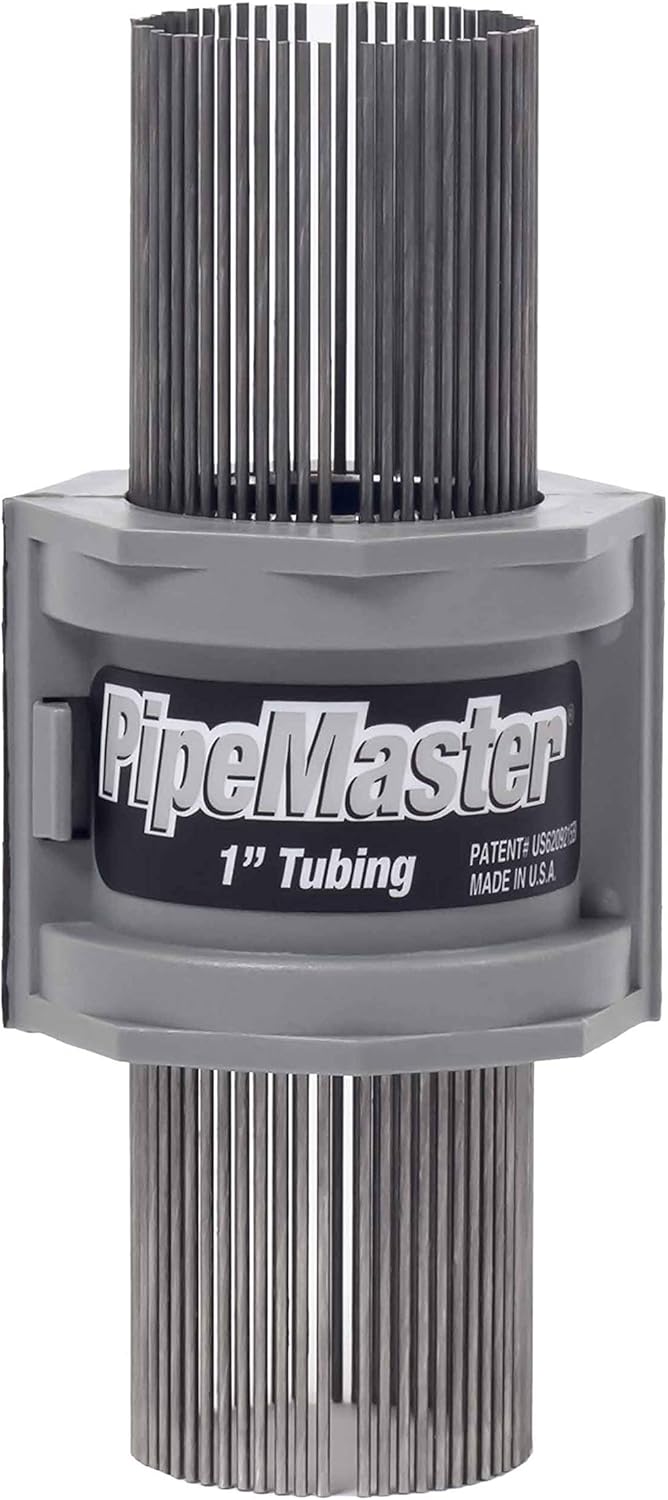

In this review of the P-T100 1in Tube, the bottom line is simple: this is a practical layout tool for welders who need fast, repeatable contour transfers for tube joints. Built around a 6061 aluminum inner core with spring temper stainless steel pins and housed in rugged ABS, the P-T100 is aimed at automotive, marine and industrial welding pros who value accuracy and reduced rework. Its main reason to buy is the ability to transfer complex tube profiles in seconds so cutters and welders spend less time fitting and more time welding.

Key Features

• Spring Temper Stainless Steel Pins: deliver resilient, repeatable pin travel so contours reproduce accurately without deforming soft materials.
• 6061 Aluminum Inner Core: gives the tool a rigid, lightweight spine that resists bending during pressing and tracing operations.
• Rugged ABS Housing: protects the internal mechanism from shop impacts and grime while keeping the tool comfortable to handle.
• Instant Profile Transfer: press the tool to the tube intersection, transfer the pattern, and trace directly to save layout time on complex joints.
• Cleaner Fitups: accurate transfers reduce recutting and grinding, cutting down material waste and shop hours.

Who It's For

The P-T100 is best suited to fabricators and welders who regularly fit tubes in tight, compound-angle joints - especially automotive builders, marine riggers and industrial maintenance crews who need predictable fits. If you frequently make branch cuts and saddle joints, the quick press-and-trace workflow speeds layout compared with manual scribing.

Welders who rarely work with tubing, or users who need electronic measurement tools or digital profiling for CAD transfer, should look elsewhere; the P-T100 is a straightforward mechanical profiler focused on shop speed and robustness rather than digital data capture.

Pros & Cons

Pros

• Stainless steel spring pins provide consistent, repeatable pattern transfer for cleaner fits.
• 6061 aluminum core balances stiffness and light weight for comfortable repeated use.
• ABS housing stands up to shop bumps and makes the tool easy to grip during layout work.

Cons

• Mechanical transfer means no digital output for CAD workflows, limiting use in high-tech fabrication shops.

Specifications

Product name	P-T100 (1in Tube)
Pin material	Spring temper stainless steel
Inner core	6061 aluminum
Housing	Rugged ABS
Primary use	Tube contour layout for welding
Typical users	Automotive, marine, industrial welders

Our Verdict

The P-T100 is a no-nonsense contour tool that earns its keep in shops that do a lot of tube fitting. Its durable construction and accurate stainless steel pins speed layout and reduce wasted material, making it good value for fabricators who want a mechanical, reliable way to transfer tube profiles without fuss.

Frequently Asked Questions

Can the P-T100 handle different tube diameters?
The P-T100 is designed specifically for 1in tube profiling; it is optimized for that diameter and provides best accuracy on tubes near that size.

Is the tool durable for heavy shop use?
Yes. The combination of a 6061 aluminum inner core with a rugged ABS housing and stainless pins is intended for repeated shop use and impact resistance.

Does it output digital profiles?
No. The P-T100 is a mechanical transfer tool for tracing and scribing; it does not provide digital or CAD output.
