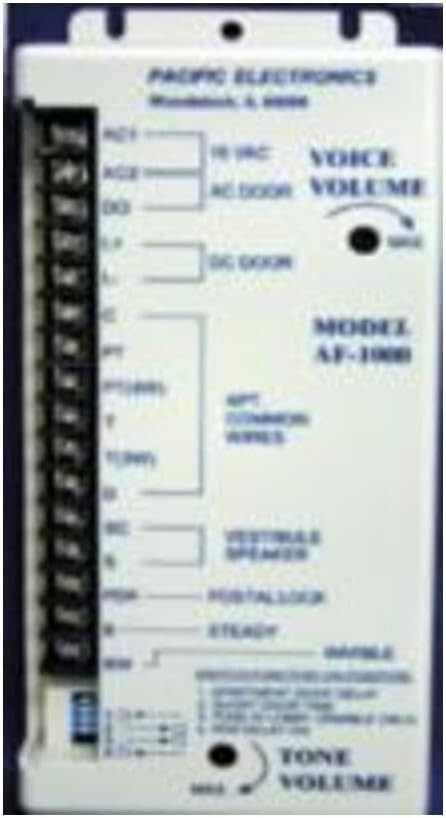

Pacific Electronics AF1000 Amplifier for 3-6 Wire Speaker Stations

Our review of the Pacific Electronics AF1000 shows it is a practical choice for installers and building managers who need a single-entry amplifier to run speaker-type apartment intercoms. The bottom line: the AF1000 is valued for its straightforward, universal compatibility with 3, 4, 5 or 6 wire speaker stations and for consolidating amplification, signaling, and power functions into one unit. For systems using legacy Pacific, Jeron, Tek-Tone or Mircon stations, this amplifier simplifies replacement and keeps an intercom system functional without sourcing brand-specific boards.

Key Features

• Universal wiring support: Works with 3, 4, 5 or 6 wire speaker type stations so installers can reuse various existing station wiring without swapping models.
• Integrated amplification: Provides the amplifier circuitry needed to drive apartment speaker stations, reducing the need for separate amps.
• Signaling and power: Includes signaling and power circuitry to operate a complete intercom system from a single chassis, simplifying system layout.
• Replacement compatibility: Serves as a universal replacement for many Pacific, Jeron, Tek-Tone and Mircon setups, easing maintenance for older systems.
• Documentation included: Ships with a wiring diagram so technicians have immediate guidance for installation and any necessary rewiring.

Who It's For

The AF1000 is aimed at building maintenance teams, electricians and intercom installers who maintain multi-unit residential or small commercial intercom systems. Owners of older systems that used Pacific, Jeron, Tek-Tone or Mircon station hardware will find the universal approach convenient when a dedicated amplifier board is no longer available.

It is not targeted at consumers seeking a high-end audio amplifier or modern IP intercoms; those needing networked features or advanced audio processing should look to digital intercom solutions instead. Also, systems without a prior AF1000 may require rewiring, so budget for installation time if you are retrofitting.

Pros & Cons

Pros

• Broad compatibility with 3 to 6 wire speaker stations makes it flexible for retrofit projects.
• Combines amplification, signaling and power circuitry so fewer separate components are required.
• Wiring diagram included, which speeds up installation and reduces guesswork for technicians.

Cons

• May require rewiring on systems that never had an AF1000, adding installation time and cost.

Specifications

Model	AF1000
Compatible wiring	3, 4, 5 or 6 wire speaker stations
Function	Amplification, signaling and power circuitry
Intended use	Apartment intercom systems
Compatibility	Replacement for Pacific, Jeron, Tek-Tone, Mircon and similar
Documentation	Wiring diagram included

Our Verdict

The Pacific Electronics AF1000 is a practical, workmanlike amplifier for technicians who need a universal replacement to keep speaker-type apartment intercoms operating. It delivers value through compatibility and integrated circuitry, making it a sensible buy for maintenance crews and installers; those wanting networked or modern IP features should consider other options.

Frequently Asked Questions

Will this amplifier work with my existing Pacific intercom stations?
The AF1000 is designed as a universal replacement and supports many Pacific speaker-type stations, as well as Jeron, Tek-Tone and Mircon models.

Do I need extra equipment to use the AF1000?
No separate amplifier is required because the AF1000 provides amplification, signaling and power circuitry, but some systems may need rewiring if an AF1000 was not previously installed.

Is a wiring diagram provided?
Yes, the product ships with a wiring diagram to guide installation and connections.
