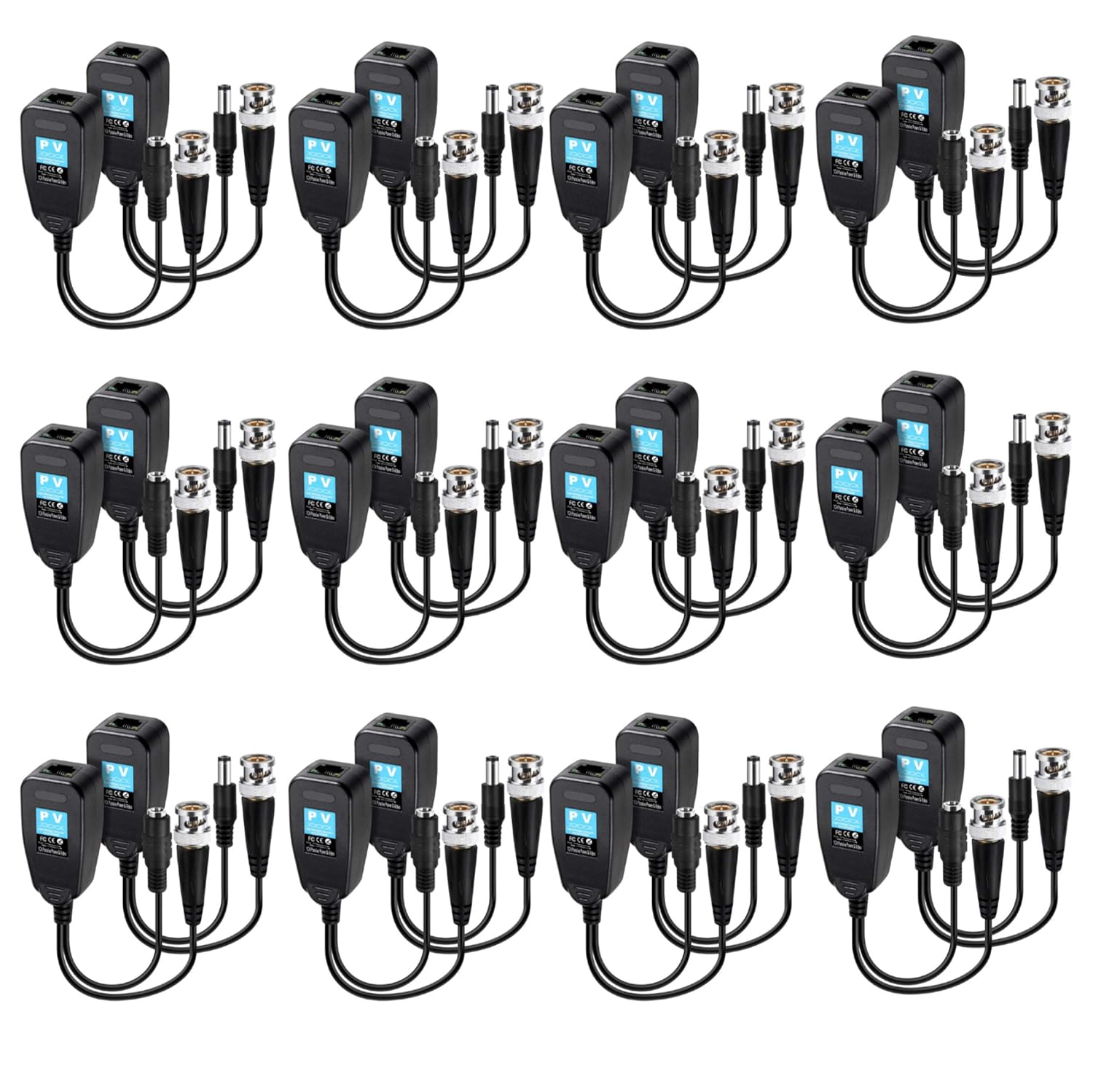

Passive Video Balun 12 Pairs HD-CVI/TVI/AHD - 24pcs Kit for CCTV

In this review of the Passive Video Balun 12 Pairs HD-CVI/TVI/AHD kit, the bottom line is straightforward: this is a practical, cost-conscious solution for installers who need to transmit HD video and power over UTP cable to multiple CCTV cameras. The reviewer found the 12-pair set useful for small to medium multi-camera installs because the gold plated BNC connectors and RJ45 power/data passthrough make reliable HD-CVI/TVI/AHD transmission over CAT5 straightforward, and the included LED indicators simplify troubleshooting during setup.

Key Features

• 12 Pairs Included: The kit supplies 12 pairs (24 pieces) of passive baluns so a full small multi-camera system can be wired without buying additional adapters.
• Gold Plated BNC: Gold plating on the BNC ends improves contact quality and supports longer, clearer HD signal transmission compared with plain connectors.
• Multi-Format Compatibility: Works with CVI, TVI, CVBS and AHD video devices and supports up to 2MP resolutions for common 720P/960P/1080P cameras.
• Power and Video Over UTP: Video transmission via UTP CAT5 reduces coax runs and can carry power alongside video using the provided RJ45 connector and power pass-through.
• LED Status Indicator: RJ45-mounted LEDs show a green working state or yellow fault state, making it easier to identify wiring or connection issues on site.
• Simple Installation: The package includes a specification sheet and straightforward steps so installers can terminate ethernet cable quickly and reduce labor time.

Who It's For

This kit is aimed at installers, small business owners, and DIYers who need to run multiple CCTV cameras and want to reduce coax cabling by using existing or new UTP CAT5 runs. It is especially helpful when budget and speed of installation matter, since one kit covers a dozen camera connections and the LED indicators speed troubleshooting.

It is not targeted at very high resolution or long-haul professional installations that require active extenders, fiber, or power-over-ethernet switches; for cameras above 2MP or runs significantly longer than typical UTP limits, users should evaluate active or fiber-backed options instead.

Pros & Cons

Pros

• Includes 12 pairs so multiple cameras can be deployed without additional purchases.
• Gold plated BNC connectors improve transmission quality for HD signals.
• Compatible with CVI, TVI, CVBS and AHD formats, making it versatile across common DVR systems.
• LED indicators at the RJ45 make on-site troubleshooting faster and clearer.

Cons

• Passive design limits use to around 2MP cameras; not ideal for higher resolution or very long distance runs.
• Requires correct UTP wiring and attention to power routing since it is not an active PoE solution.

Specifications

Model Pack	12 Pairs (24 pcs)
Connector Type	Gold plated BNC and RJ45
Video Formats	CVI, TVI, CVBS, AHD
Maximum Camera Resolution	Up to 2MP (720P/960P/1080P)
Transmission Medium	UTP CAT5 twisted pair
Indicator	LED on RJ45 (green working, yellow fault)
Included Documentation	Installation specification and steps

Our Verdict

For installers and small sites that need an affordable, no-frills way to run multiple HDTV-formatted CCTV cameras over UTP, this 12-pair passive balun kit delivers good value. The gold plated BNCs, multi-format compatibility, and LED status indicators make common installations quicker and more reliable, while the passive design keeps cost and complexity down. Choose this kit when working with 720P-1080P cameras on typical CAT5 runs.

Frequently Asked Questions

Can these baluns carry power as well as video?
Yes, the design supports power transmission alongside video via the RJ45 wiring, but it is not active PoE so correct wiring and power sourcing are required.

Will they work with my DVR and AHD cameras?
They are compatible with CVI, TVI, CVBS and AHD devices and are suitable for DVRs and recorders that accept those video formats up to 2MP.

How do the LED indicators help during installation?
The RJ45 LEDs show green when the connection is working and yellow if there is a fault, which helps identify bad terminations or wiring problems quickly on multiple runs.
