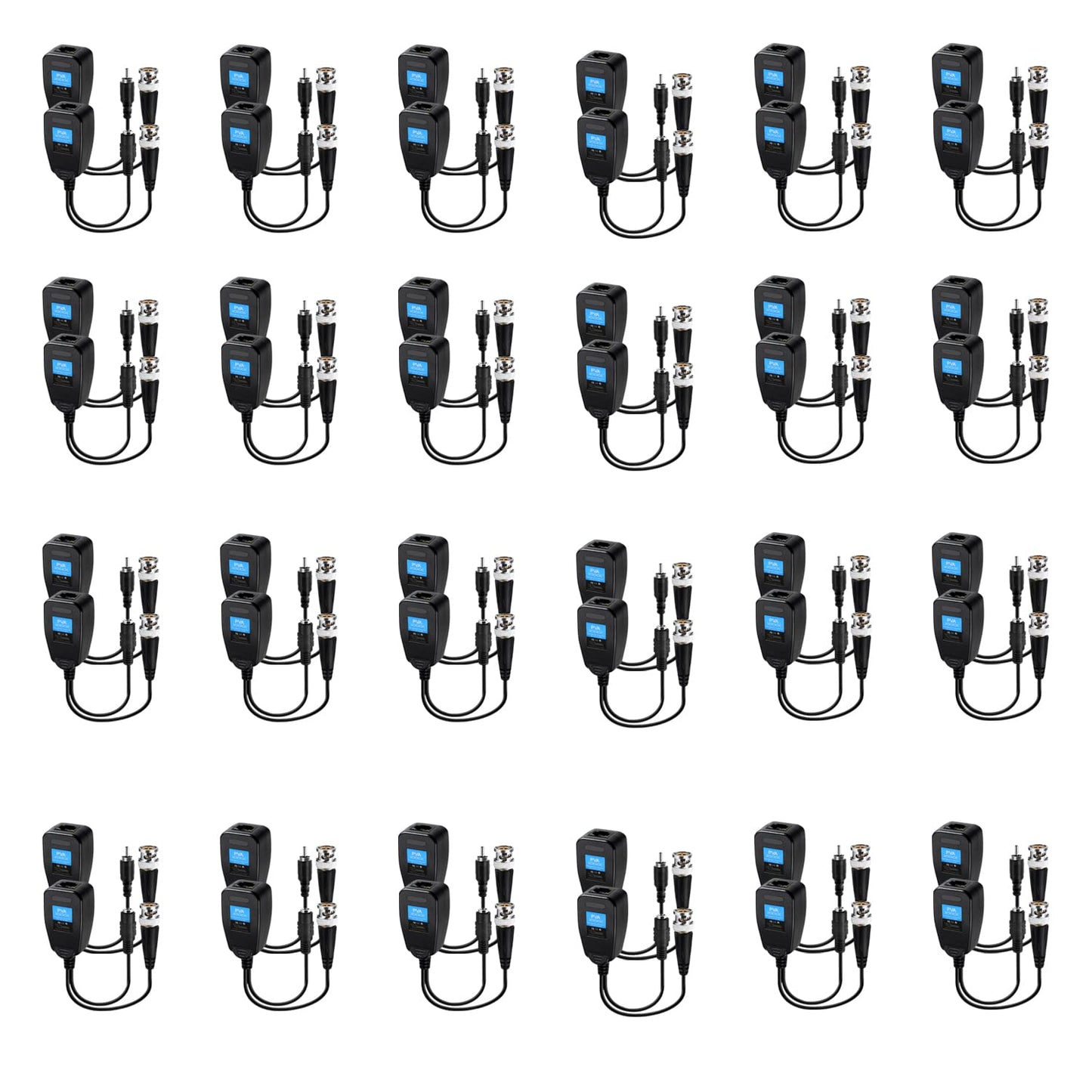

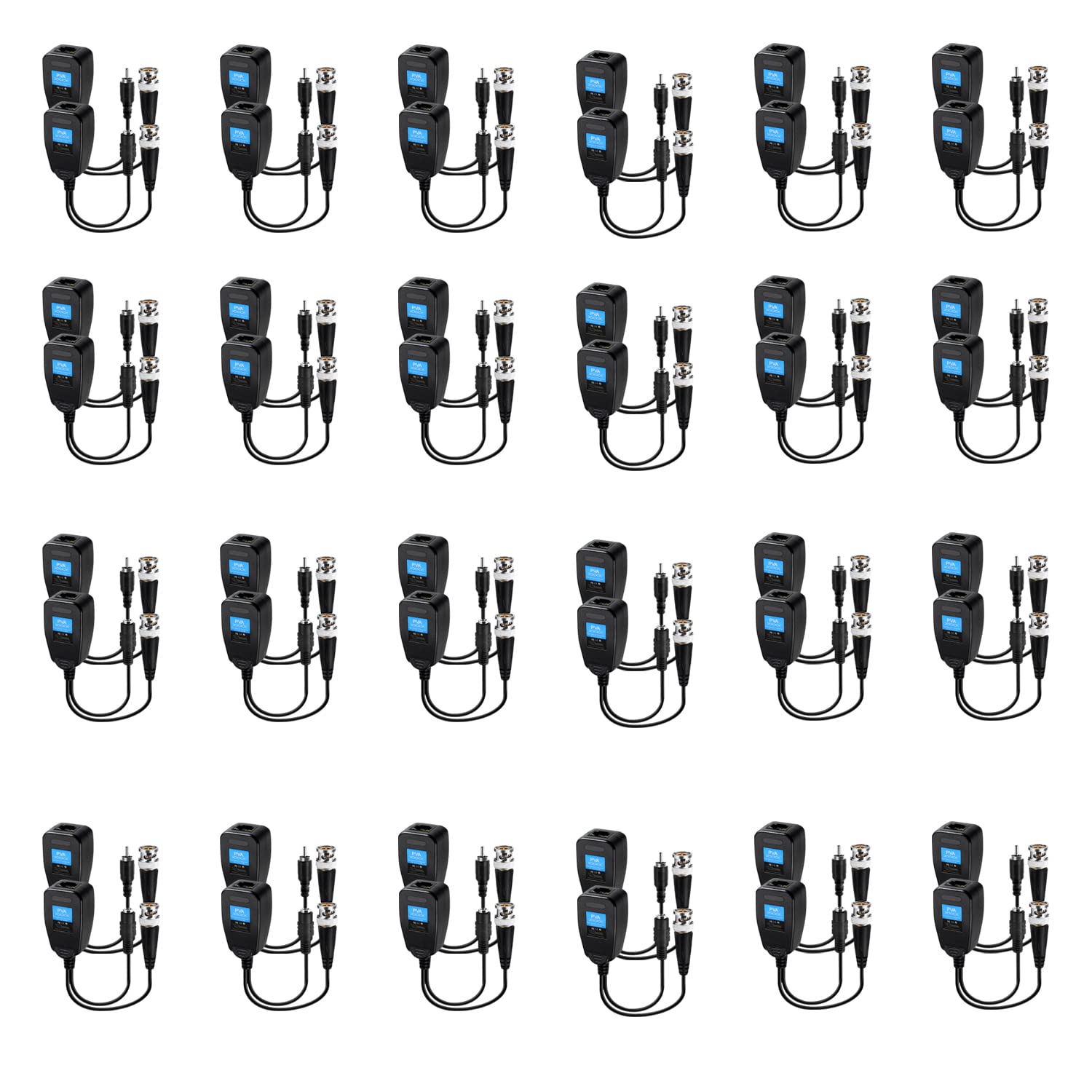

Passive Video Balun Connectors 24 Pairs - BNC to RJ45 with Power

In this review of the Passive Video Balun Connectors 24 Pairs the bottom line is straightforward: these adapters are built for installers who need a low-cost, no-power solution to carry analog and HD surveillance video plus DC power over standard UTP cable. The set is best for small to medium CCTV installs that use BNC cameras up to 5MP where long runs of Category 5e/6 cable are already in place. The single biggest reason to buy is the ability to transmit both video and DC power simultaneously using a compact RJ45+DC+BNC interface with gold plated BNCs for improved signal quality.

Key Features

• Gold plated BNC: Improves contact and reduces signal loss for clearer video over longer UTP runs.
• RJ45+DC+BNC interface: Lets installers carry video and DC power over a single Category 5e/6 cable, simplifying wiring for CCTV systems.
• Wide format support: Compatible with CVI, TVI, CVBS and AHD devices, covering common analog and HD camera standards up to 5MP.
• Long transmission distance: Supports 720P/960P up to roughly 820ft and 1080P up to about 656ft under typical conditions for extended runs.
• LED indicator: RJ45 LED shows working status (green) or fault (yellow), giving a quick visual check during installation.
• Bulk package: Twenty-four pairs included, which is practical for multi-camera jobs or stocking spares.

Who It's For

The 24-pair kit is aimed at installers, facilities managers and DIYers who want an affordable way to reuse existing UTP wiring for analog HD CCTV deployments. It is practical for surveillance projects in retail, offices or residential complexes where cameras are up to 2MP standard use or higher up to 5MP when distances are modest.

Customers who need active baluns for very long-distance high-resolution links, PoE network cameras, or those requiring integrated surge protection should look elsewhere. This kit is passive and suited to standard low-voltage DC power runs paired with unshielded twisted pair cable.

Pros & Cons

Pros

• Simple, passive design that requires no power at the balun and lets installers use Cat5e/6 cable already in place.
• Gold plated BNC connectors and zinc alloy build give a reliable physical connection and improved transmission quality.
• Includes 24 pairs, which is cost-effective for multi-camera installations or spare inventory.

Cons

• Passive design means performance depends on cable quality and environment; for maximum distance or highest resolutions an active solution may outperform it.
• No built-in surge suppression or PoE support, so external protection is required in exposed installations.

Specifications

Our Verdict

The Passive Video Balun Connectors 24 Pairs kit is a practical, cost-effective choice for CCTV installs that need to carry video and DC power over existing UTP cabling. It offers good transmission quality thanks to gold plated BNCs and broad compatibility with common analog and HD formats, making it solid value for multi-camera projects where passive transmission suffices.

Frequently Asked Questions

Can these baluns carry power and video at the same time?
Yes. They are designed to simultaneously transmit the frequency video signal and DC power over Category 5e/6 cable using the RJ45+DC+BNC interface.

What camera resolutions are supported?
The kit supports common analog and HD formats including 720P, 960P and 1080P, and is compatible up to 5MP in typical use and up to 8MP listed as maximum supported pixel.

Do I need special cable?
Use standard Cat5e or Cat6 UTP cable; performance depends on cable quality and run length, and for very long or interference-prone runs an active balun or signal booster may be preferable.
