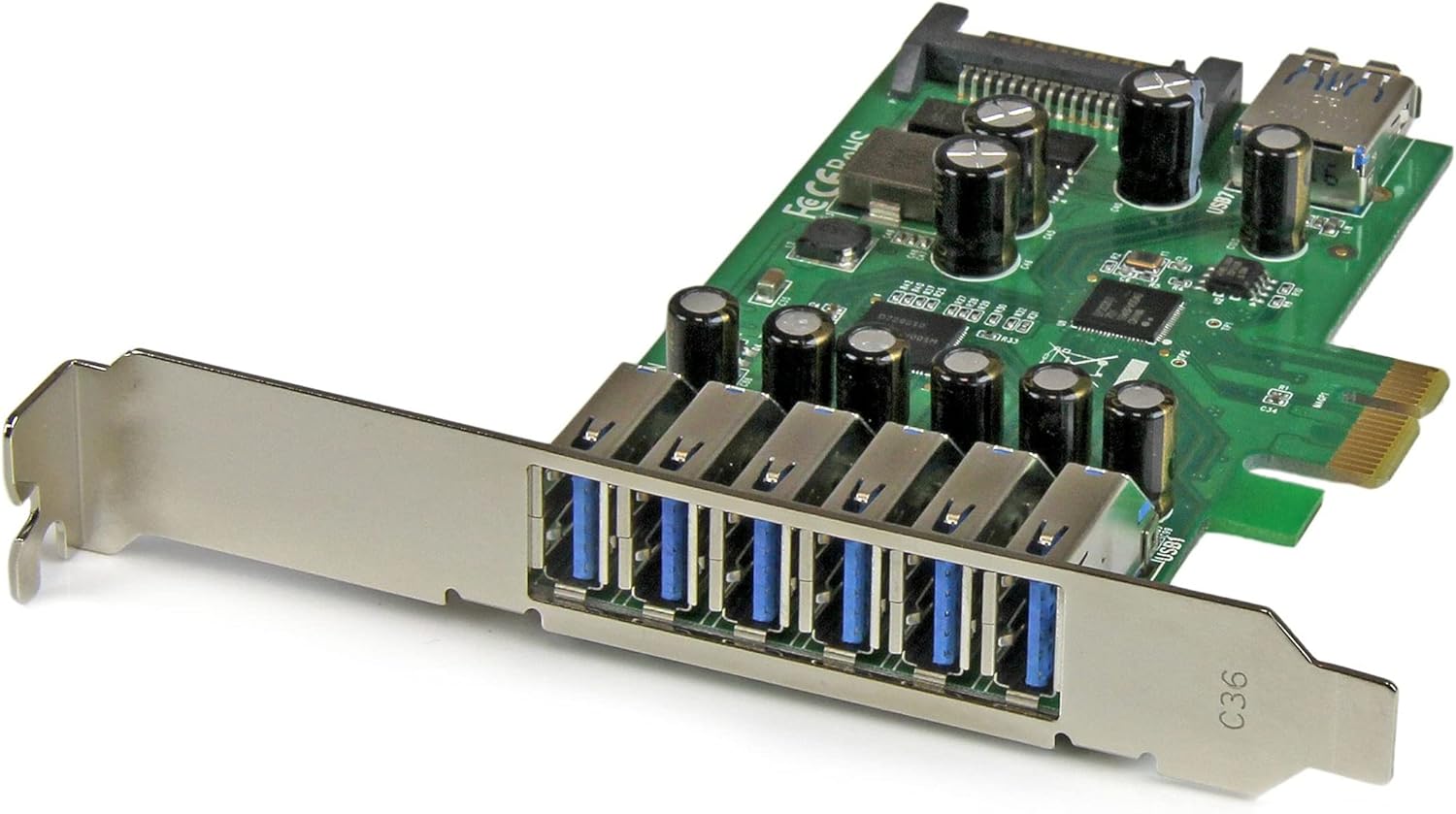

PCI Express USB 3.0 Card 7-Port (6 External + 1 Internal) - Fast

In this review of the 7-Port PCI Express USB 3.0 Card, the bottom line is simple: it is for users who need many high-speed USB ports inside a desktop without replacing the motherboard. The card adds six external and one internal USB 3.2 Gen 1 ports at up to 5Gbps and uses a SATA power connection to supply up to 900mA per port, so it handles power-hungry drives and peripherals reliably. Installation is straightforward in most systems and native OS support for modern Windows and Linux kernels keeps setup painless for the target audience.

Key Features

• 7 USB 3.2 Gen 1 Ports: Expands a PCIe slot into six external ports and one internal header so multiple drives and devices can be connected simultaneously.
• 5Gbps Transfer Speed: Supports USB 3.2 Gen 1 bandwidth for fast file transfers to external SSDs and backups compared with USB 2.0.
• Dual-Profile Design: The card ships with standard and low-profile brackets so it fits both full-size and small-form-factor desktop cases.
• SATA Power Support: An onboard SATA power connector supplies up to 900mA per port to run high-power USB devices without overloading motherboard headers.
• UASP and Backward Compatibility: UASP support improves storage performance and the controller remains backward compatible with USB 2.0 and 1.x devices for legacy gear.
• Native OS Support: Works with modern Windows and Linux kernels out of the box, reducing the need to hunt for drivers.

Who It's For

This card is best for home and small office users who need to add many USB 3.0 ports for external drives, mobile device charging, or multiple peripherals and who have an available PCIe slot. It suits builders upgrading older systems that lack enough native USB 3.0 ports or those who prefer internal expansion over using external hubs.

It is less appropriate for laptops, users without available PCIe slots, or anyone who requires external waterproof or ruggedized ports; a powered external hub or docking station may be a better fit for those use cases.

Pros & Cons

Pros

• Adds a large number of high-speed ports in a single PCIe card, simplifying expansion for desktops.
• Dual-profile bracket ensures fit in both standard and low-profile chassis, increasing compatibility.
• SATA power provides robust current to multiple devices, avoiding power issues common with passive ports.
• UASP and native OS support deliver better storage performance and easy setup for Windows and Linux users.

Cons

• The stacked external port layout can make cable clearance inside compact cases more difficult for some chassis designs.
• Requires a free PCIe slot and SATA power cable, which may not be available in very small or older systems.

Specifications

Product Type	PCIe USB 3.0 Adapter Card
Ports	6 External USB 3.0 + 1 Internal USB 3.0 header
Interface Speed	USB 3.2 Gen 1 (5Gbps)
Power Connector	SATA power, up to 900mA per port
Form Factor	Standard and Low-Profile (dual-profile brackets)
Compatibility	Native OS support in Windows 8/8.1 and Linux kernel 2.6.31+

Our Verdict

This PCIe USB 3.0 card is a practical, cost-effective way to add many high-speed ports to a desktop. It is good value for anyone who needs multiple external connections and reliable power delivery for drives and peripherals, and the dual-profile design and native OS support make it a low-friction upgrade.

Frequently Asked Questions

Does this card need extra power?
The card uses a SATA power connector to provide up to 900mA per port and typically requires that connection to reliably power several high-draw devices.

Will it work on Windows 10 and modern Linux?
Yes, it has native OS support for Windows 8/8.1 and later and works with Linux kernels 2.6.31 and newer, so Windows 10 and modern distributions are supported.

Can the card fit in small form-factor cases?
Yes, it ships with both standard and low-profile brackets to fit small-form-factor and full-size desktop chassis, though cable clearance should be checked due to the stacked port layout.
