PCIe to USB C 3.2 Gen 2 Expansion Card 10Gbps - Fast Internal USB

In this review of the PCIe to USB C 3.2 Gen 2 Expansion Card, the bottom line is straightforward: it is a practical internal upgrade for desktop users who need fast, dedicated USB data ports. The card adds a rear USB-A and USB-C port, an internal 19/20 pin header and a Type-E A-Key front panel adapter, and it delivers true 10Gbps data throughput per port in supported systems. For those who want reliable, motherboard-level USB expansion without relying on external hubs, this card is worth considering.

Key Features

• 10Gbps per port: Each port can theoretically reach 10Gbps, providing high-speed transfers for large files and external NVMe or SSD enclosures.

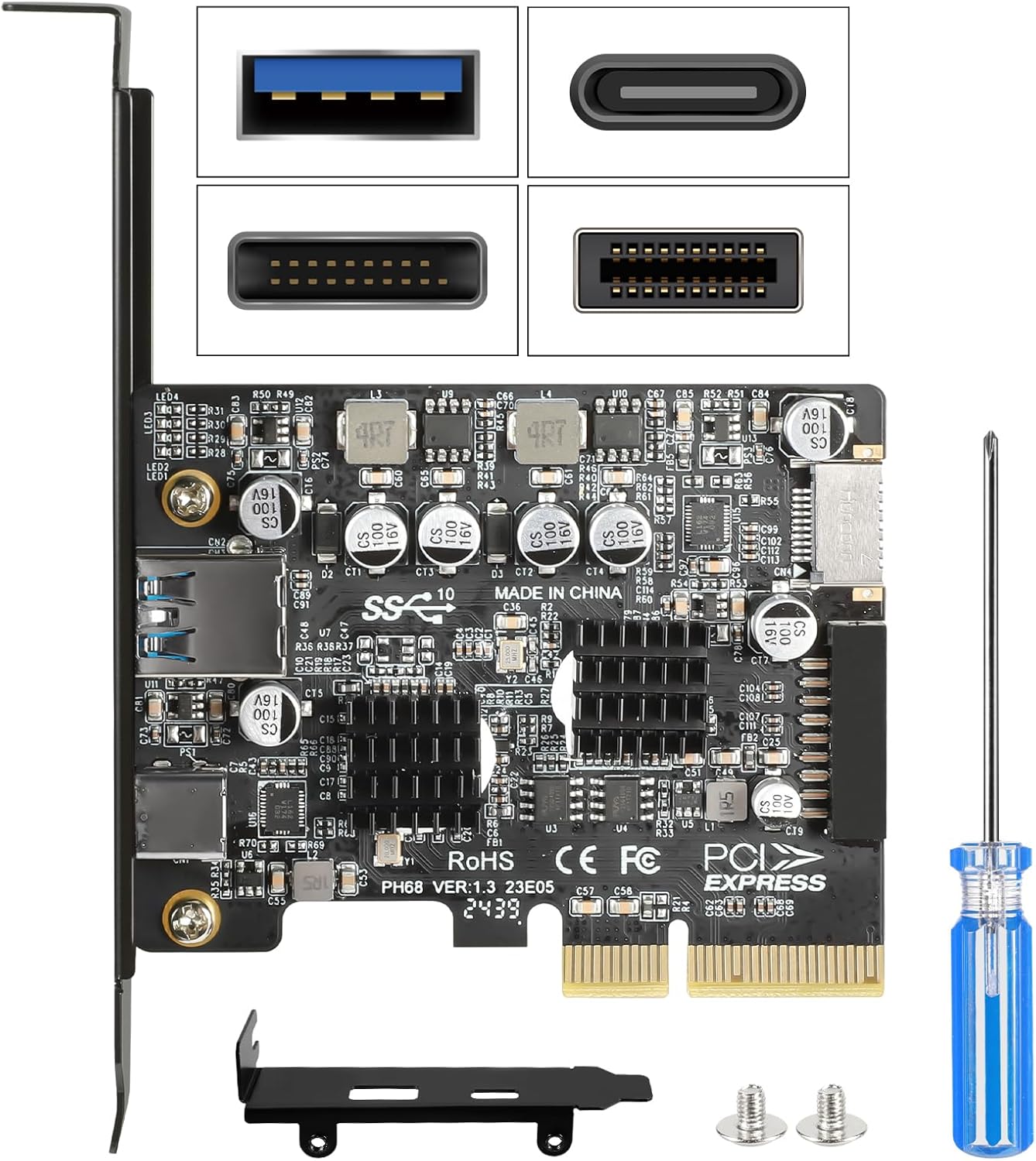

• Multiple connection options: The card includes 1x USB-A, 1x USB-C, a 19/20 pin internal connector and a Type-E A-Key front panel adapter to support a range of peripherals and case front panels.
• Driver compatibility: Works without extra drivers on Windows 10/11, Mac OS 10.8.2+, and many Linux installs, while older Windows platforms can install the provided controller driver if needed.
• Stable internal installation: Being a PCI Express card, it draws directly from the motherboard for a stable connection that avoids the dropouts sometimes seen with external hubs.
• Power handling: The card supplies up to 5V/12A without requiring an external power adapter, enough for many HDD/SSD enclosures and other higher-draw USB devices.

Who It's For

This expansion card is aimed at desktop users who need more high-speed USB ports for storage backups, external drives, VR sensors, or high-bandwidth peripherals, and who prefer an internal solution over external hubs. It is a good fit when the motherboard lacks USB-C or additional USB-A ports or when you want the lower latency and stable connection of a PCIe add-in card.

Users who need video output over USB-C, Thunderbolt protocol support, or monitor conversion (DP/HDMI/VGA) should look elsewhere, since the card only transmits data signals and does not support video or Thunderbolt. Laptop users or those requiring hot-swap external expansion via Thunderbolt will not benefit from this internal-only card.

Pros & Cons

Pros

• True 10Gbps data transfer per port for fast file movement and storage access.
• Multiple connectors including internal 19/20 pin and Type-E A-Key adapter increase compatibility with cases and front panels.
• Stable motherboard connection avoids the reliability issues of some external hubs.

Cons

• Does not support video output or Thunderbolt, limiting use to data transfer and charging only.
• Some users reported mixed reliability experiences, so compatibility and performance may vary by system.

Specifications

Product Type	PCI-E USB Expansion Card
Ports	1x USB-A rear, 1x USB-C rear, 1x 19/20 pin internal, 1x Type-E A-Key adapter
Maximum Data Rate	10Gbps per port (theoretical)
Power	5V with up to 12A available, no external adapter required
Controller / Driver	ASM3142_1.16.61.1 (driver for legacy systems)
Compatibility	Windows 7/8/10/11 (32/64-bit), Mac OS 10.8.2+, Linux (Windows 10/11 and modern Mac/Linux no driver needed)

Our Verdict

For desktop builders who need additional high-speed USB ports, this PCIe to USB C 3.2 Gen 2 card is a sensible, cost-effective upgrade that delivers solid transfer speeds and flexible port options. It is especially good value when you require stable, motherboard-level connections for storage devices and peripherals, but avoid it if you need video over USB-C or Thunderbolt functionality.

Frequently Asked Questions

Will this card output video over USB-C?
No. The card only supports data signals and PD charging; it does not support video output or Thunderbolt protocols.

Do I need an external power cable?
No. The card provides up to 5V/12A without an external power adapter for most high-power USB devices.

Which systems need drivers?
Windows 10/11 and modern Mac OS and Linux typically do not need drivers; older Windows versions and some server builds may require the provided ASM3142 driver.
