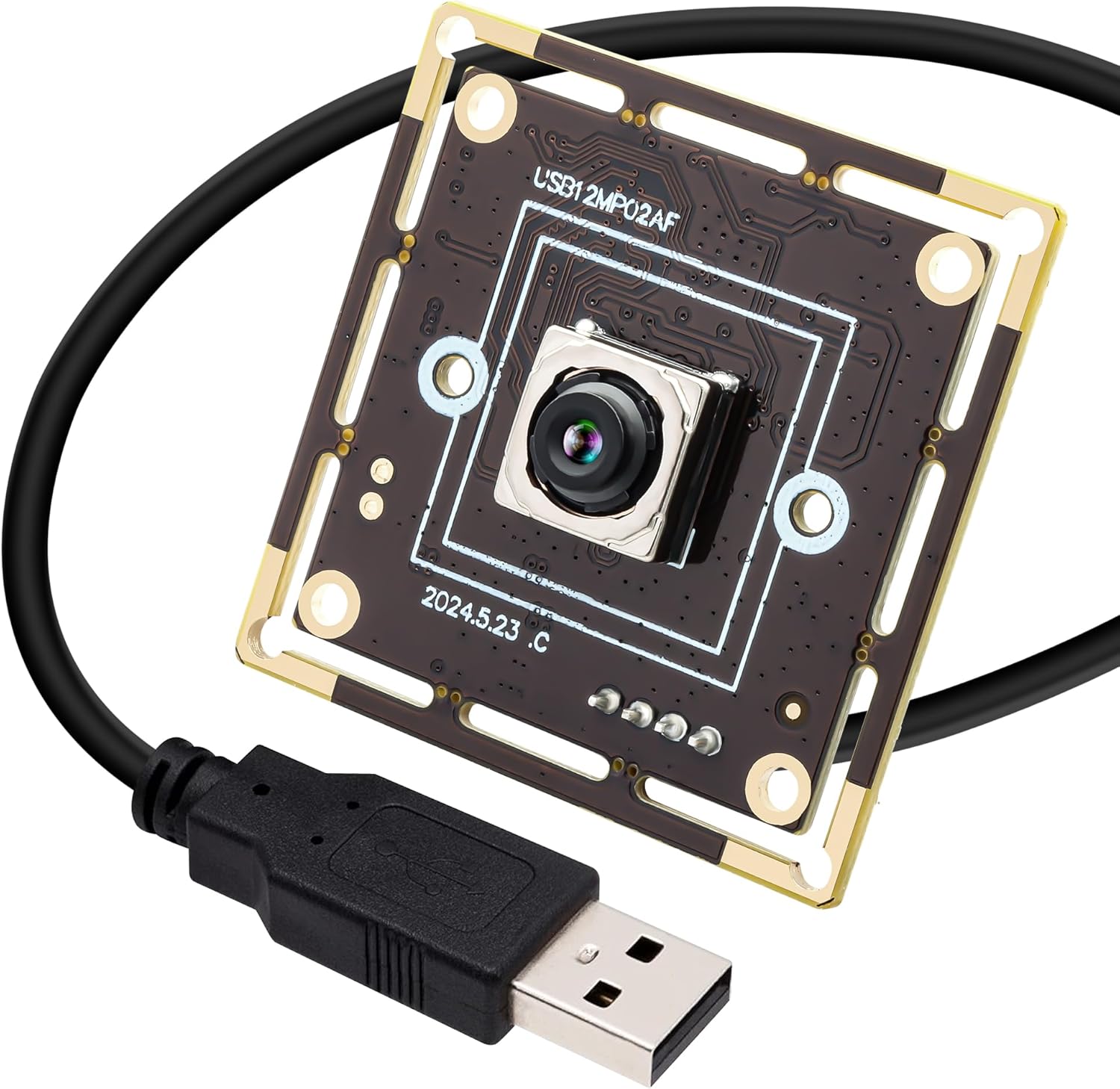

PDAF USB Camera Module 12MP 60fps 4K Autofocus - Fast AF Webcam

Our review of the PDAF USB Camera Module finds it most useful for hobbyists and developers who need a compact, high-resolution USB camera for embedded projects, streaming, or monitoring. The single biggest reason to consider this module is its combination of a 12MP IMX362 sensor and PDAF fast autofocus, which delivers clear stills at up to 4000 x 3000 and smooth video when set to high frame rates. It is plug-and-play over USB2.0 and works across common platforms, making setup straightforward for makers and small studios.

Key Features

• PDAF Fast Autofocus: The phase detection autofocus finds and locks on subjects quickly so images and video stay sharp without manual tweaking.
• 12 Megapixel Sensor: A 1/2.5" IMX362 sensor produces still images up to 4000 x 3000 pixels for detailed captures useful in inspection or content creation.
• High Frame Rate: The module can deliver up to 60fps at 1080P which helps produce smooth motion for live streaming and monitoring applications.
• No Distortion 65 Degree Lens: The 3.3mm AF lens with about 65 degree HFOV minimizes distortion for more natural-looking scenes and useful multi-angle placement.
• USB2.0 UVC Plug-and-Play: Works without extra drivers on Windows, Mac, Linux and Raspberry Pi, simplifying installation for prototype and production use.
• Low-Light Capability: With a minimum illumination around 0.5 Lux and MJPEG/YUY2 support, the camera remains usable in dim environments and flexible for bandwidth choices.

Who It's For

This camera is aimed at makers, embedded system developers, small studio streamers and anyone building a monitoring or machine vision prototype who needs a compact, high-resolution USB camera with reliable autofocus. The combination of PDAF and a high-resolution sensor makes it especially suited to inspections, online classes, and close-up streaming where detail matters.

It is less appropriate for users who need ultra-high frame rates beyond 60fps at high resolutions, specialized industrial cameras with custom interfaces, or those requiring an IP67 enclosure for outdoor use; in those cases a purpose-built industrial or weatherproof camera would be a better option.

Pros & Cons

Pros

• Excellent detail from the 12MP IMX362 sensor for still photography and inspection tasks.
• Fast PDAF autofocus that typically locks in about 200ms at 60fps for quick subject acquisition.
• Plug-and-play USB2.0 UVC compatibility across Windows, Mac, Linux and Raspberry Pi simplifies setup.
• 60fps capability at 1080P provides smooth video for streaming and monitoring.

Cons

• USB2.0 bandwidth limits may constrain sustained 4K throughput compared with USB3.0 modules.
• No built-in weatherproofing or housing for harsh industrial environments.

Specifications

Sensor	1/2.5" IMX362 CMOS
Maximum Still Resolution	4000 x 3000 (12MP)
Lens	3.3mm AF lens, HFOV about 65 Degree, DFOV about 76 Degree
Autofocus	PDAF fast autofocus, ~200ms at 60fps / ~300ms at 30fps
Video Frame Rates	Up to 60fps at 1080P; programmable frame rates
Interface	USB2.0 UVC (plug-and-play)
Minimum Illumination	Approximately 0.5 Lux

Our Verdict

The PDAF USB Camera Module is a strong value for developers and creators who need high-resolution stills and fluid 1080P video with reliable autofocus in a compact USB package. Its plug-and-play USB2.0 compatibility and the IMX362 sensor make it a practical choice for prototyping, streaming, and monitoring where cost and ease of use matter, though users needing sustained 4K over USB3.0 or outdoor-rated hardware should look elsewhere.

Frequently Asked Questions

Will this camera work with Raspberry Pi?
Yes, it uses USB2.0 UVC so it connects to Raspberry Pi and should work without additional drivers for standard UVC-compatible applications.

Can it record 4K video?
The sensor supports 4K stills but sustained 4K video may be limited by USB2.0 bandwidth; 1080P at up to 60fps is the recommended high-frame-rate mode.

Does the autofocus work in low light?
Autofocus uses PDAF and is designed to be quick, but like most cameras it performs best with adequate lighting; minimum illumination is around 0.5 Lux.
