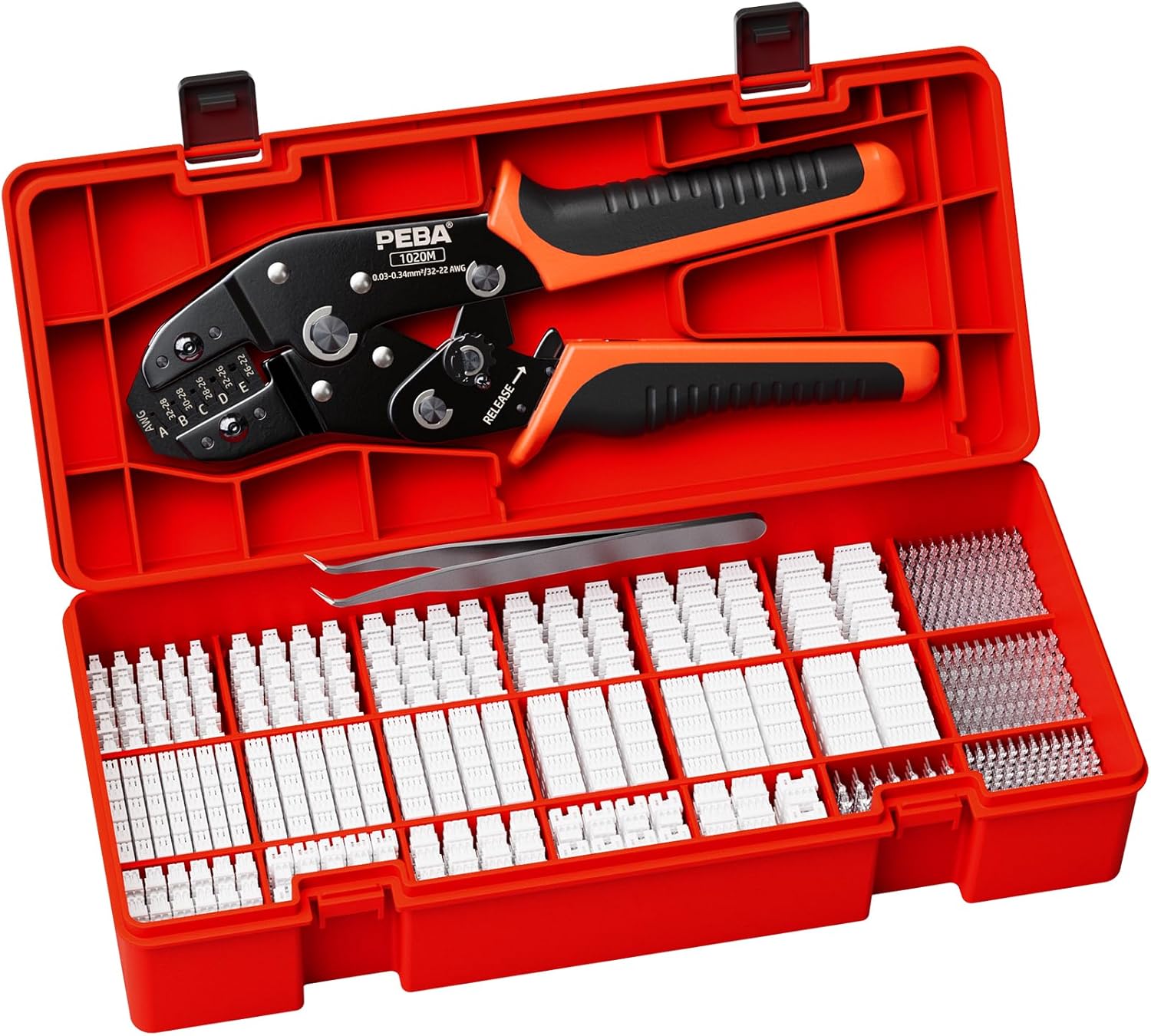

PEBA Crimping Tool and JST Connector Kit - Complete Micro Pin Set

Our review of the PEBA Crimping Tool and JST Connector Kit finds it to be a practical all-in-one solution for hobbyists and professionals who routinely assemble or repair small electronic connectors. The kit centers on the PEBA 1020M ratchet crimping pliers and a well-organized selection of 22 connector types for 1.0mm, 1.25mm and 1.5mm pitches, making it ideal for board-to-wire and sensor harness work where consistent, repeatable crimps matter most. For anyone needing reliable micro pin crimps and a tidy tool set, this kit delivers professional-grade results without needing separate parts from multiple sources.

Key Features

• All-in-one kit: The case groups the PEBA 1020M ratchet pliers, 22 JST-SH/GH/ZH connector types and precision tweezers for fast identification and less project downtime.
• Micro pin crimping range: The tool crimps AWG 32-22 (0.03-0.34 mm2) wires and supports 1.0-2.0 mm pitch micro connectors commonly used in compact electronics.
• Ratchet mechanism: The efficient ratchet and quick-release lever ensure the crimper completes a consistent open-barrel crimp before releasing, improving repeatability.
• Adjustable crimp force: Adjustable pressure lets the user tune crimps for different pin sizes and wire thicknesses to avoid over- or under-crimping.
• Durable contacts: Nickel-plated male and female pins resist corrosion and reduce electrical leakage, helping long-term reliability in robotics and automotive projects.
• Organized storage: The included compartmented box and connector matrix reduce mixing and speed up assembly and maintenance tasks.

Who It's For

This kit is well suited to electronics hobbyists, makers doing 3D printer wiring or small robotics work, and technicians performing board-level connector repairs. The included pliers and varied connectors cover most JST-SH, JST-GH and JST-ZH needs without sourcing individual crimp pins.

Those who require ultra-fine production tooling for high-volume industrial harnessing or who prefer interchangeable crimp dies for many proprietary connector families should look at dedicated factory crimp presses. Some users may find the hand tool physically demanding for very large batches.

Pros & Cons

Pros

• High crimp quality from the ratchet design yields uniform open-barrel crimps.
• Wide connector selection covers 1.0mm, 1.25mm and 1.5mm pitch needs in a single kit.
• Nickel-plated pins and insulated housings improve corrosion resistance and electrical safety.
• Organized case and tweezers speed up small assembly tasks.

Cons

• Manual crimping can be tiring for large-volume harness production.
• Some users report a learning curve and mixed feelings about ease of use for very fine pins.

Specifications

Our Verdict

The PEBA Crimping Tool and JST Connector Kit is a strong value for anyone assembling or repairing small electronic connectors, offering reliable open-barrel crimps, a useful variety of JST-SH/GH/ZH connectors, and corrosion-resistant pins. It is particularly good for DIYers and small-shop technicians who need consistent crimps and an organized set; high-volume manufacturers should consider powered options for efficiency.

Frequently Asked Questions

Can the tool handle JST-SH and similar tiny connectors?
Yes. The pliers are designed for 1.0-2.0 mm pitch micro connectors, including JST-SH, GH and ZH series.

What wire sizes are supported?
The crimper supports AWG 32-22, which is 0.03-0.34 mm2, suitable for common signal and small power wiring.

Are the pins corrosion resistant?
Yes. The kit uses nickel-plated male and female pins to reduce corrosion and electrical leakage over time.
