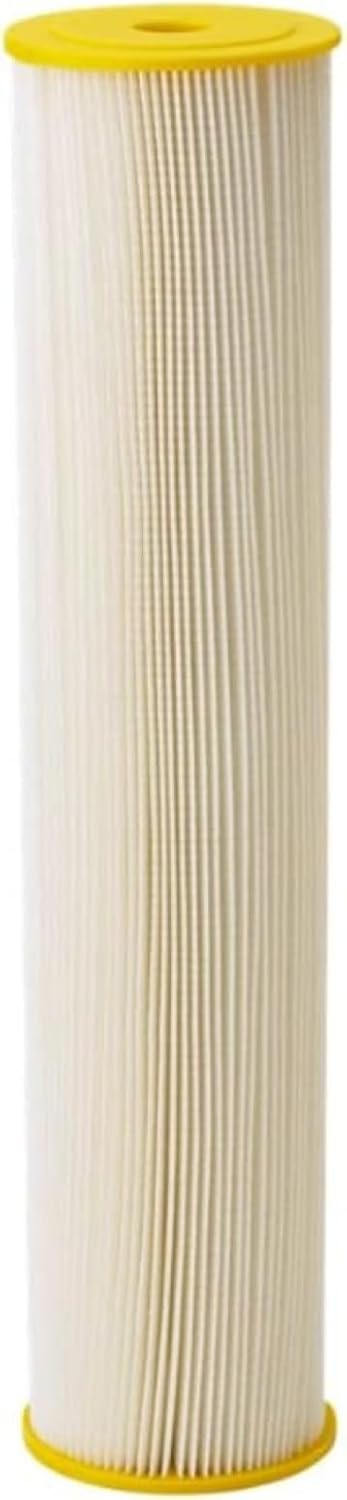

Pentek ECP50-20BB Big Blue Sediment Filter - Heavy Duty 50 Micron

In this review the Pentek ECP50-20BB is evaluated as a practical replacement cartridge for whole-house sediment filtration systems. It is aimed at homeowners or light commercial users who need a durable, high-capacity pleated sediment filter that removes dirt, sand and silt without significantly reducing flow. The single biggest reason to buy is its combination of stronger construction and larger dirt-holding capacity, which translates to longer service life and fewer replacements compared with standard cellulose cartridges.

Key Features

• Compatibility: Fits all 20' Big Blue housings and replaces any 20' x 4.5' heavy duty sediment cartridge for easy installation.
• Material blend: Resin-impregnated cellulose and polyester provide higher wet strength so the cartridge holds up better under flow and pressure.
• High dirt capacity: Pleated media gives roughly 33% more dirt-holding capacity than many competitors, extending time between changes.
• Low pressure drop: Pleated construction around a polypropylene core maintains high flow rates with minimal pressure loss.
• Color-coded endcap: Yellow molded end-cap with gasket allows quick identification and hassle-free replacement.
• Maintenance interval: Replace every 6 months or sooner if you notice reduced pressure or water quality changes.

Who It's For

The ECP50-20BB is best for homeowners with sediment-prone supply water, small commercial sites, or anyone using a 20' Big Blue housing who wants a tougher cartridge than standard cellulose options. It suits situations where sand, silt and particulates are common and longer service life is valued over the absolute lowest purchase price.

Those who need very fine filtration below 50 micron or specialized media for chemical removal should look elsewhere; this cartridge is specifically a heavy duty sediment filter and not intended as a chemical, carbon, or microfiltration element.

Pros & Cons

Pros

• Durable resin-impregnated cellulose and polyester blend increases wet strength and longevity.
• Large pleated surface area provides higher dirt holding capacity, reducing change frequency.
• Designed for high flow with low pressure drop thanks to pleated media and polypropylene core.
• Color-coded molded endcap simplifies identification and replacement.

Cons

• At 50 micron it will not remove very fine particles or dissolved contaminants, so additional filtration stages may be needed.

Specifications

Brand	Pentek
Model	ECP50-20BB
Size	20' x 4.5'
Micron Rating	50 micron
Endcap Color	Yellow molded end-cap with gasket
Media	Pleated cellulose and polyester, resin-impregnated
Recommended Change Interval	Every 6 months or when pressure drops

Our Verdict

The Pentek ECP50-20BB is a solid choice for users who need a rugged, high-capacity sediment cartridge for a 20' Big Blue housing. Its reinforced pleated media and larger dirt-holding capacity make it cost-effective in service life, particularly where sand and silt are persistent. It is good value for anyone prioritizing durability and fewer filter changes, but those needing finer filtration should pair it with subsequent stages.

Frequently Asked Questions

Will this fit my housing?
Yes, it fits standard 20' Big Blue housings and replaces any 20' x 4.5' heavy duty sediment cartridge.

How often should it be replaced?
Manufacturers recommend replacing every 6 months or sooner if you see a drop in water pressure or quality.

Does it remove iron or dissolved contaminants?
It removes dirt, sand, silt and particulates; it is not designed to remove dissolved contaminants or very fine particles below 50 micron.
