PEX Heat Transfer Plates 4 ft for 3/4ft PEX Pipe - Even Radiant Heat

In this review of the PEX Heat Transfer Plates 4 ft kit, the bottom line is simple: these plates are for installers and DIYers who need predictable, even heat distribution for wooden-framed radiant floors. The kit of 200 U-shaped aluminum plates is notable because it fits 3/4' PEX pipe snugly and promises reduced heat loss of around 30-40%, which is the single biggest reason to choose them when replacing or retrofitting underfloor heat tubing in living spaces that require consistent warmth.

Key Features

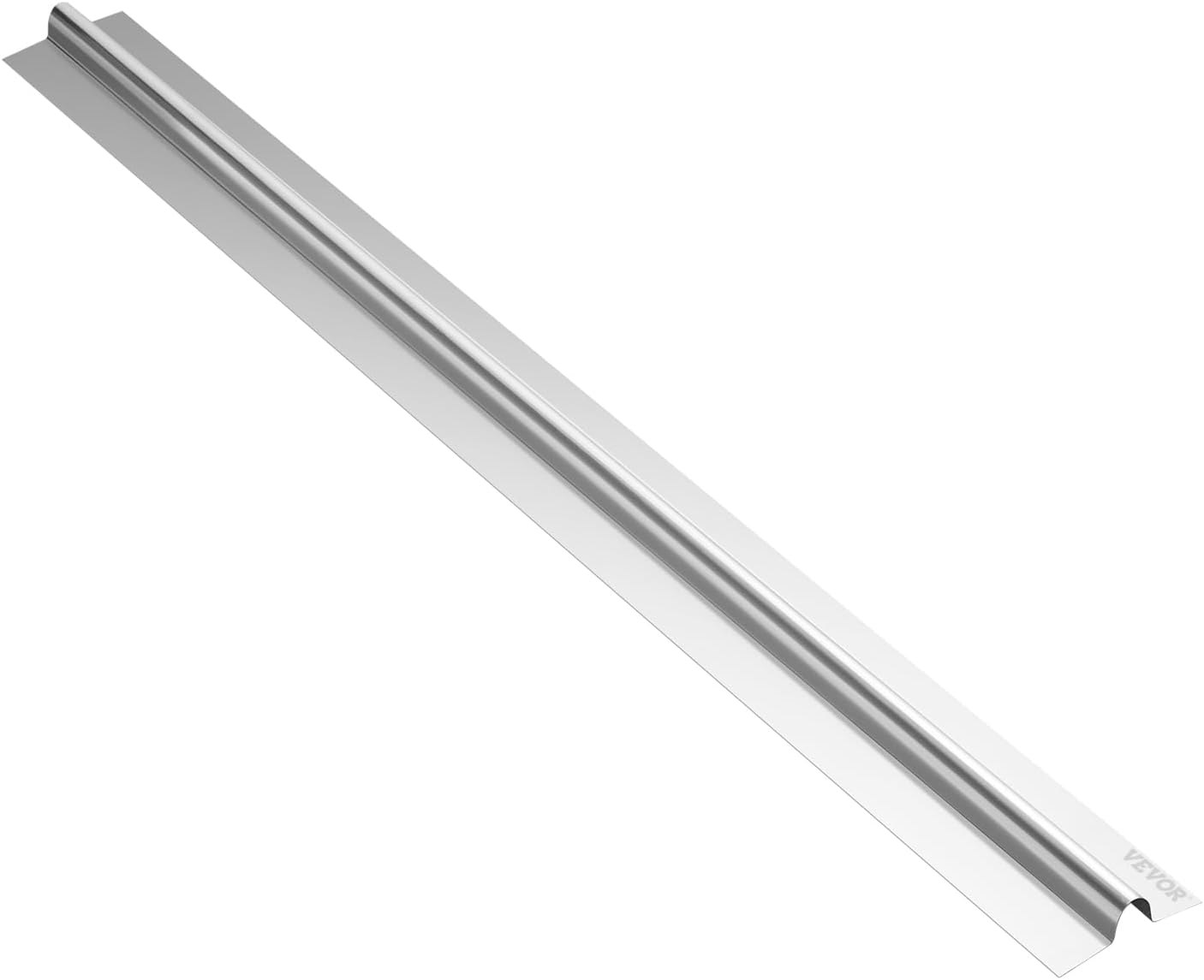

• U-shaped fit: The U-shaped channel is designed to cradle 3/4' PEX pipe and promote consistent contact for more even heat transfer across the floor surface.
• Size and compatibility: Each plate measures 4 ft by 0.3 ft and is sized for 3/4' (19.05 mm) PEX pipes, including PEX-A, PEX-B and PEX-AL-PEX variants with the stated ID and OD.
• Reduced heat loss: The plates claim to cut heat loss by roughly 30-40%, helping maintain a stable room temperature and improving system efficiency.
• Durable material: Made from 0.016' (0.4 mm) pure aluminum, the plates are corrosion-resistant and waterproof for long service life in underfloor installations.
• Easy installation: Two installation methods are supported depending on floor structure, and plates can be trimmed and spaced with a 1-2 in gap for stability.
• Large kit quantity: The 200-piece set covers extensive runs and is convenient for whole-room projects in wooden floors and framed homes.

Who It's For

This product is aimed at homeowners, contractors and renovators working on radiant heating systems in wooden-framed homes, particularly where PEX tubing is used under or between joists or over sleepers. It is well suited for projects that require repeatable, even heat distribution and expect long-lived components.

Those who should look elsewhere include installers working exclusively with nonstandard pipe sizes or systems that cannot accommodate a 1-2 in plate gap or trimming, and builders who require thicker or screw-down transfer panels for specific structural attachments.

Pros & Cons

Pros

• Snug U-shaped design improves contact with 3/4' PEX and helps spread heat evenly across the floor.
• Lightweight pure aluminum construction resists corrosion and is waterproof for durable performance.
• Flexible installation options and easy trimming make fitting around obstacles and odd layouts straightforward.

Cons

• Thin 0.016' (0.4 mm) material may feel flimsy compared with heavier screw-down plates, requiring careful handling during install.

Specifications

Brand	VEVOR
Length	4 ft (1200 mm)
Width	0.3 ft (100 mm)
Material thickness	0.016' (0.4 mm) pure aluminum
Compatible pipe	3/4' PEX (ID 0.681', OD 0.685') including PEX-A/B and PEX-AL-PEX
Quantity	200 pieces
Applications	Between joists, sandwiched layers, or over subfloor/sleepers for wooden floors

Our Verdict

These 4 ft PEX heat transfer plates are a practical choice for anyone installing or upgrading radiant heating in wooden-framed rooms because they deliver even heat distribution, durable aluminum construction, and flexible installation options at a sensible value. Installers who prioritize sturdier screw-down panels may prefer alternatives, but for most wooden floor projects these plates offer dependable performance and long-term corrosion resistance.

Frequently Asked Questions

Will these plates fit my PEX tubing?
They are designed for 3/4' PEX with an ID of 0.681' and OD of 0.685' and are compatible with PEX-A, PEX-B and PEX-AL-PEX types.

Can the plates be trimmed on site?
Yes, the aluminum plates can be trimmed to length to fit around joists and obstacles; wear gloves and remove the protective film before installing.

How should plates be spaced?
Leave a 1-2 in gap between plates for long-term stability and choose the installation method suited to your floor structure.
