PHAT SATELLITE 200ft White Solid Copper RG59 Coax Cable - Reliable

Our review examines the PHAT SATELLITE 200ft White Solid Copper RG59 coax cable as a practical, professional option for wired CCTV installs. For installers or small businesses that need a ready-made siamese cable with power and video connections, the main reason to buy is the combination of a solid copper 20AWG core video conductor and integrated 2.1mm power jack, which eliminates the need to splice separate power and coax runs on short- to medium-length jobs. The assembled, ETL CM rated build also makes it suitable for indoor conduit and structured low-voltage runs where a reliable, pre-terminated cable saves time.

Key Features

• Solid copper 20AWG core: Provides consistent conductivity for CCTV signals and reduces loss compared with stranded cores over the 200ft length.
• 95% braided shield: High braid coverage improves rejection of interference for TVI, CVI, AHD and HD-SDI camera systems.
• Siamese design with power jack: Built-in open-to-open 2.1mm power jack connectors mean installers do not need to terminate separate power conductors.

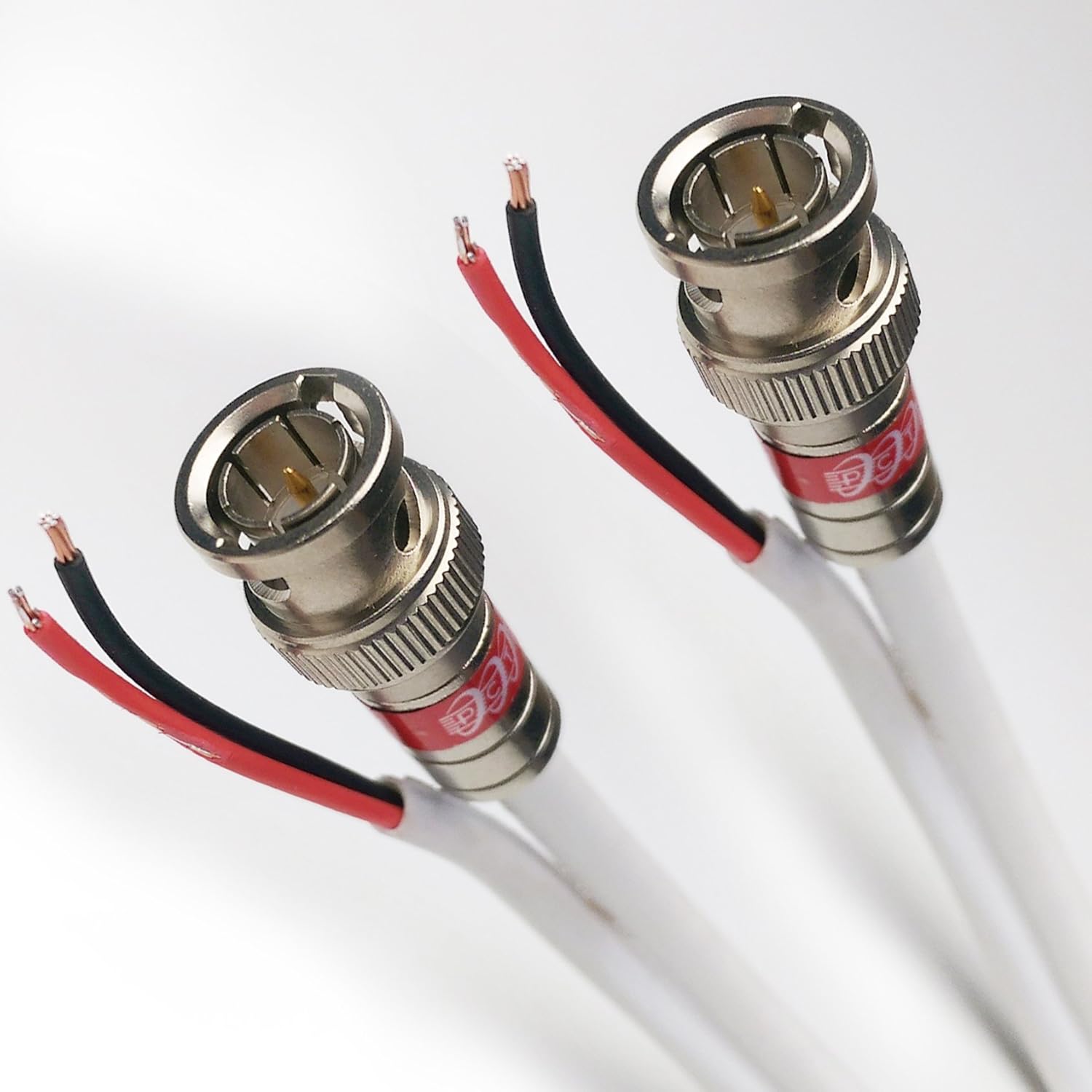

• PCT brass BNC compression: Brass, anti-corrosion BNC connectors maintain secure video connections and resist wear in repeated installations.
• ETL CM professional grade: The cable meets common communications plenum/CM expectations for structured, in-wall or conduit routing where CM rating is required.
• Assembled in USA: Factory assembled terminations reduce field labor and the risk of poor crimps or solder joints.

Who It's For

This cable targets security installers, small contractors and DIY-savvy homeowners who need a clean, pre-terminated siamese solution for analog and HD-over-coax camera systems. It is ideal where a single 200ft run will cover the distance between cameras and a recorder without intermediate distribution amplifiers.

It is less appealing to projects requiring outdoor direct burial, extremely long runs beyond 200ft without signal conditioning, or specialized coax variants; in those cases look for purpose-built outdoor, gel-filled, or higher-spec transmission cables designed for burial or much longer distances.

Pros & Cons

Pros

• Pre-assembled siamese cable saves installation time and keeps power and video routing tidy.
• Solid 20AWG copper core and 95% braid provide reliable signal transfer for TVI, CVI, AHD and HD-SDI.
• ETL CM rating and brass BNCs give a professional finish suitable for indoor low-voltage runs.

Cons

• 200ft length is fixed; installers needing longer runs will need repeaters or a different cable option.
• Not specified as direct burial or outdoor-rated in the product text, so additional protection is needed for exposed outdoor runs.

Specifications

Length	200ft
Cable type	Siamese (Dual) RG-59 coaxial with power
Conductor	20AWG solid copper core
Shielding	95% braided shield
Connectors	BNC PCT brass compression, open-to-open 2.1mm power jack
Compatible systems	TVI, CVI, AHD, HD-SDI
Certification	ETL CM

Our Verdict

The PHAT SATELLITE 200ft RG59 siamese cable is a pragmatic choice for indoor CCTV installs that benefit from a pre-terminated, solid copper coax and integrated power jack. It delivers professional-grade terminations and shielding at a sensible value for installers and small businesses, though projects requiring outdoor burial or much longer single-run distances should select a cable rated for those conditions.

Frequently Asked Questions

Is this cable compatible with HD-SDI systems?
Yes. The cable and 95% braid shielding are specified for TVI, CVI, AHD and HD-SDI camera systems.

Does the cable include power connectors?
Yes. It is siamese with open-to-open 2.1mm power jack connectors so power conductors are integrated and ready for termination.

Can this be used outdoors or buried?
The product description does not list direct burial or outdoor gel filling, so use conduit or an outdoor-rated alternative for exposed or buried installations.
