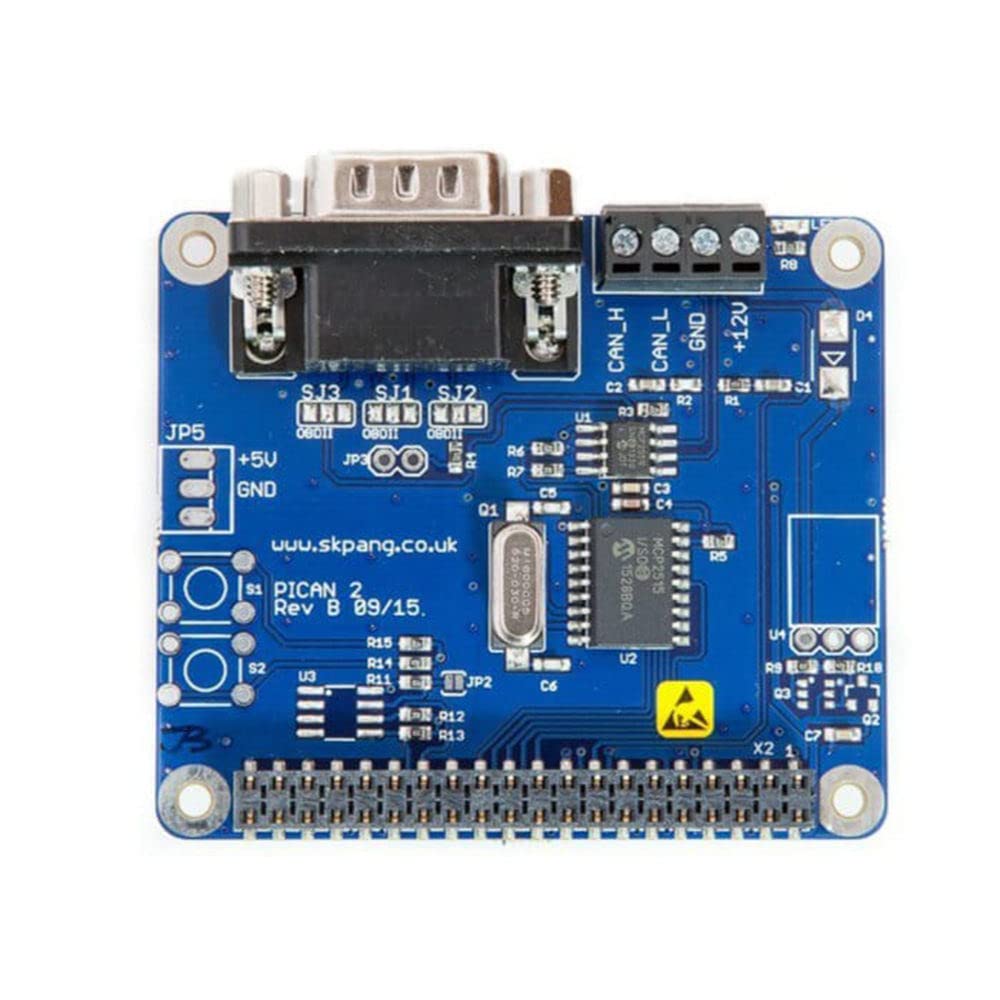

PiCAN2 CAN Bus Module for Raspberry Pi - MCP2515 CAN Interface

In this review the PiCAN2 CAN Bus board is evaluated as a practical add-on for Raspberry Pi users who need reliable CAN-Bus connectivity. The single biggest reason to buy is its straightforward integration: it uses the Microchip MCP2515 CAN controller and MCP2551 transceiver to deliver a ready-made hardware interface with both DB9 and screw terminal connections, plus an onboard 5V 1A SMPS so the Pi can be powered from the CAN connector. For makers or engineers wanting a compact CAN solution that works with SocketCAN, this board removes much of the wiring and driver hassle.

Key Features

• MCP2515 CAN controller: Provides a proven controller compatible with SocketCAN for standard C or Python development.
• MCP2551 transceiver: Handles physical CAN signaling so the Raspberry Pi can communicate on a vehicle or industrial bus.
• Dual connection options: DB9 Sub-D or 4-way screw terminal lets you choose a durable cable or a simple screw-in wiring point for field installs.
• Onboard 5V 1A SMPS: Allows the board to power the Raspberry Pi through the DB9 or screw terminals, simplifying power wiring in a CAN setup.
• 120 ohm terminator ready: Built-in provision for bus termination helps ensure reliable communications on a two-node or multi-node CAN network.
• LED indicators and LCD footprint: Visible status LEDs and an LCD footprint make debugging and monitoring the bus easier during development.

Who It's For

The PiCAN2 is best for Raspberry Pi hobbyists, students, and embedded developers who need a compact CAN interface with minimal setup. It is particularly useful for those building OBDII adapters, vehicle telemetry projects, or industrial control systems that benefit from the Pi's software ecosystem and SocketCAN support.

Those looking for automotive-grade ruggedization, integrated galvanic isolation, or higher current power delivery should look elsewhere, since the board focuses on convenience and prototyping rather than heavy-duty industrial certification or isolation features.

Pros & Cons

Pros

• Easy SocketCAN driver support makes it simple to bring the interface online for development in C or Python.
• Multiple physical connection options (DB9 or screw terminals) suit both lab and field wiring scenarios.
• Onboard 5V 1A SMPS provides a tidy power option, reducing the need for extra power wiring when used correctly.
• Compact footprint with LED indicators and mounting holes makes installation neat and serviceable.

Cons

• The board does not include galvanic isolation, so additional protection is needed for harsher automotive or industrial environments.
• Power is limited to the 5V 1A SMPS, which may be insufficient for Pi models with heavy peripherals attached.

Specifications

Controller	Microchip MCP2515
Transceiver	Microchip MCP2551
CAN Standard	CAN v2.0B up to 1 Mb/s
Interface	High-speed SPI (up to 10 MHz)
Connections	9-way Sub-D (DB9) and 4-way screw terminal
Power	Onboard 5V 1A SMPS, power via DB9 or screw terminals
Extras	LED indicators, LCD footprint, two mini buttons, mounting holes

Our Verdict

The PiCAN2 is a practical, wellspecified CAN add-on for Raspberry Pi projects that require reliable CAN-Bus access and quick prototyping. It is good value for makers and developers who want SocketCAN support, DB9 or terminal wiring flexibility, and simple power integration, though projects needing isolation or higher power should plan additional hardware.

Frequently Asked Questions

Does it work with SocketCAN?
Yes. The board uses the MCP2515 controller which is commonly supported by SocketCAN drivers for Linux on Raspberry Pi.

How is the Pi powered?
The board provides a 5V 1A SMPS and can power the Raspberry Pi through the DB9 connector or the screw terminals when wired appropriately.

Can it handle automotive environments?
It is suitable for development and light vehicle projects but lacks built-in galvanic isolation, so add isolation for harsher automotive or industrial conditions.
