Portable TinySA Spectrum Analyzer with Touch Screen and ESD Function

The Portable TinySA Spectrum Analyzer is a cutting-edge device designed for both professionals and hobbyists alike. With a frequency range of 100kHz to 960MHz, this handheld analyzer is perfect for a variety of applications, including signal analysis and generation. The upgraded version 0.3.1 features a high-quality MF/HF/VHF input that operates between 0.1MHz and 350MHz, ensuring precise measurements for your needs.

One of the standout features of this handheld frequency analyzer is its switchable resolution bandpass filters. These filters allow users to select between 2.6kHz and 640kHz, providing flexibility in analyzing different signals. The color display showcases 290 scan points, giving you a comprehensive view of the frequency spectrum, whether you are working in the low or high frequency range.

In addition to its spectrum analysis capabilities, the TinySA also functions as a signal generator. When not in use as an analyzer, it can generate MF/HF/VHF sinusoidal outputs between 0.1MHz and 350MHz, as well as UHF square wave outputs from 240MHz to 960MHz. This dual functionality makes it an invaluable tool for testing and troubleshooting.

The built-in calibration signal generator ensures that the device remains accurate over time. It is used for automatic self-testing and low input calibration, which is essential for maintaining the integrity of your measurements. The tiny spectrum analyzer is equipped with a rechargeable battery that provides at least 2 hours of portable use, making it convenient for fieldwork.

Another significant improvement in the latest version is the ESD protection function. This feature enhances the device's antistatic level, ensuring a longer service life and greater reliability. The TinySA can also be connected to a PC via USB, transforming it into a PC controlled spectrum analyzer. This connection allows for advanced measurements and settings adjustments through a user-friendly interface.

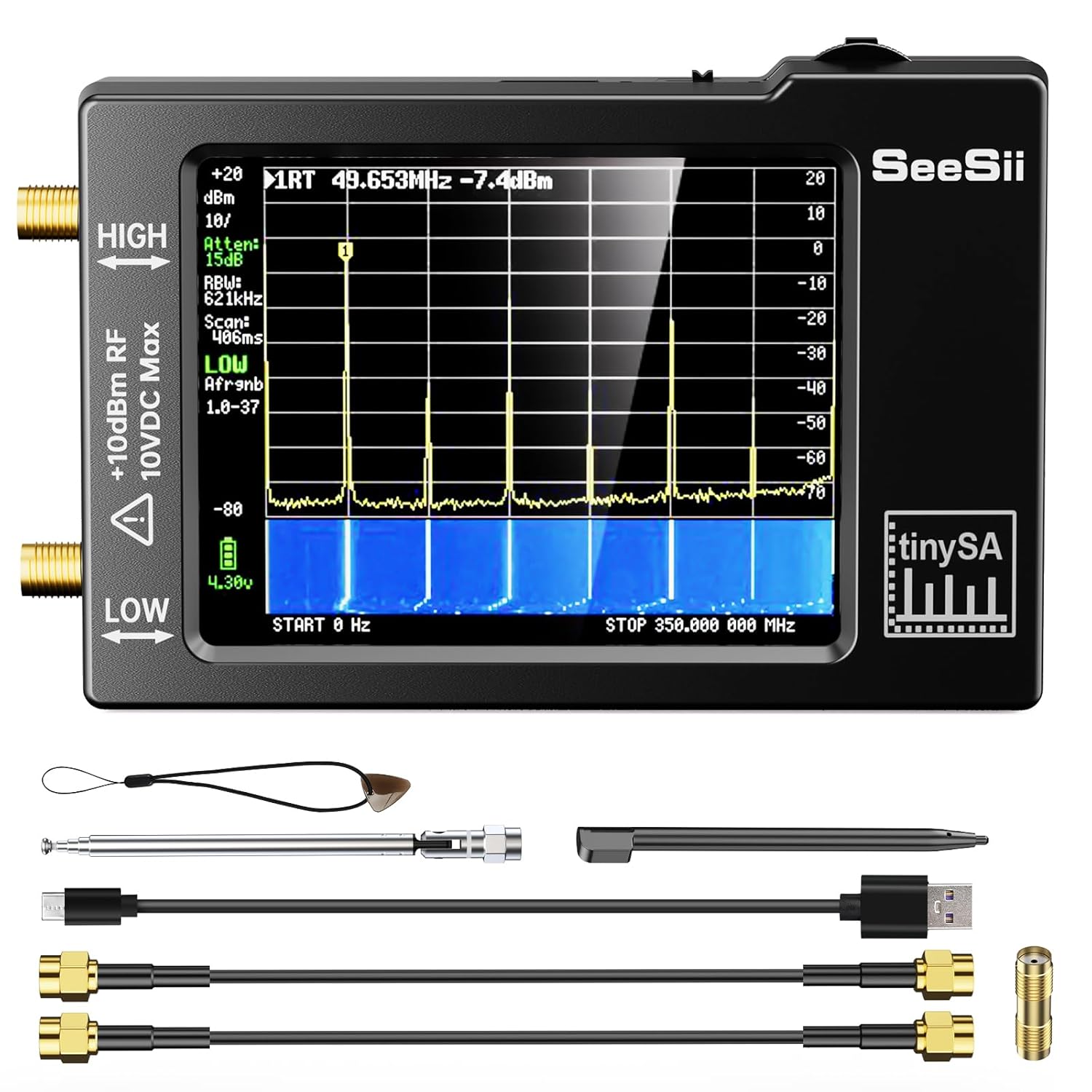

The package includes everything you need to get started: 1 Tiny Spectrum Analyzer, 2 RF cables, 1 USB cable, 1 SMA female to female connector, 1 touchscreen pen, and 1 SMA telescopic antenna. This comprehensive package makes it easy to set up and use without the need for complicated calibration.

Whether you are an amateur radio enthusiast or a professional engineer, the Portable TinySA Spectrum Analyzer is a must-have tool for your arsenal. Its versatility, ease of use, and advanced features make it an excellent choice for anyone looking to analyze and generate signals effectively.
