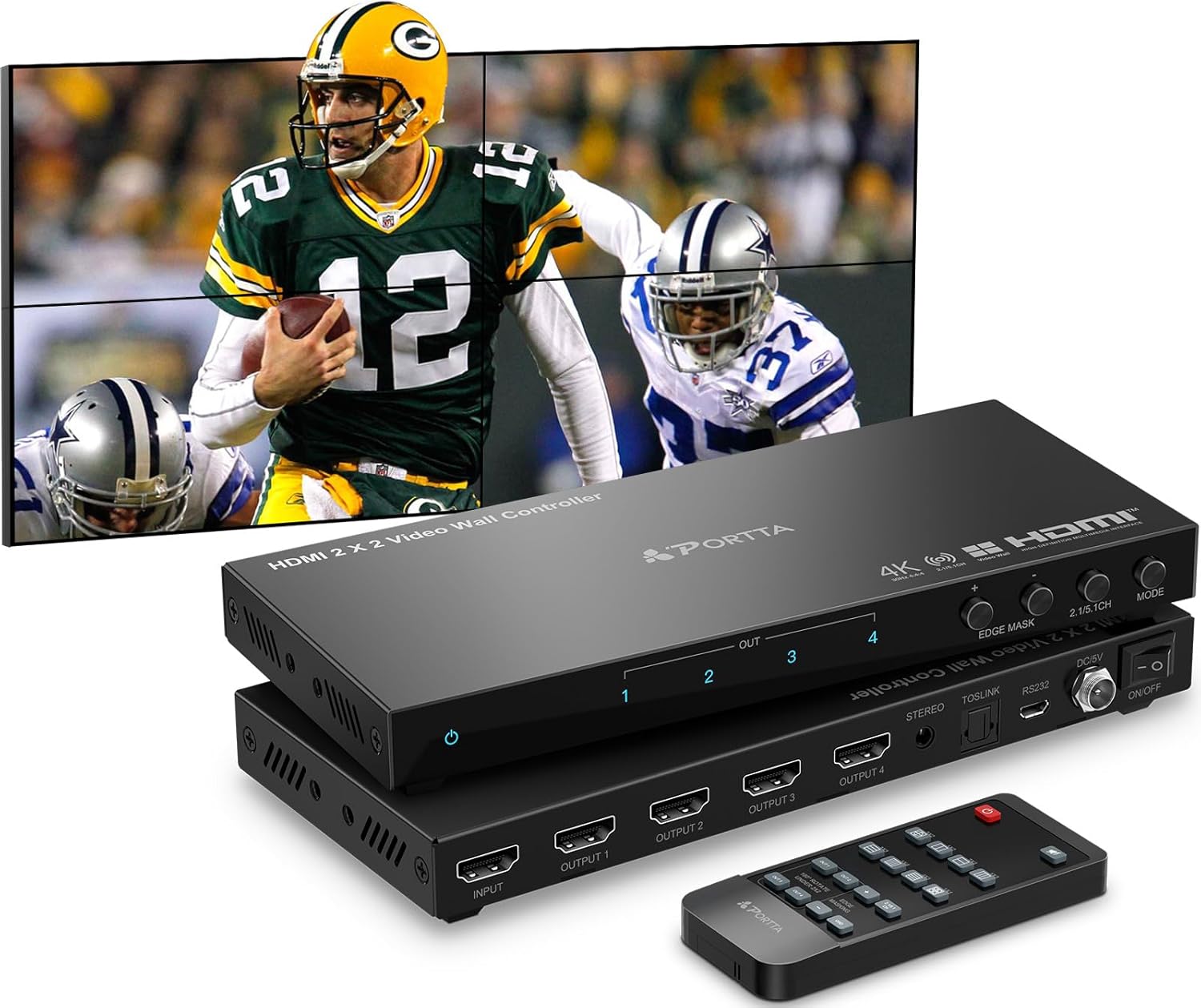

PORTTA HDMI Video Wall Controller 2x2 4K - Flexible 8-Mode Processor

In this review the PORTTA HDMI Video Wall Controller 2x2 4K is evaluated for small-scale digital signage and multi-screen displays where a single HDMI source must drive four screens. The bottom line: it is a practical, budget-friendly video wall processor for shops, lobbies, and event booths that need straightforward splitting and common video wall layouts. The single biggest reason to buy is its combination of multiple display modes and simple control options, which make it useful when you need a reliable 1-in to 4-out solution without complex configuration.

Key Features

• 8 display modes: Lets a single HDMI input be arranged as 2x2, 1x2, 2x1, 1x3, 3x1, 1x4, 4x1 or used as a 1x1 splitter so setups can match the physical screen layout.
• 4K input with 1080p outputs: Accepts up to 4K 30Hz input and outputs four fixed 1080p 60Hz signals, which keeps output compatibility broad for HDTVs and monitors.
• Control flexibility: Switch between modes with the front panel, included IR remote, or RS232 control for integration into automation systems.
• Rotation and edge masking: Individual screen images can be rotated 180 degrees and edges masked by up to 8 pixels to reduce visible seams and improve perceived alignment in tiled walls.
• Audio extraction: Provides Toslink optical and 3.5mm analog audio outputs so audio can be routed separately from the HDMI video feeds.

Who It's For

The PORTTA controller is best for small businesses, event coordinators, and installers who need a simple hardware solution to distribute one HDMI source across four displays or create common video wall layouts without expensive processors. It is especially useful where displays are native 1080p and a 4K source must be downscaled across multiple outputs.

Those who need native 4K on each output, professional color calibration tools, or large multi-device matrix switching should look elsewhere; this unit fixes outputs at 1080p 60Hz and focuses on practical, entry to mid-level digital signage tasks rather than high-end broadcast work.

Pros & Cons

Pros

• Flexible layout options let installers adapt to different screen arrangements without rewiring signal sources.
• Multiple control methods (manual, IR, RS232) make it easy to operate in standalone or integrated setups.
• Rotation and edge masking help reduce visible seams and improve final image appearance on tiled displays.
• Includes Toslink and 3.5mm audio extraction for separate audio routing.

Cons

• Output resolution is fixed at 1080p 60Hz, so it will not provide native 4K on each display.
• Some customers reported mixed results with picture quality and connectivity in specific setups, so compatibility testing is recommended before deployment.

Specifications

Input	1 x HDMI (up to 4K 30Hz)
Outputs	4 x HDMI (fixed 1080p 60Hz)
Display modes	2x2, 1x2, 2x1, 1x3, 3x1, 1x4, 4x1, 1x1 splitter
Rotation	Per-screen 180 degree rotation in 2x2 mode
Edge masking	Adjustable up to 8 pixels
Audio extraction	Toslink (5.1 CH) and 3.5mm (2.0 CH)
Control	Front panel, IR remote, RS232

Our Verdict

The PORTTA HDMI Video Wall Controller 2x2 4K is a sensible, cost-effective choice for straightforward 4-screen video walls and split displays where outputs at 1080p are acceptable. Installers will appreciate the multiple layout modes, rotation, and edge masking for cleaner seams, while the included remote and RS232 options make integration practical. It represents good value for businesses seeking reliable functionality without premium pricing.

Frequently Asked Questions

Can the unit output 4K to each screen?
No, outputs are fixed at 1080p 60Hz while the device accepts up to 4K 30Hz input.

How can I control the device remotely?
You can use the included IR remote or integrate via RS232 control for remote operation.

Does it extract audio separately from HDMI?
Yes, it offers Toslink optical output (5.1 CH) and a 3.5mm analog output (2.0 CH) for audio extraction.
