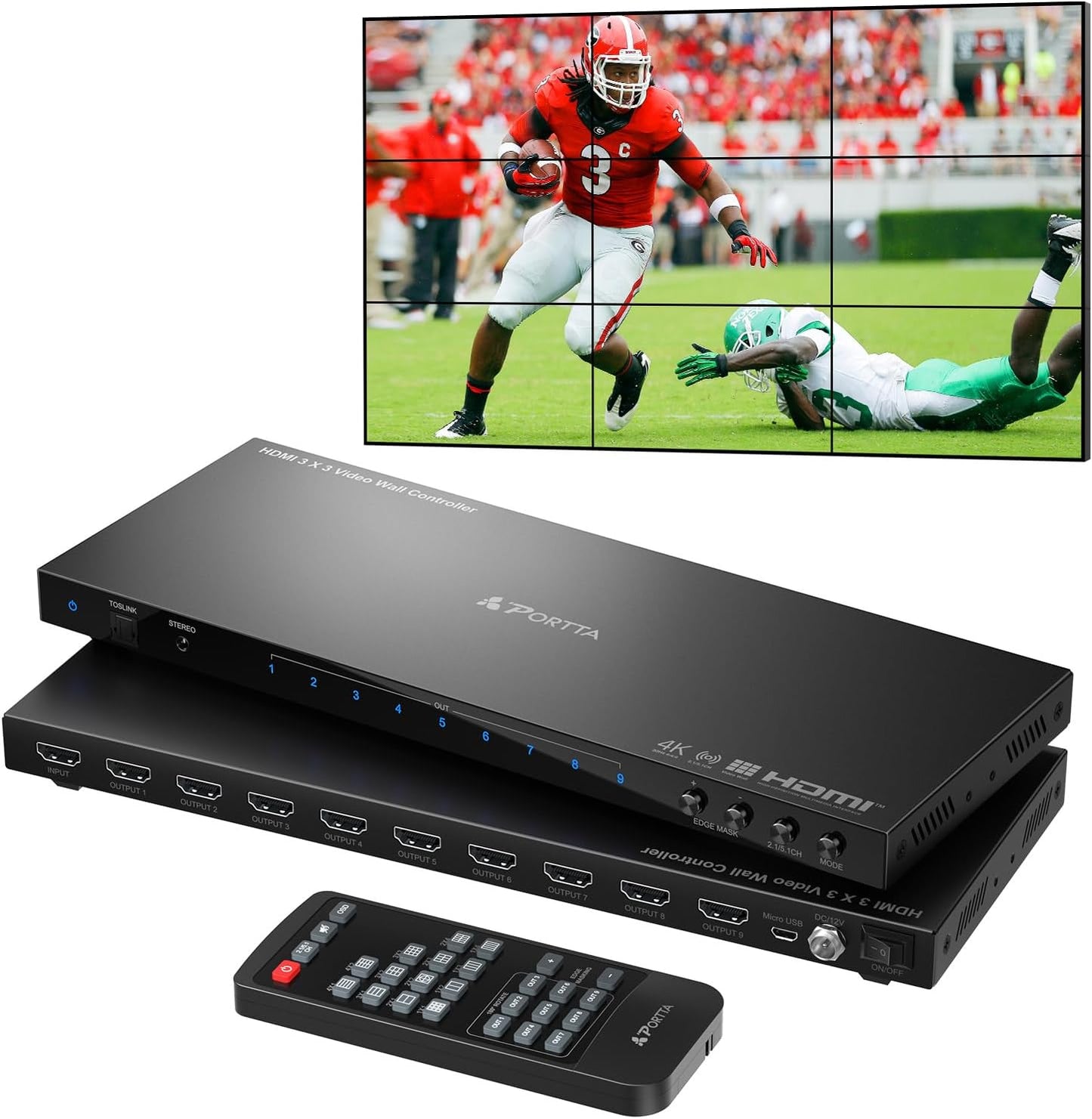

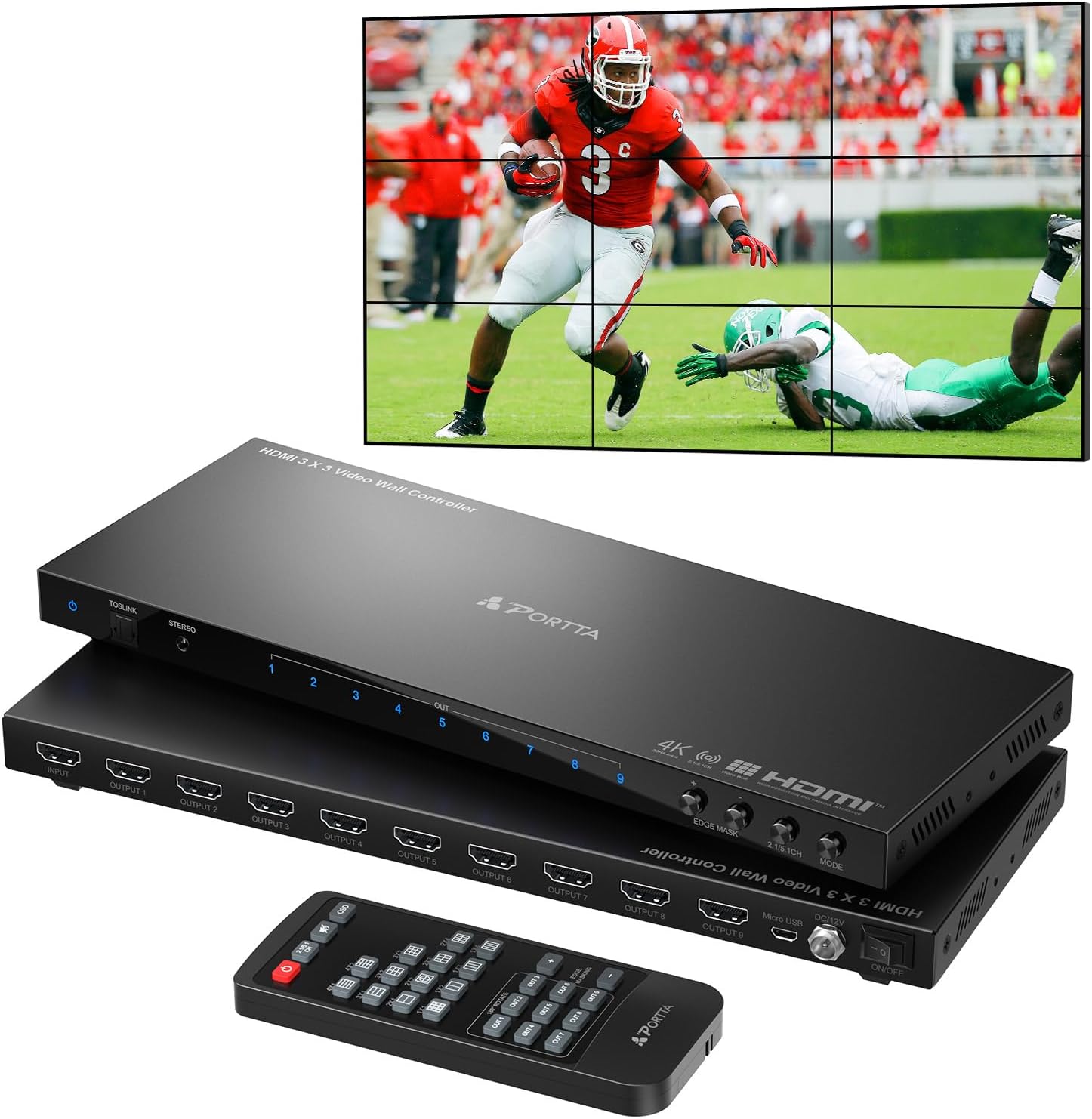

PORTTA Video Wall Controller 3x3 4K - 19 Modes for 9-Screen Walls

In this review of the PORTTA Video Wall Controller 3x3 4K, the bottom line is clear: this unit is aimed at small commercial video wall installations that need flexible layout options and reliable distribution from a single HDMI source. It stands out because it supports 19 display modes and distributes one 4K 30Hz input across nine HDMI outputs at fixed 1080p 60Hz, making it a practical choice for advertising, digital signage, and control-room style displays where easy setup and multiple composition options matter.

Key Features

• 19 Display Modes: Offers a wide range of composition and splitter layouts so installers can build 3x3, horizontal, vertical and PC portrait arrangements without extra processors.
• 4K 30Hz Input: Accepts a 4K 30Hz HDMI source while delivering consistent 1080p 60Hz outputs for each of the nine screens to ensure compatibility with most monitors.
• Multiple Control Options: Configure the unit manually, with the included IR remote, or integrate it into automation via RS232 for more advanced setups.
• Audio Extraction: Provides Toslink 5.1 CH and 3.5mm 2.0 CH audio outputs so audio can be routed separately from the HDMI video distribution.
• Rotation and Edge Masking: Per-screen 180 degree rotation in most modes and 8-pixel edge masking help reduce visible seams and improve the stitched image appearance.
• Accessory Package: Ships with an IR remote, power adapter, mounting ears and a user manual plus a two-year warranty and lifetime support for peace of mind.

Who It's For

This device is well suited to retailers, small venues, digital signage integrators, and businesses that want to drive a 3x3 video wall from a single HDMI feed while retaining flexible layout options. The simple controls and bundled remote make it approachable for teams without deep AV programming skills.

Those who need native 4K across every screen, extremely high-end image fidelity, or complex scaling for mixed-resolution displays should look at higher-end processors. Also, if your setup relies on a splitter mode with special rotation in 1x1, be aware that 180 rotate and edge masking are not available in the 1x1 splitter mode.

Pros & Cons

Pros

• Wide selection of presets and composition modes that simplify layout changes for different content.
• Reliable 1080p 60Hz outputs from a 4K source, keeping displays in sync for most signage applications.
• Handy audio extraction options and RS232 control for integration with existing AV systems.
• Rotation and edge masking tools that improve the visual join between bezels in multi-screen arrays.

Cons

• Output resolution is fixed at 1080p 60Hz for all nine outputs, so this is not a true per-screen 4K solution.
• Some customers reported mixed picture quality and occasional connectivity issues with certain sources, so compatibility testing is recommended before deployment.

Specifications

Model Type	HDMI 3x3 Video Wall Controller
Input	1 x HDMI (supports 4K 30Hz)
Outputs	9 x HDMI (fixed 1080p 60Hz)
Display Modes	19 modes including 3x3, splitters, horizontal/vertical and PC portrait
Audio Output	Toslink 5.1 CH and 3.5mm 2.0 CH
Control	manual, IR remote, RS232
Special Features	180 rotation (modes 1-12) and 8-pixel edge masking

Our Verdict

The PORTTA 3x3 video wall controller is a practical, cost-effective choice for businesses that need to drive nine 1080p screens from a single 4K source with flexible layout options and simple control methods. It offers good value for digital signage and small installations where per-screen 4K is not required, though installers should confirm source compatibility to avoid the occasional picture or connectivity issue.

Frequently Asked Questions

Can this unit output 4K to each screen?
The nine HDMI outputs are fixed at 1080p 60Hz; the device accepts a 4K 30Hz input but does not provide 4K per output.

How can the controller be managed remotely?
It supports IR remote control for local use and RS232 for integration with automation systems or remote control.

Does it include everything needed for installation?
Yes, the package includes the controller, IR remote, power adapter, mounting ears and a user manual, plus a two-year warranty and lifetime technical support.
