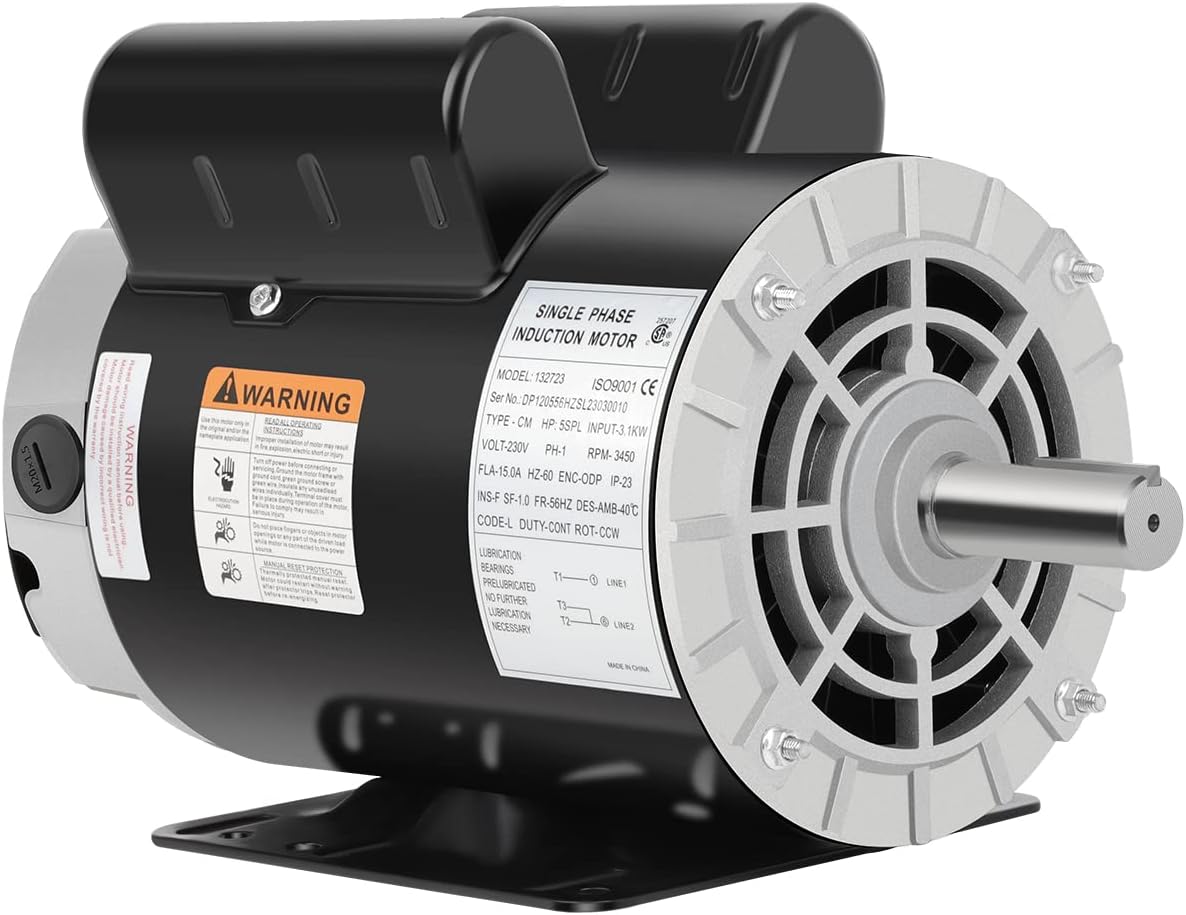

5 HP SPL Air Compressor Motor 3450 RPM 230V Single Phase - Commercial

In this review of the 5 HP SPL Air Compressor Motor, the bottom line is straightforward: this motor is built for workshop and light industrial users who need a compact, high-speed replacement motor for single-phase air compressors. The review finds the unit useful for systems that require a 3450 RPM, 230V motor with continuous S1 duty and a rugged rolled steel shell. Buyers seeking reliable, high-efficiency operation in relatively clean, dry environments will appreciate its design; those needing weatherproof or three-phase motors should look elsewhere.

Key Features

• Power: The 5 HP SPL rating provides strong torque for medium-duty compressor applications, helping compressors recover pressure faster under load.
• Speed and compatibility: Rated at 3450 RPM and 230V single phase, the motor matches many common compressor specifications for straightforward replacement installations.
• Frame and shaft: A 56HZ frame with a 7/8' keyed shaft and 2.25' shaft length offers a solid mechanical interface for pulleys or couplings used on compressor pumps.
• Construction: The heavy rolled steel shell and open drip-proof enclosure keep the motor compact and durable for clean, dry shop environments while providing good mechanical protection.
• Cooling and duty: Multiple heat dissipation openings, an F insulation class, and S1 continuous duty rating support sustained operation at rated load.
• Protection and rotation: The motor includes a protector and is built for CCW rotation, matching common compressor pump orientations.

Who It's For

This motor is best suited for mechanics, hobbyists, and small shop owners replacing or upgrading single-phase air compressor drives where a compact, high-revving 3450 RPM motor is required. It is also appropriate for light commercial settings that maintain relatively clean, dry indoor spaces and need continuous-duty performance.

It is not ideal for outdoor, wet, or highly dusty conditions because the ODP (open drip-proof) and IP23 rating assume cleaner environments. Customers who need three-phase power, higher ingress protection, or a weatherproof enclosure should consider other motor types.

Pros & Cons

Pros

• Robust rolled steel housing gives the motor a durable feel and long service life in proper environments.
• High working efficiency at 3450 RPM helps maintain compressor performance and reduces downtime between cycles.
• Includes protector and is tailored for compressor use, simplifying matching to many compressor pumps.
• Compact 56HZ frame and keyed 7/8' shaft make mounting and coupling straightforward.

Cons

• Open drip-proof (ODP) design and IP23 rating limit use to relatively clean, dry indoor locations rather than exposed or wet sites.
• Single-phase 230V limits this motor to systems with that supply; shops with three-phase infrastructure will need a different model.

Specifications

Brand	Cuilvu
Horsepower	5 HP SPL
Speed	3450 RPM
Voltage	230V single phase
Frame	56HZ
Shaft	7/8' keyed diameter, 2.25' length
Enclosure	ODP (Open drip-proof), IP23

Our Verdict

The Cuilvu 5 HP SPL 3450 RPM motor is a practical, value-oriented choice for anyone needing a continuous-duty replacement motor for single-phase air compressors in clean, indoor shops. Its heavy rolled steel shell, cooling design, and protector make it reliable for steady compressor duty, while the 7/8' keyed shaft and standard frame simplify installation. Choose this motor if you run a 230V compressor and need dependable performance, but select a sealed or three-phase model if you require outdoor use or different power.

Frequently Asked Questions

Is this motor suitable for continuous compressor use?
Yes. It is rated for S1 continuous duty and is designed to run continuously at rated load when used in appropriate indoor environments.

What environment is this motor intended for?
The motor is ODP with an IP23 rating and is best used in relatively clean, dry indoor areas rather than wet or highly dusty outdoor locations.

What are the electrical requirements?
The motor requires a 230V single-phase supply and draws about 15-16 amps depending on load; confirm compatibility before installation.
