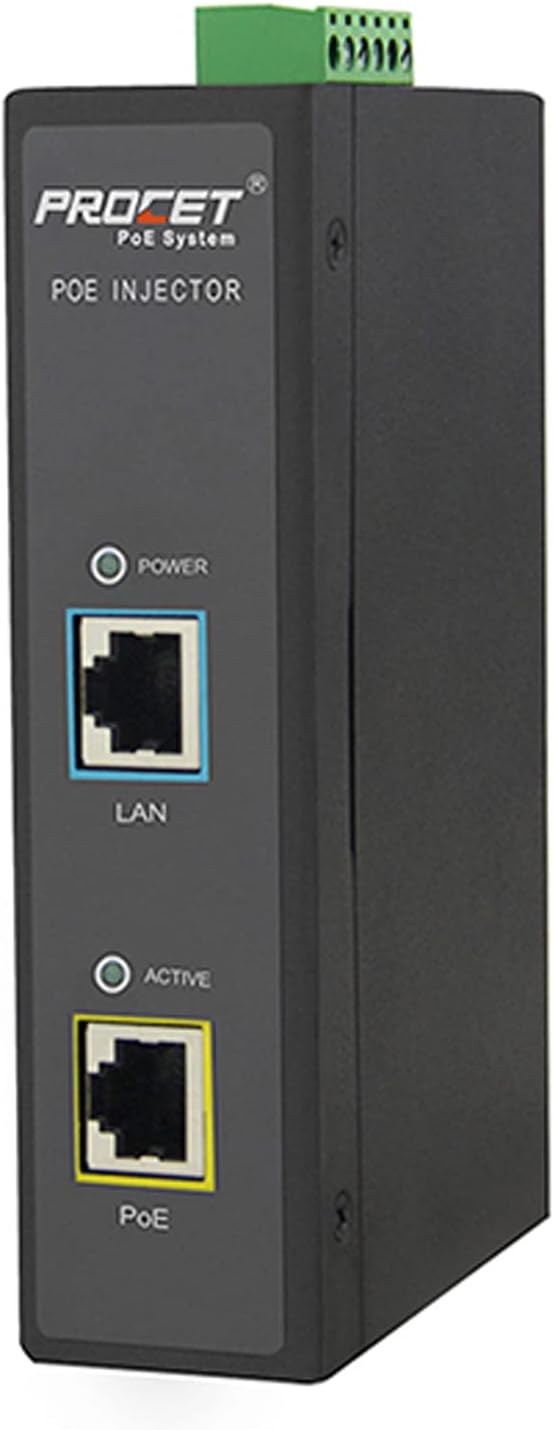

PROCET PoE++ 95W PoE Injector DIN Rail - High Power Industrial

In this review the PROCET PoE++ 95W PoE Injector DIN Rail (PT-PSE105GWH-E) is evaluated as a purpose-built solution for industrial and outdoor networking installations that need high-power PoE from DC sources, including solar. The single biggest reason to buy is straightforward: it delivers up to 95W of PoE++ power from a flexible 12 V to 55 V DC input while including industrial features like 6KV surge protection and wide operating temperature range for reliable deployment in harsh environments.

Key Features

• Wide DC Input: Accepts 12 V to 55 V DC input so it can be powered from batteries or solar arrays for off-grid or backup setups.
• High Power Output: Supplies DC 48-55 V at up to 1.75 A for a total of 95W, enabling power-hungry PoE++ devices without a separate power source.
• Active PoE Negotiation: Built-in detecting chip auto-negotiates IEEE 802.3af/at/PoE++ PDs to ensure compatible devices receive correct power levels.
• 6KV Surge Protection: PoE port surge protection defends connected equipment against over voltage, over current and short circuit events in industrial environments.
• Gigabit Data Support: Supports 10/100/1000 Mbps transmission and an effective distance up to 328 ft for typical Ethernet runs in installations.

Who It's For

This injector is aimed at network installers, industrial automation engineers and integrators deploying high-power PoE cameras, wireless APs or edge devices where AC mains may be unavailable or where solar power is used. The DIN rail form factor and wide operating temperature make it suitable for control cabinets, remote sites and outdoor enclosures that require rugged components.

Those who need simple desktop PoE for home office devices or low-power PoE endpoints should look elsewhere, since this unit is optimized for higher power and industrial mounting rather than compact consumer convenience.

Pros & Cons

Pros

• Provides up to 95W PoE++ from a wide 12 V to 55 V DC range, ideal for solar or battery-fed systems.
• Active negotiation with IEEE 802.3af/at/PoE++ devices ensures proper power delivery and compatibility.
• 6KV surge protection on the PoE port improves resilience in electrical storm or industrial noise environments.
• Supports gigabit speeds and standard Ethernet distances for high-bandwidth devices.

Cons

• Industrial DIN rail format and DC input focus make it less convenient for basic consumer desktop use.
• Requires compatible PoE++ PDs to take full advantage of the 95W output; lower-power devices will not use the full capacity.

Specifications

Model	PT-PSE105GWH-E
Brand	PROCET PoE System
Input	12 V to 55 V DC (solar powered supported)
PoE Output	DC 48-55 V, 1.75 A total, 95W
PoE Standard	Auto-negotiates IEEE 802.3af/at/PoE++
Surge Protection	PoE port 6KV surge protection
Data Speed	10/100/1000 Mbps, effective distance up to 328 ft

Our Verdict

The PROCET PoE++ 95W DIN rail injector is a strong choice for industrial and remote network deployments that need high-power PoE from DC sources. It pairs flexible 12 V to 55 V input and active PoE++ negotiation with practical protections like 6KV surge defense, delivering good value for installers who require rugged, high-wattage PoE in challenging environments.

Frequently Asked Questions

Can this injector run from solar or battery systems?
Yes, it accepts 12 V to 55 V DC input so it can be used with solar arrays or battery-fed systems when sized correctly.

What protection does it provide for connected devices?
The PoE port includes 6KV surge protection and safeguards against over voltage, over current and short circuit on the output.

Does it support gigabit Ethernet and long cable runs?
Yes, it supports 10/100/1000 Mbps and an effective Ethernet distance of about 328 ft for standard installations.
