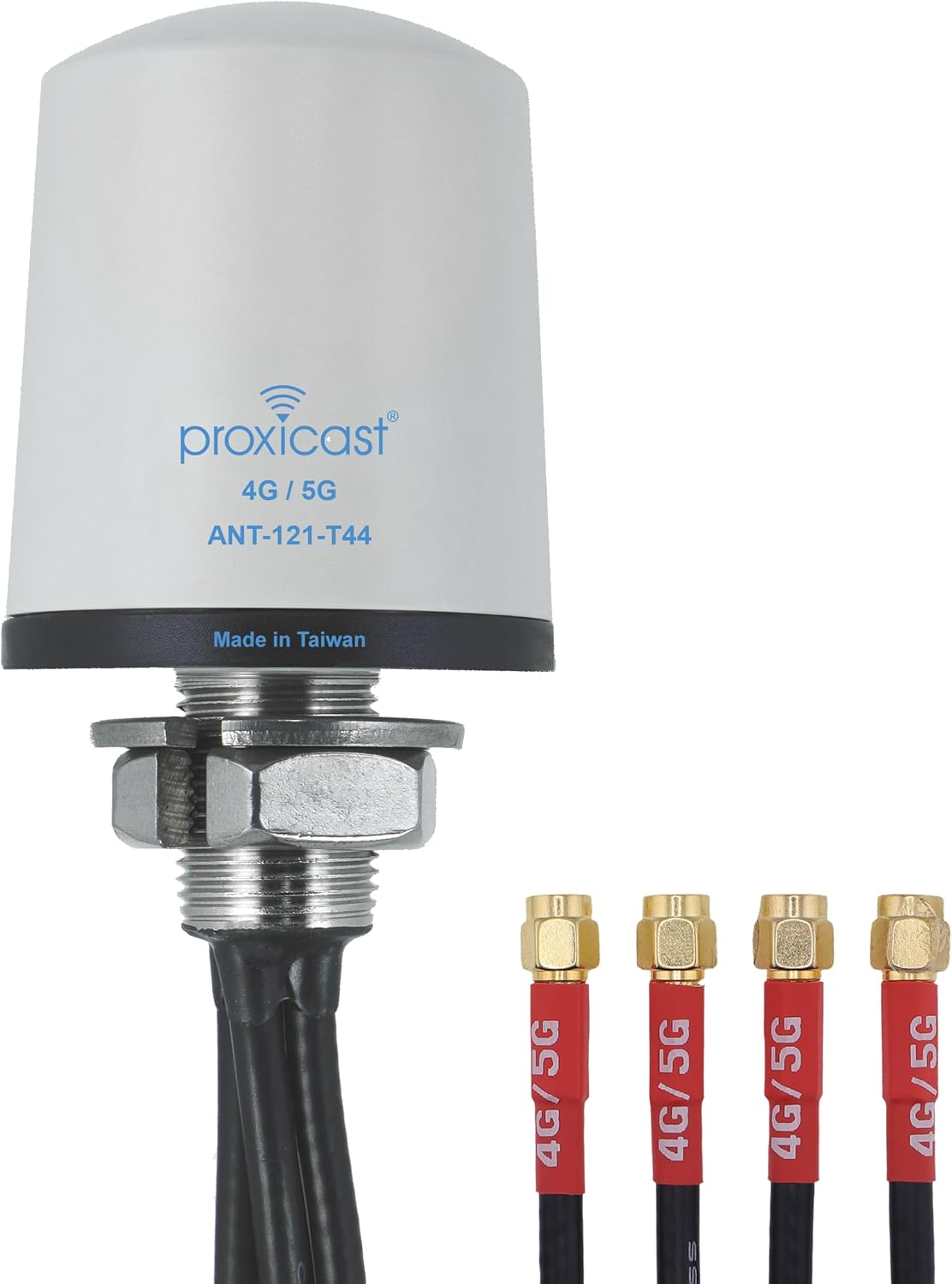

Proxicast 4x4 MIMO 5G Vandal Resistant Low Profile Antenna

In this review the Proxicast 4x4 MIMO 5G antenna is evaluated as a compact, durable external antenna for cellular routers and modems. The bottom line: it is aimed at installers and IT teams who need a small, vandal-resistant omnidirectional antenna that covers all sub-6 GHz bands and keeps cabling protected. The reviewer found the low profile 2.4 in radome, integrated SMA male connectors and IP67 sealing to be the single biggest reasons to choose this antenna for kiosks, security cameras, and industrial routers where a neat, tamper-resistant installation matters.

Key Features

• Low profile design: The 2.4 in tall radome keeps the antenna unobtrusive while still delivering 3-5 dBi of gain for better cellular reception in tight locations.
• 4x4 MIMO omnidirectional: Four identical isolated elements provide multi-antenna diversity and broad coverage across indoor and outdoor deployments.
• Wide frequency coverage: Covers sub-6 GHz cellular bands from 600 to 6000 MHz so it works with 4G/LTE and 5G FR1 networks worldwide.
• Vandal resistant build: A high impact polycarbonate shell, thick stainless steel mounting post and hidden cabling minimize the risk of tampering in public installs.
• Weatherproof rating: IP67 sealing allows use in exposed outdoor locations without worry of water ingress.
• Low-loss cabling: Integrated double-shielded CFD195 coax with gold-plated SMA male connectors reduces signal loss compared with thinner coax types.

Who It's For

The antenna suits technicians, site integrators and fleet installers who need a reliable 4x4 MIMO external antenna for devices from vendors such as Cisco, Cradlepoint, Digi and Sierra Wireless. It is especially useful for fixed installations like kiosks, POS terminals, digital signage, and security camera systems where a flush, tamper-resistant mount and all-band cellular coverage are priorities.

It is not aimed at casual home users who only need a single small antenna or at installations that require roof- or mast-mounted directional antennas for long-range links; those buyers should consider higher-gain directional or pole-mount models instead.

Pros & Cons

Pros

• Compact 2.4 in profile that blends into equipment enclosures and keeps a low visual footprint.
• Robust vandal-resistant construction and IP67 sealing make it suitable for unattended public or outdoor sites.
• Four isolated omnidirectional elements and broad 600-6000 MHz coverage support modern 4G/5G multi-antenna routers.
• Integrated thick CFD195 low-loss coax and gold-plated SMA male connectors reduce signal degradation.

Cons

• Fixed through-hole screw mount requires a 7/8 in (20 mm) hole and internal access to fit the nut, which may complicate some retrofits.
• With modest 3-5 dBi gain it is not intended for long-distance point-to-point range gains where directional antennas are needed.

Specifications

Model	ANT-121-T44 (Proxicast)
Form factor	Low profile through-hole screw mount
Height	2.4 in
Gain	3-5 dBi (omni)
Frequency range	600-6000 MHz (sub-6 GHz)
Cabling and connectors	2 ft CFD195 double-shielded coax with SMA male
Ingress protection	IP67, vandal resistant housing

Our Verdict

The Proxicast 4x4 MIMO low profile antenna is a sensible choice for installers who need all-band cellular coverage in a compact, tamper-resistant package. It delivers reliable multi-antenna performance and low-loss cabling for routers and modems in kiosks, security systems and industrial sites. While not a long-range directional solution, it is good value for deployments that prioritize durability, neat mounting and broad 4G/5G band compatibility.

Frequently Asked Questions

Will this antenna work with my router?
If your router or modem has SMA female cellular antenna ports it is compatible; the antenna ships with SMA male plugs to mate directly with most devices from Cisco, Cradlepoint, Digi and similar vendors.

Can it be used outdoors?
Yes; the antenna is IP67 weatherproof and built with a high impact radome and stainless steel hardware for outdoor and exposed site use.

Does the cable expose outside the enclosure?
No; the through-hole screw mount design hides the cabling and prevents exposed external cables, which increases vandal resistance.
