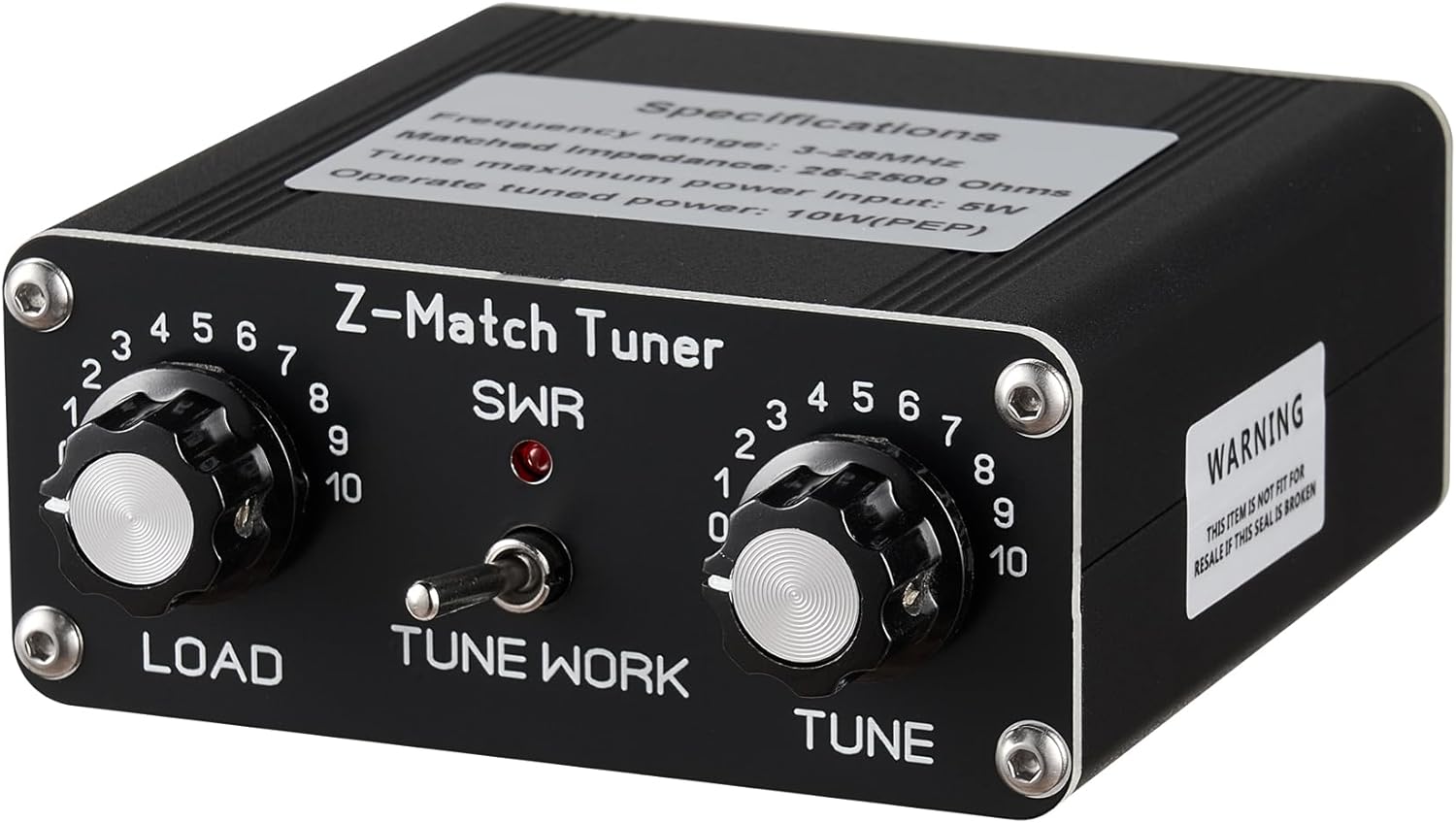

QRP Z-Match Manual Antenna Tuner 3-28 MHz - Compact QRP Match

In this review of the QRP Z-Match Manual Antenna Tuner, the bottom line is simple: it is a compact, efficient tool for low-power HF operators who need flexible impedance matching across 3 to 28 MHz. The tuner is aimed squarely at QRP enthusiasts and portable operators using uSDX-style transceivers or other low-power rigs, and the single biggest reason to buy is the Z-match topology that delivers high Q and lower loss than many alternatives while covering a wide 25 to 2500 ohm matching range.

Key Features

• Wide compatibility: Works with coax-fed, long wire and balanced line antennas so operators can tune a variety of simple field antennas without extra adapters.
• Low-power rating: Rated 5 watts continuous and 10 watts intermittent, making it suitable for true QRP operation and cautious intermittent transmissions.
• BNC connectors: Supplied with BNC input and output connectors for easy hookup to common QRP transceivers and short coax runs.
• Compact metal housing: Small size and sturdy metal case make it practical for portable use and tougher outdoor conditions.
• High Q Z-match design: The Z-match topology provides more efficient matching with less loss compared with some other tuner types, improving effective radiated power at low drive levels.
• Visible SWR indicator: Built-in standing wave LED gives a direct visual cue for tuning before transmitting to protect QRP rigs without robust SWR protection.

Who It's For

This tuner is best for QRP operators, portable field hams, and experimenters who run 5 W or less and need a lightweight, reliable way to match antennas across 3-28 MHz. It pairs well with small transceivers and ladder line or long-wire antennas where a simple manual match is preferred to heavier automatic tuners.

Those who should look elsewhere include operators who run higher power, expect automatic remote tuning, or need an internal tuner for a base station with large coax runs; the 5 W continuous rating and manual controls limit use to low-power, hands-on setups.

Pros & Cons

Pros

• Compact, metal-bodied construction that survives portable use and handles everyday field handling.
• Efficient Z-match topology that tends to be less lossy, giving better performance on low-power setups.
• Wide matching range from 25 to 2500 ohms and frequency coverage across 3-28 MHz for versatile antenna choices.
• Simple front-panel LED SWR indicator and BNC connectors for quick setup with common QRP transceivers.

Cons

• Solder quality and assembly have mixed reports, so buyers should inspect critical joints; minor workmanship issues were noted by some customers.
• Not suitable for more than QRP-level power; excessive input can damage components.

Specifications

Frequency range	3-28 MHz
Rated power	5 W continuous, 10 W intermittent
Matching impedance range	25 to 2500 ohms
Connectors	BNC input and output
Net weight	250 g
Size	88 x 83 x 38 mm (excluding protruding parts)

Our Verdict

The QRP Z-Match Manual Antenna Tuner is a sensible buy for portable and low-power operators who value a high Q, low-loss manual tuner that covers most HF bands from 3-28 MHz. It offers good value for QRP use thanks to metal construction, a broad impedance range and a clear SWR indicator, but prospective owners should accept manual operation and check assembly quality on arrival.

Frequently Asked Questions

Can this tuner be used with ladder line?
Yes; the tuner is compatible with balanced line such as 40m-10m ladder line as well as coax-fed and long wire antennas.

What power levels are safe?
Use up to 5 W continuous and up to 10 W intermittent; exceeding those limits risks burning out components.

Does it include a SWR indicator?
Yes; a standing wave LED on the front panel indicates relative SWR to guide tuning before transmitting.
