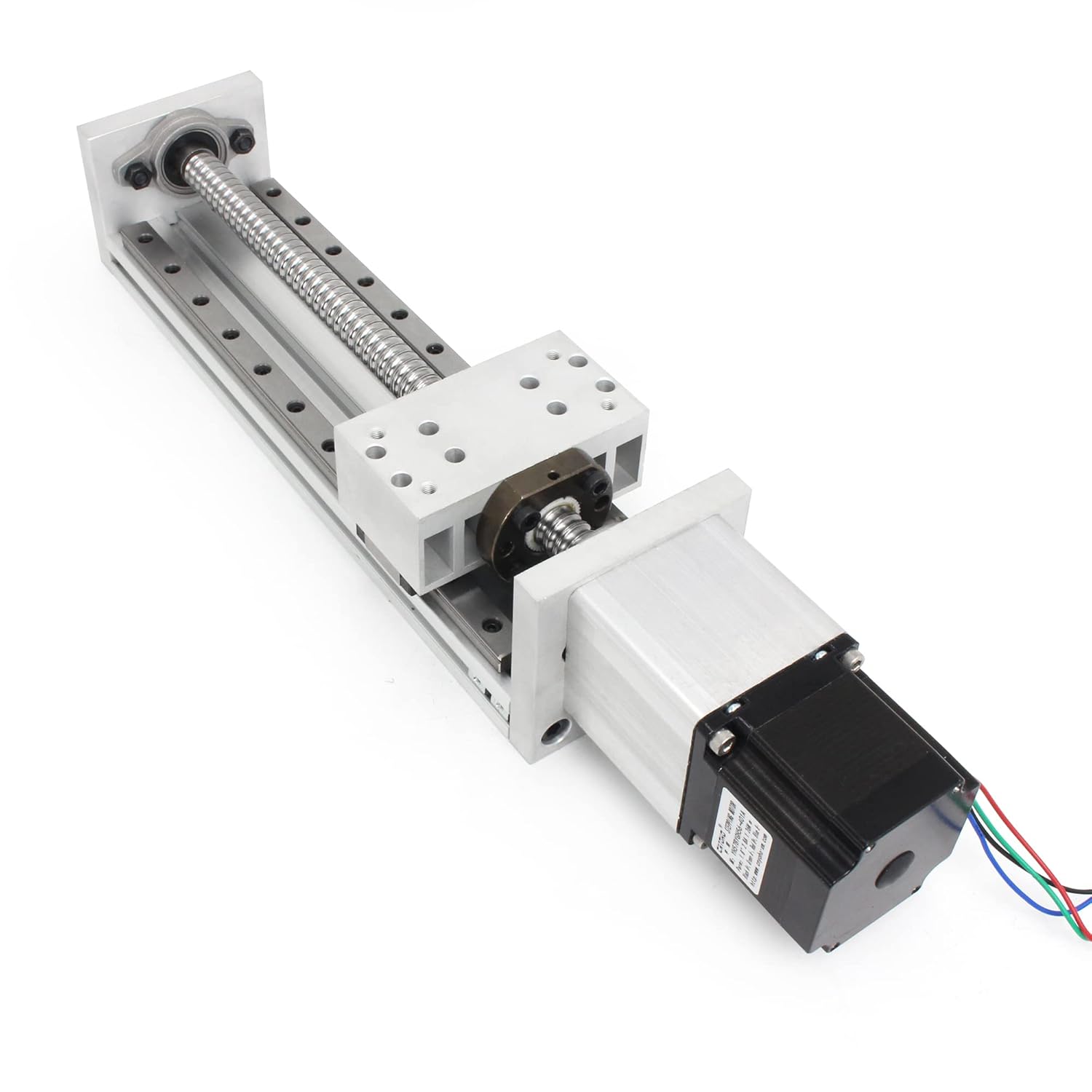

RATTMMOTOR ZBX80 600mm CNC Linear Motion Actuator - Precision Stroke

In this review the RATTMMOTOR ZBX80 600mm linear motion actuator is assessed for machine builders and hobbyists who need a rigid, long-stroke X/Y/Z slide with integrated drive. The bottom line: this actuator stands out for its combination of a 600mm effective stroke and a sturdy aluminum alloy construction, making it a strong choice where horizontal loads up to 80KG and repeatable, screw-driven positioning are required. It is a practical option for CNC retrofitters who prioritize mechanical quality and a built-in Nema23 stepper motor over compactness.

Key Features

• 600mm Effective Stroke: Provides a long travel of 600mm (23.62 in) that suits larger routing and positioning tasks without extra joins.
• High Load Capacity: The slide supports up to 80KG horizontally and 20KG vertically so it handles moderate workpiece weights and tooling setups.
• Precision Ballscrew: A chrome-plated bearing steel ballscrew increases surface hardness and improves load-bearing performance for consistent positional accuracy.
• Integrated Nema23 Motor: The included 57 x 57 x 56mm stepper (1.2 N.m, 1.8deg) simplifies installation and provides pulse control compatibility with common drivers.
• Rigid Aluminum Alloy Body: The 80mm-wide aluminum base and three-sided closed motor bracket reduce contamination and keep the slide structurally stable under load.
• Durable Coupling and Support: H7 tolerance coupling and motor support bracket maintain coaxial alignment and reduce wear on the screw and motor.

Who It's For

The ZBX80-600 is best suited for small to medium CNC machines, lab automation rigs, and retrofit projects where a built-in stepper and a long, stiff travel are beneficial. Builders who need to move heavier horizontal payloads or achieve reliable repeatability will find the combination of ballscrew and motor convenient.

It is less suitable for ultra-light desktop applications where size and weight must be minimized, or for systems requiring closed-loop servomotion out of the box; buyers needing higher torque steppers or custom motor types should consider separate motor and drive choices.

Pros & Cons

Pros

• Very solid construction and perceived quality, matching customer impressions of sturdiness and long-term reliability.
• Good load rating horizontally and a long effective stroke that reduces the need for multiple modules.
• Precision chrome-plated ballscrew and H7 coupling tolerances help maintain alignment and smooth motion.
• Integrated motor bracket and enclosed design reduce contamination and maintenance frequency.

Cons

• The unit is relatively large and not ideal for space-constrained desktop hobby machines.
• Stepper characteristics are fixed to the supplied Nema23; users wanting a different motor spec must swap components.

Specifications

Model	ZBX80-600mm
Material	Aluminum Alloy
Effective Stroke	600mm (23.62 in)
Horizontal Load Capacity	80KG (176.37 lb)
Vertical Load Capacity	20KG (44.09 lb)
Stepper Motor	Nema23 57 x 57 x 56mm, 1.2 N.m, 1.8deg
Total Length (with motor)	830mm (32.68 in)

Our Verdict

The RATTMMOTOR ZBX80-600mm is a solid, no-nonsense linear actuator for builders who need a long stroke and good horizontal load capacity with integrated stepper drive. Its hardened ballscrew, rigid aluminum body and built-in motor support make it a good value for retrofit CNCs and small automation rigs, though its size and fixed motor spec mean it is best chosen where those tradeoffs match the project requirements.

Frequently Asked Questions

Can this actuator handle heavy horizontal loads?
Yes, it is rated for up to 80KG horizontally, making it suitable for moderate workpiece weights.

What motor is included and what are its electrical needs?
The unit ships with a Nema23 hybrid stepper (57 x 57 x 56mm) rated about 1.2 N.m, with recommended voltage in the 12-36V range and typical use at 24V using pulse control drivers.

Is the ballscrew protected against wear?
The ballscrew is made from bearing steel and chrome-plated to increase hardness and improve load-bearing life, and the three-sided bracket helps reduce dust ingress.
